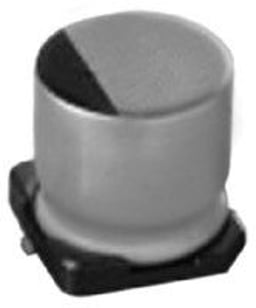

Nichicon UCM1C680MCL1GS
$ 0.141
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mouser | 647-UCM1C680MCL1GS | 1,603 | 1 | Tape & Reel | ||||||||
| TME | UCM1C680MCL1GS | 0 | 1K | 11h | ||||||||
| Newark | 44X4645 | 0 | 1K | Tape & Reel | ||||||||
| Arrow Electronics | UCM1C680MCL1GS | 0 | 1K | |||||||||
| TTI Europe | UCM1C680MCL1GS | 0 | 5K | Tape & Reel | 16h |
Inventory History
3 month trend: -30.85%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Datasheets & Documents
Download datasheets and manufacturer documentation for Nichicon UCM1C680MCL1GS.
CAD Models
Download Nichicon UCM1C680MCL1GS symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 0.141
$ 0.163
Stock
1,603
759,062
Authorized Distributors
6
6
Capacitance
68 µF
68 µF
Mount
Surface Mount
Surface Mount
Case/Package
SMD/SMT
Radial
Voltage Rating (DC)
16 V
16 V
Tolerance
20 %
20 %
ESR (Equivalent Series Resistance)
-
360 mΩ
Life (Hours)
2000 hours
2000 hours
Ripple Current
120 mA
156 mA
Height - Seated (Max)
6.096 mm
6.096 mm
Related Parts
PanasonicEEE-FK1C680P
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR FK 16V 68muF ±20% 0.248Dia 6.30mm
PanasonicEEE-FT1C680AR
Cap Aluminum 68uF 16V 20% (5 X 5.8mm) SMD 0.36 Ohm 240mA 2000h 105 C T/R
PanasonicEEE-FK1C680AP
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR FK 16V 68muF 卤20% 0.248Dia 6.30mm
Descriptions
Descriptions of Nichicon UCM1C680MCL1GS provided by its distributors.
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 68uF, Surface Mount, 2121
Low Impedance Chip Type, 68 μ F, 16 V, -55°C to 105°C, RoHS
Nichicon SCT
Smt - Small Chip/ Tp&reel |Nichicon UCM1C680MCL1GS
Capacitor lytic SMD CM Series 16V 68uF
RS APAC
Manufacturer Aliases
Nichicon has several brands around the world that distributors may use as alternate names. Nichicon may also be known as the following names:
- NICH
- NICHICON CORPORATION
- NICHI
- NICHIC
- NICHICON CORP
- NICHICON AMERICA
- NICHCON
- NICHICO
- NICHICON (AMERICA) CORP
- NICHCN
- NICHICON (HONG KONG) LIMITED
- NICHICON AMERICA CORPORATION
- NCH
- Nichicon Austria GMBH
- NICHICON (VA)
- nichicon (america) corpor
- Nichicon Batteries
- avx/nichicon
- 0202 NICHICON
- NICHICONCORPAMERI
- Nichicon Datasheet
- NICHICON (SINGAPORE) PTE LTD
- NICHICON (MC)
- UNITED CHEMI CON/Nichicon
- ICEL SRL
Inventory History
3 month trend: -30.85%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageSMD/SMT
Contact PlatingTin
MountSurface Mount
Number of Terminals2
Weight200.005886 mg
Technical
Capacitance68 µF
Impedance360 mΩ
Leakage Current10.88 µA
Life (Hours)2000 hours
Max Operating Temperature105 °C
Min Operating Temperature-55 °C
PolarityPolar
Ripple Current120 mA
Ripple Current (AC)240 mA
TerminationSMD/SMT
Tolerance20 %
Voltage16 V
Voltage Rating16 V
Voltage Rating (DC)16 V
Dimensions
Diameter5 mm
Height5.8 mm
Height - Seated (Max)6.096 mm
Lead Pitch1.3 mm
Length5.3 mm
Width5.3 mm
