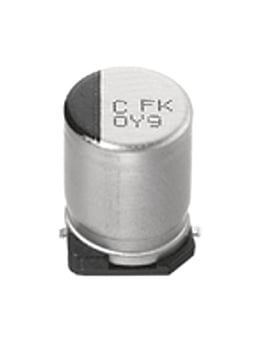

Panasonic EEE-FK1C680P
$ 0.112
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Future Electronics | 5028996 | 1,000 | 1K | Tape & Reel | ||||||||
| Onlinecomponents.com | EEE-FK1C680P | 4,000 | 1K | Bulk | ||||||||
| TME | EEEFK1C680P | 1,186 | 1 | 11h | ||||||||
| LCSC | C336742 | 45 | 5 | 22h | ||||||||
| Master Electronics | EEE-FK1C680P | 4,000 | 1K |
Inventory History
3 month trend: -15.25%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Datasheets & Documents
Download datasheets and manufacturer documentation for Panasonic EEE-FK1C680P.
CAD Models
Download Panasonic EEE-FK1C680P symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 SnapEDA | SymbolFootprint | Download | |
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 0.112
$ 0.166
$ 0.166
Stock
101,867
32,156
32,156
Authorized Distributors
6
6
6
Capacitance
68 µF
68 µF
68 µF
Mount
Surface Mount
Surface Mount
Surface Mount
Case/Package
SMD/SMT
SMD/SMT
SMD/SMT
Voltage Rating (DC)
16 V
16 V
16 V
Tolerance
20 %
20 %
20 %
ESR (Equivalent Series Resistance)
360 mΩ
260 mΩ
260 mΩ
Life (Hours)
2000 hours
2000 hours
2000 hours
Ripple Current
180 mA
195 mA
195 mA
Height - Seated (Max)
6.096 mm
5.7912 mm
5.7912 mm
Related Parts
PanasonicEEE-FT1C680AR
Cap Aluminum 68uF 16V 20% (5 X 5.8mm) SMD 0.36 Ohm 240mA 2000h 105 C T/R
NichiconUCM1C680MCL1GS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 68uF, Surface Mount, 2121
Descriptions
Descriptions of Panasonic EEE-FK1C680P provided by its distributors.
Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR FK 16V 68muF ±20% 0.248Dia 6.30mm
Cap Aluminum Lytic 68uF 16V 20% (6.3 X 5.8mm) SMD 240mA 2000h 105C Automotive T/R
Capacitor Aluminum 68uF 16VDC 20% 6.3 X 5.8mm SMD 240mA 2000 hr T/R
CAPACITOR;ALUMINUM ELECTROLYTIC;ECAP 68UF 16V D CASE FK SMT
68uF 16V 180mA@120Hz ±20% SMD,D6.3xL5.8mm Aluminum Electrolytic Capacitors - SMD ROHS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 68uF, Surface Mount, 2626
Aluminum Electrolytic Capacitors, 16V, 68µF, -55¡C to +105¡C, RoHS
Panasonic SCT
EEE-FK Series 16 V 68 uF Ø 6.3 x 5.8 mm 105 °C Low ESR SMT Electrolytic
CAP, 68µF, 16V, RADIAL, SMD REEL; AE Capacitor Case: Radial Can - SMD; Capacitance: 68µF; Voltage Rating: 16V; ESR: -; Product Range: FK Series; Lifetime @ Temperature: 2000 hours @ 105°C; Operating Temperature Min: -55°C; Oper
Manufacturer Aliases
Panasonic has several brands around the world that distributors may use as alternate names. Panasonic may also be known as the following names:
- PAN
- Panasonic Electronic Components
- PANASONI
- Panasonic Electric Works
- PANASON
- PANA
- PANAS
- PANASO
- PANSONIC
- Panasonic Industrial Automation Sales
- PANASONIC INDUSTRIAL
- Panasonic Industrial Devices
- PANASONIC BATTERIES
- PANASONIC CORPORATION
- PANASOINC
- PANASONIC CORP
- PANISONIC
- PANOSONIC
- MATSUSHITA PANASONIC
- PANASONC
- PANASOIC
- AROMAT CORP
- PEW
- PANASONIC/MATSUSHITA
- PANS
- Panasonic Industrial Devices
- Panasonic Corporation of North America
Inventory History
3 month trend: -15.25%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageSMD/SMT
Dielectric MaterialAluminium
MountSurface Mount
Number of Pins2
Number of Terminals2
Technical
Capacitance68 µF
Dissipation Factor0.16 %
ESR (Equivalent Series Resistance)360 mΩ
Impedance360 mΩ
Leakage Current10.9 µA
Life (Hours)2000 hours
Max Operating Temperature105 °C
Min Operating Temperature-55 °C
PackagingCut Tape
PolarityPolar
Ripple Current180 mA
Ripple Current (AC)240 mA
Schedule B8532220020
TerminationSMD/SMT
Tolerance20 %
Voltage16 V
Voltage Rating16 V
Voltage Rating (DC)16 V
Dimensions
Diameter6.3 mm
Height5.8 mm
Height - Seated (Max)6.096 mm
Lead Diameter650 µm
Lead Pitch1.8 mm
Length6.6 mm
Width6.6 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for Panasonic EEE-FK1C680P.
Compliance
Environmental Classification
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCYes
RoHSCompliant
