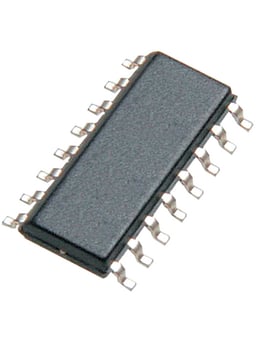

Texas Instruments SN74HCT138DR
$ 0.191
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rochester Electronics | SN74HCT138DR | 58,320 | 11h | |||||||||
| Verical | SN74HCT138DR | 54,964 | 2109 | |||||||||
| DigiKey | 296-14863-1-ND | 3,786 | 1 | Cut Tape | ||||||||
| Mouser | 595-SN74HCT138DR | 5,584 | 1 | Tape & Reel | ||||||||
| Win Source | 333868-SN74HCT138DR | 9,280 | 455 | >1wk |
Inventory History
3 month trend: +14.75%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
CAD Models
Download Texas Instruments SN74HCT138DR symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 SnapEDA | SymbolFootprint | Download | |
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 0.191
$ 0.247
$ 0.247
Stock
788,665
383,411
383,411
Authorized Distributors
4
6
6
Case/Package
SOIC
SOIC
SOIC
Number of Pins
16
16
16
Logic Function
Decoder, Demultiplexer
Decoder
Decoder
Number of Inputs
3
3
3
Number of Outputs
8
8
8
Number of Circuits
1
1
1
Low Level Output Current
4 mA
4 mA
4 mA
High Level Output Current
-4 mA
-4.8 mA
-4.8 mA
Supply Type
Single
Single
Single
Min Supply Voltage
4.5 V
4.5 V
4.5 V
Max Supply Voltage
5.5 V
5.5 V
5.5 V
Supply Chain
Lifecycle StatusProduction (Last Updated: 3 days ago)
Manufacturer Lifecycle StatusACTIVE (Last Updated: 3 days ago)
Engineering Resources
View Evaluation kits and Reference designs for Texas Instruments SN74HCT138DR.
Evaluation Kit
Related Parts
Texas InstrumentsCD74HCT238M96
High Speed CMOS Logic 3-to-8 Line Decoder Demultiplexer Inverting and Non-Inverting 16-SOIC -55 to 125
Texas InstrumentsCD74HCT138M96
High Speed CMOS Logic 3-to-8 Line Decoder/Demultiplexer Inverting and Non-Inverting 16-SOIC -55 to 125
Texas InstrumentsCD74HCT138M96G4
High Speed CMOS Logic 3-to-8 Line Decoder/Demultiplexer Inverting and Non-Inverting 16-SOIC -55 to 125
Descriptions
Descriptions of Texas Instruments SN74HCT138DR provided by its distributors.
3-Line To 8-Line Decoders/Demultiplexers 16-SOIC -40 to 85
DECODER/DEMULTIPLEXER, 3: 8, SOIC-16; Famille Logique/ Numéro de base: 74HCT138; Type de logique: Décodeur / Démultiplexeur 8 lignes vers 3 lignes; Nombre de canauxde sortie: 8Sortie(s); Type de boîtier CI logique: SOIC; Nom
Decoder/Demultiplexer, 3:8, Soic-16; Logic Family/Base Number:74Hct138; Logic Type:3-To-8 Line Decoder/Demultiplexer; No. Of Outputs:8Outputs; Logic Case Style:Soic; No. Of Pins:16Pins; Supply Voltage Min:4.5V; Supply Voltage Rohs Compliant: Yes |TEXAS INSTRUMENTS SN74HCT138DR
Manufacturer Aliases
Texas Instruments has several brands around the world that distributors may use as alternate names. Texas Instruments may also be known as the following names:
- TI
- TEXAS
- TEXAS INST
- TEXAS INSTR
- TEXAS INSTRUMENT
- TEXAS INS
- TEXAS INSTRUMENTS INC
- TEXAS INSTRU
- TEXAS INSTRUMEN
- TI/NS
- TEX
- Texas Instruments (TI)
- TEXASIN
- TEXAS INSTRUMENTS INCORPORATED
- TEXINS
- TEXAS INTRUMENTS
- TEAXS
- TEXASI
- TEXAS INSTRUM
- TI Texas Instruments
- TEXAS USD
- TEXAS INSRUMENTS
- TEXAS INSRUMENT
- TEXAS INSTUMENTS
- TI-ROHS
- Texas Instr.
- Texas Instruments Inc.
Inventory History
3 month trend: +14.75%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageSOIC
Contact PlatingGold
MountSurface Mount
Number of Pins16
Weight141.690917 mg
Technical
Bandwidth28 MHz
High Level Output Current-4 mA
Independent Circuits1
Logic FunctionDecoder, Demultiplexer
Low Level Output Current4 mA
Max Operating Temperature85 °C
Max Supply Voltage5.5 V
Min Operating Temperature-40 °C
Min Supply Voltage4.5 V
Number of Bits8
Number of Channels1
Number of Circuits1
Number of Elements1
Number of Input Lines3
Number of Inputs3
Number of Output Lines8
Number of Outputs8
Operating Supply Voltage5 V
PolarityInverting
Propagation Delay45 ns
Quiescent Current80 µA
Schedule B8542390000
Supply TypeSingle
Turn-On Delay Time45 ns
Dimensions
Height1.75 mm
Length9.9 mm
Thickness1.58 mm
Width3.91 mm
Compliance
Environmental Classification
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCNo
RoHSCompliant
