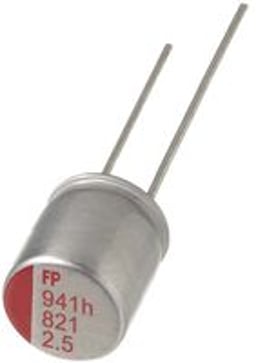

Nichicon RL80E821MDNASQKX
$ 0.392
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | RL80E821MDNASQKX | 2,000 | 150 | Bulk | ||||||||
| Verical | RL80E821MDNASQKX | 866 | 204 | |||||||||
| DigiKey | 493-4011-1-ND | 833 | 1 | Cut Tape | ||||||||
| Newark | 79R3095 | 867 | 1 | Ammo | ||||||||
| Mouser | 647-RL80E821MDNASQKX | 1,720 | 1 | Ammo Pack |
Inventory History
3 month trend: -15.45%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Datasheets & Documents
Download datasheets and manufacturer documentation for Nichicon RL80E821MDNASQKX.
CAD Models
Download Nichicon RL80E821MDNASQKX symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 0.392
$ 0.259
$ 0.259
Stock
6,330
23,447
23,447
Authorized Distributors
6
6
6
Capacitance
820 µF
820 µF
820 µF
Mount
Through Hole
-
-
Case/Package
Radial
Radial
Radial
Voltage Rating (DC)
2.5 V
2.5 V
2.5 V
Tolerance
20 %
20 %
20 %
ESR (Equivalent Series Resistance)
6 mΩ
15 mΩ
15 mΩ
Life (Hours)
5000 hours
5000 hours
5000 hours
Ripple Current
6.1 A
205 mA
205 mA
Height - Seated (Max)
8.001 mm
-
-
Related Parts
NichiconRS80E821MDNASQJT
Cap Aluminum Polymer 820uF 2.5VDC 20% (6.3 X 8mm) Radial 2.5mm 0.007 Ohm 5600mA 5000h 105C T/R
Panasonic2SEPC820MX+TSS
CAPACITOR, ALUMINUM ORGANIC POLYMER, 2.5VDC,820UF,7MOHM,8X9MM, T&A BOX
United Chemi-ConAPSE2R5ELL821MF08S
NPcap-PSE Series 2.5 V 820 uF 6.3 x 8 mm LS=2.5 mm Aluminum Polymer Capacitor
Descriptions
Descriptions of Nichicon RL80E821MDNASQKX provided by its distributors.
Cap Aluminum Polymer 820uF 2.5VDC 20% (8 X 8mm) Radial 3.5mm 0.006 Ohm 6100mA 5000h 105C T/R
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 2.5V, 20% +Tol, 20% -Tol, 820uF
CAP ALUM POLY 820UF 20% 2.5V TH
Aluminum Electrolytic Capacitor, 820Uf, 2.5V, 20%, Radial; Rango De Producto:Serie L8; Capacidad:820Μf; Tolerancia, Capacitancia:± 20%; Tensión Nominal:2.5V; Diámetro:8Mm; Terminales Del Condensador:Conexión Radial; Altura:8Mm |Nichicon RL80E821MDNASQKX
Manufacturer Aliases
Nichicon has several brands around the world that distributors may use as alternate names. Nichicon may also be known as the following names:
- NICH
- NICHICON CORPORATION
- NICHI
- NICHIC
- NICHICON CORP
- NICHICON AMERICA
- NICHCON
- NICHICO
- NICHICON (AMERICA) CORP
- NICHCN
- NICHICON (HONG KONG) LIMITED
- NICHICON AMERICA CORPORATION
- NCH
- Nichicon Austria GMBH
- NICHICON (VA)
- nichicon (america) corpor
- Nichicon Batteries
- avx/nichicon
- 0202 NICHICON
- NICHICONCORPAMERI
- Nichicon Datasheet
- NICHICON (SINGAPORE) PTE LTD
- NICHICON (MC)
- UNITED CHEMI CON/Nichicon
- ICEL SRL
Inventory History
3 month trend: -15.45%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageRadial
Contact PlatingTin
MountThrough Hole
Number of Terminals2
Technical
Capacitance820 µF
Dissipation Factor0.12 %
ESR (Equivalent Series Resistance)6 mΩ
Leakage Current512.5 µA
Life (Hours)5000 hours
Max Operating Temperature105 °C
Min Operating Temperature-55 °C
PackagingCut Tape
Ripple Current6.1 A
TerminationRadial
Tolerance20 %
Voltage Rating2.5 V
Voltage Rating (DC)2.5 V
Dimensions
Diameter8 mm
Height8 mm
Height - Seated (Max)8.001 mm
Lead Pitch3.5052 mm
Length8 mm
Terminal Pitch3.5 mm
