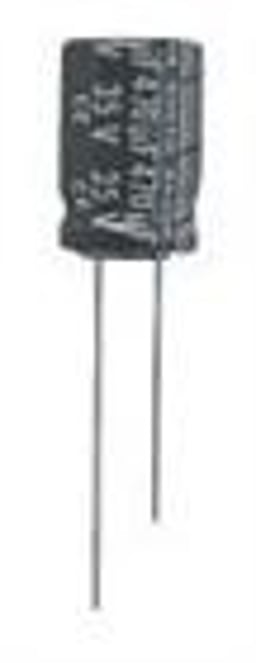

United Chemi-Con EKMG250ELL220ME11D
Technical Specifications
Physical
Case/PackageRadial
Dielectric MaterialAluminium
MountThrough Hole
Number of Pins2
Technical
Capacitance22 µF
Life (Hours)1000 hours
Max Operating Temperature105 °C
Min Operating Temperature-55 °C
PackagingBulk
Ripple Current54 mA
TerminationRadial
Tolerance20 %
Voltage Rating25 V
Voltage Rating (DC)25 V
Dimensions
Diameter5 mm
Height11 mm
Height - Seated (Max)12.4968 mm
Lead Pitch2 mm
Length11 mm
Inventory History
3 month trend: +43.23%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 0.209
$ 0.084
Stock
37,065
37,207
Authorized Distributors
6
6
Capacitance
22 µF
22 µF
Mount
Through Hole
PCB, Through Hole
Case/Package
Radial
Radial
Voltage Rating (DC)
25 V
25 V
Tolerance
20 %
20 %
ESR (Equivalent Series Resistance)
-
2.4 Ω
Life (Hours)
1000 hours
2000 hours
Ripple Current
54 mA
180 mA
Height - Seated (Max)
12.4968 mm
10.9982 mm
Engineering Resources
View Evaluation kits and Reference designs for United Chemi-Con EKMG250ELL220ME11D.
Related Parts
NichiconUPW1E220MDD1TD
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPW 25V 22muF ±20% 0.197Dia 5.00mm
NichiconUFG1E220MDM
Cap Aluminum Lytic 22uF 25V 20% (5 X 11mm) Radial 2mm 50mA 1000h 85C Bulk
NichiconUKT1E220MDD1TD
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UKT 25V 22muF ±20% 0.197Dia 5.00mm
Descriptions
Descriptions of United Chemi-Con EKMG250ELL220ME11D provided by its distributors.
Cap Aluminum Lytic 22uF 25V 20%( 5 X 11mm) Radial 2mm 54mA 1000h 105C Bulk
Aluminum Electrolytic Capacitor 22Uf, 25V, 20%, Radial; Capacitance:22Μf; Voltage(Dc):25V; Capacitance Tolerance:± 20%; Capacitor Terminals:Pc Pin; Lifetime @ Temperature:1000 Hours @ 105°C; Polarity:Polar; Lead Spacing:2Mm; Esr:- Rohs Compliant: Yes |Chemi-Con EKMG250ELL220ME11D
22uF -55℃~+105℃ 25V 5mm 2mm ±20% 54mA@120Hz 1000hrs@105℃ Straight Aluminum Electrolytic Capacitors - Leaded ROHS
Radial Can KMG 25V 22muF ±20% 0.197Dia 5.00mm
