Panasonic EEEFK1H220P
$ 0.096
Production
Inventory History
3 month trend: -9.35%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
CAD Models
Download Panasonic EEEFK1H220P symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
 EE Concierge | SymbolFootprint | ||
 SnapEDA | SymbolFootprint | 3D | Download |
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 0.096
$ 0.108
$ 0.108
Stock
3,036,065
744,895
744,895
Authorized Distributors
6
6
6
Capacitance
22 µF
22 µF
22 µF
Mount
Surface Mount
Surface Mount
Surface Mount
Case/Package
Radial
Radial
Radial
Voltage Rating (DC)
50 V
50 V
50 V
Tolerance
20 %
20 %
20 %
ESR (Equivalent Series Resistance)
880 mΩ
-
-
Life (Hours)
2000 hours
5000 hours
5000 hours
Ripple Current
123.75 mA
85 mA
85 mA
Height - Seated (Max)
6.096 mm
6.096 mm
6.096 mm
Related Parts

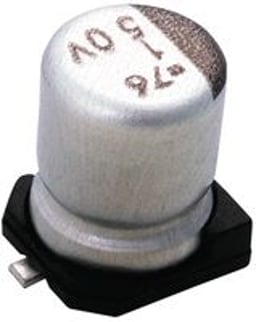

United Chemi-ConEMZA500ADA220MF61G
Cap Aluminum Lytic 22uF 50V 20%( 6.3 X 5.8mm) SMD 165mA 2000h 105C Automotive T/R
PanasonicEEEFT1V220AR
Cap Aluminum Lytic 22uF 35V 20% (4 X 5.8mm) SMD 0.85 Ohm 160mA 2000h 105C Automotive T/R
Descriptions
Descriptions of Panasonic EEEFK1H220P provided by its distributors.
Cap Aluminum Lytic 22uF 50V 20%( 6.3 X 5.8mm) SMD 165mA 2000h 105C Automotive T/R
Capacitor Aluminum 22uF 50VDC 20% 6.3 X 5.8mm SMD 165mA 2000 hr T/R
Capacitor,Alum Electrolytic,Cap 22 uF,Tol 20%,Vol-Rtg 50 VDC,SMT,6.3x5.8,CT
ALUMINUM ELECTORLYTIC CAPACITOR, 22UF, 50V, 20%, SMD, FULL REEL
22uF 50V 123.8mA@120Hz ±20% SMD,D6.3xL5.8mm Aluminum Electrolytic Capacitors - SMD ROHS
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 22uF, Surface Mount, 2626
Aluminum Electrolytic Capacitors, 50V, 22µF, -55¡C to +105¡C, RoHS
Panasonic SCT
EEE-FK Series 50 V 22 uF Ø 6.3 x 5.8 mm 105 °C Low ESR SMT Electrolytic
ALUMINUM ELECTORLYTIC CAPACITOR, 22UF, 50V, 20%, SMD, FULL REEL; Capacitor Case / Package:Radial Can - SMD; Capacitance:22µF; Voltage(DC):50V; ESR:-; Lifetime @ Temperature:2000 hours @ 105°C; Polarity:Polar; Product Range:FK Series RoHS Compliant: Yes
Manufacturer Aliases
Panasonic has several brands around the world that distributors may use as alternate names. Panasonic may also be known as the following names:
- PAN
- Panasonic Electronic Components
- PANASONI
- Panasonic Electric Works
- PANASON
- PANA
- PANAS
- PANASO
- PANSONIC
- Panasonic Industrial Automation Sales
- PANASONIC INDUSTRIAL
- Panasonic Industrial Devices
- PANASONIC BATTERIES
- PANASONIC CORPORATION
- PANASOINC
- PANASONIC CORP
- PANISONIC
- PANOSONIC
- MATSUSHITA PANASONIC
- PANASONC
- PANASOIC
- AROMAT CORP
- PEW
- PANASONIC/MATSUSHITA
- PANS
- Panasonic Industrial Devices
- Panasonic Corporation of North America
Inventory History
3 month trend: -9.35%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageRadial
Contact PlatingTin
Dielectric MaterialAluminium
MountSurface Mount
Number of Pins2
Number of Terminals2
Technical
Capacitance22 µF
Dissipation Factor10 %
ESR (Equivalent Series Resistance)880 mΩ
Impedance880 mΩ
Leakage Current11 µA
Life (Hours)2000 hours
Max Operating Temperature105 °C
Min Operating Temperature-55 °C
PackagingCut Tape
PolarityPolar
Ripple Current123.75 mA
Ripple Current (AC)165 mA
Schedule B8532220020
TerminationSMD/SMT
Tolerance20 %
Voltage50 V
Voltage Rating50 V
Voltage Rating (DC)50 V
Dimensions
Diameter6.3 mm
Height5.8 mm
Height - Seated (Max)6.096 mm
Length6.6 mm
Width6.6 mm
Compliance
Environmental Classification
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCYes
RoHSCompliant
