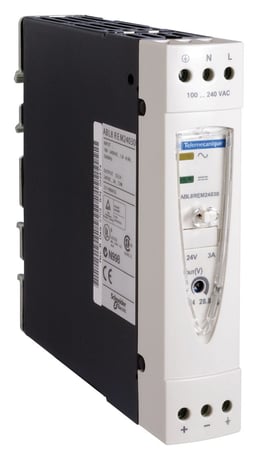

Schneider Electric ABL8RPS24030
$ 262.17
Production
Inventory History
3 month trend: -44.75%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for Schneider Electric ABL8RPS24030.
Related Parts
OmronS8VS-06024A
POWER SUPPLY, 60W, 100-240VAC INPUT, 24VDC 2.5A OUTPUT, DIN RAIL MOUNTING, DIGITAL DISPLAY WIT
OmronS8VS-06024B
Power Supply,AC-DC,24V,2.5A,85-264V In,Enclosed,DIN Rail Mount,60W,S8VS Series
OmronS8VS-09024A
POWER SUPPLY, 90W, 100-240 VAC INPUT, 24 VDC 3.75A OUTPUT, DIN RAIL MOUNTING, DIGITAL DISPLAY
Descriptions
Descriptions of Schneider Electric ABL8RPS24030 provided by its distributors.
Schneider Electric Power supplies for industrial use, ABL8RPS24030 - ABL8RPS24030
POWER SUPPLY, AC-DC, 24V, 3A; No. of Outputs: 1 Output; Output Power Max: 72W; Output Voltage - Output 1: 24V; Output Current - Output 1: 3A; Output Voltage - Output 2: -; Output Current - Output 2: -; Output Voltage - Output
Schneider Electric ABL8RPS24030 Phaseo Power Supply Brand: Schneider Electric. Part Number: ABL8RPS24030. Schneider Electric Phaseo Square D Power Supply, Regulated Switch Mode, Series: ABL, 100 to 120 VAC, 200 to 500 VAC Input, 24 VDC Output, 72 W Power, 3 A, 50/60 Hz Frequency, DIN Rail Mounting, 45 mm Width, 125 mm Depth, 143 mm Height. Additional Description: SQD -ABL8RPS24030 UNIV.POWER SUP 1P 24V 3A. Catalog Description: universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 3 A..
Outputs = 1 / Output Voltage 1 V = 28.8 / Output Current 1 A = 3 / Output Voltage Nominal 1 V = 24 / Output Type = Fixed / Input Voltage Nominal = 100 ... 120 VAC / Input Voltage Nominal = 200 ... 500 VAC / Rated Power W = 72 / Input Voltage Min. V = 85 / Input Voltage Max. V = 550 / Insulation Voltage kV = 3 / Termination Type = Screw Terminal / Series = ABL8 / Efficiency % = 87 / MTBF h = 100000 / Protection Rating = IP20 / Operating Temperature Min. °C = -25 / Operating Temperature Max. °C = 50 / Depth mm = 120 / Height mm = 143 / Width mm = 44
Manufacturer Aliases
Schneider Electric has several brands around the world that distributors may use as alternate names. Schneider Electric may also be known as the following names:
- SCHNEIDER
- Schneider Electric-Legacy Relays
- SCHNEIDER ELECTRIC / SAREL
- Schneider Electric/Legacy Relay
- SE Relays
- SCHNEIDER ELECTRIC USA INC
- Schneider Electric GmbH
- SCHNEIDOR ELECTRIC
- SCHNEIDER ELECTRIC BV
- Schneider Electric Relays
- SCHNEID
- Schneider Electric/Square D
- SCHNEIDER- TELEMACANIQUE
- SCHNEIDER ELCTRIC/MAGNECRAFT
- Schneider - APC
- Schneider Electric / Magnecraft
- Schneider - Partner Retail
- Schneider - Clipsal
- SCHNEIDER-SQUARE D
- Schneider - Partner Projects
- SCHNEIDER ELECTRIC IT USA INC
- SCHNEIDER – Pro-face
- Schneider - Industry
- Schneider Electric Thorsman (Schneider Electric)
- SCHNEIDER ELECTRIC INDUSTRIAL
Inventory History
3 month trend: -44.75%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
MountDIN Rail
Weight300 g
Technical
Efficiency87 %
Max Input Voltage550 V
Max Operating Temperature60 °C
Max Output Current3 A
Max Output Power72 W
Max Output Voltage28.8 V
Min Input Voltage85 V
Min Operating Temperature-25 °C
Min Output Voltage24 V
Nominal Input Voltage100 V
Nominal Output Voltage24 V
Number of Circuits1
Number of Outputs1
Output Current3 A
Output Power72 W
Output Voltage24 V
PackagingBulk
Power Rating72 W
Dimensions
Height - Seated (Max)143 mm
Length125 mm
Width45 mm
