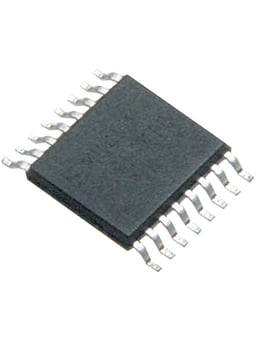

Texas Instruments MAX3221ECPW
$ 1.07
NRND
Inventory History
3 month trend: +0.00%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
CAD Models
Download Texas Instruments MAX3221ECPW symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
 EE Concierge | SymbolFootprint | ||
 SnapEDA | SymbolFootprint | Download | |
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 1.07
$ 0.596
$ 0.596
Stock
212,125
882,582
882,582
Authorized Distributors
1
4
4
Case/Package
TSSOP
TSSOP
TSSOP
Number of Pins
16
16
16
Logic Function
Receiver, Transceiver
Receiver, Transceiver
Receiver, Transceiver
Interface
-
-
-
Number of Drivers
1
1
1
Number of Receivers
1
1
1
Data Rate
250 kbps
250 kbps
250 kbps
Receiver Hysteresis
-
-
-
Simplex/Duplex
Full Duplex
Full Duplex
Full Duplex
Min Supply Voltage
3 V
3 V
3 V
Max Supply Voltage
5.5 V
5.5 V
5.5 V
Supply Chain
Lifecycle StatusNRND (Last Updated: 3 years ago)
Manufacturer Lifecycle StatusNRND (Last Updated: 3 years ago)
Engineering Resources
View Evaluation kits and Reference designs for Texas Instruments MAX3221ECPW.
Related Parts
Texas InstrumentsTRS3221EIPWR
3- to 5.5-V single channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 16-TSSOP -40 to 85
Texas InstrumentsMAX3221EIPWR
3- to 5.5-V single channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 16-TSSOP -40 to 85
Texas InstrumentsTRS3221ECPWR
RS-232 TRANSCEIVER, 5.5V, TSSOP-16; DEVI; MSL: MSL 1 - Illimité; SVHC: No SVHC (15-Jan-2019)
Descriptions
Descriptions of Texas Instruments MAX3221ECPW provided by its distributors.
Single Transmitter/Receiver RS-232 16-Pin TSSOP Tube
3- to 5.5-V single channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection 16-TSSOP 0 to 70
EAR99 MAX3221 Tube ALSO OPERATES AT 5V SUPPLY interface receiver 5V 1mA 61.887009mg 150ns
Interface IC Operating temperature: 0...+70 °C No. of drivers: 1 No. of receivers: 1 Power supply: 3...5.5 V Series: MAX3221 Interfaces: RS232 Package: TSSOP-16 Transfer rate: 250 kbps
IC, RS232 3V-5.5V DRVR 16-TSSOP; Type de circuit: Driver / Récepteur de ligne; Type d'interface CI: RS232; Nombre de drivers: 1Driver(s); Nombre de récepteurs: 1Receivers; Tension, alimentation min.: 3V; Tension, alimentation
Ic, Rs232 3V-5.5V Drvr 16-Tssop; Device Type:Line Driver/Receiver; Ic Interface Type:Rs232; No. Of Drivers:1Drivers; No. Of Receivers:1Receivers; Supply Voltage Min:3V; Supply Voltage Max:5.5V; Driver Case Style:Tssop; No. Of Rohs Compliant: Yes |TEXAS INSTRUMENTS MAX3221ECPW
Manufacturer Aliases
Texas Instruments has several brands around the world that distributors may use as alternate names. Texas Instruments may also be known as the following names:
- TI
- TEXAS
- TEXAS INST
- TEXAS INSTR
- TEXAS INSTRUMENT
- TEXAS INS
- TEXAS INSTRUMENTS INC
- TEXAS INSTRU
- TEXAS INSTRUMEN
- TI/NS
- TEX
- Texas Instruments (TI)
- TEXASIN
- TEXAS INSTRUMENTS INCORPORATED
- TEXINS
- TEXAS INTRUMENTS
- TEAXS
- TEXASI
- TEXAS INSTRUM
- TI Texas Instruments
- TEXAS USD
- TEXAS INSRUMENTS
- TEXAS INSRUMENT
- TEXAS INSTUMENTS
- TI-ROHS
- Texas Instr.
- Texas Instruments Inc.
Inventory History
3 month trend: +0.00%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageTSSOP
MountSurface Mount
Number of Pins16
Weight61.887009 mg
Technical
Data Rate250 kbps
Logic FunctionReceiver, Transceiver
Max Operating Temperature85 °C
Max Supply Voltage5.5 V
Min Operating Temperature-40 °C
Min Supply Voltage3 V
Nominal Supply Current1 mA
Number of Drivers1
Number of Receivers1
Number of Transceivers1
Number of Transmitters1
Operating Supply Voltage5 V
Output Current35 mA
Output Voltage13.2 V
Propagation Delay150 ns
Schedule B8542390000
Simplex/DuplexFull Duplex
Dimensions
Height1.2 mm
Length5 mm
Thickness1 mm
Width4.4 mm
Compliance
Environmental Classification
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCNo
RoHSCompliant
