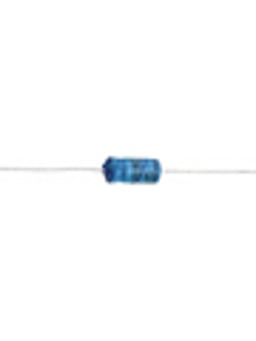

Vishay MAL203139229E3
$ 0.83
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TME | MAL203139229E3 | 478 | 1 | 10h | ||||||||
| Newark | 97C0307 | 0 | 2K | Tape & Reel | ||||||||
| New Yorker Electronics | MAL203139229E3 | 0 | 2K | 21h | ||||||||
| Future Electronics | 8008545 | 0 | 500 | Ammo | ||||||||
| Avnet | MAL203139229E3 | 0 | 2K | 5d |
Inventory History
3 month trend: -9.53%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
CAD Models
Download Vishay MAL203139229E3 symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 0.83
$ 0.744
Stock
2,633
100
Authorized Distributors
6
3
Capacitance
22 µF
22 µF
Mount
Through Hole
Through Hole
Case/Package
Axial
Axial
Voltage Rating (DC)
100 V
100 V
Tolerance
50 %
50 %
ESR (Equivalent Series Resistance)
5.07 mΩ
5.07 Ω
Life (Hours)
3000 hours
3000 hours
Ripple Current
120 mA
120 mA
Height - Seated (Max)
-
-
Descriptions
Descriptions of Vishay MAL203139229E3 provided by its distributors.
031 AS Series 100 V 22 uF Ø8x18mm Axial Aluminum Electrolytic Capacitor
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 50% +Tol, 10% -Tol, 22uF, Through Hole Mount
Axial Electrolytic Capacitor, 22uF, 100V, -10 ... 50 %
Cap Aluminum Lytic 22uF 100V -10% to 50% (8 X 18mm) Axial 5.07 Ohm 120mA 3000h 85C Automotive Tape and Box
Manufacturer Aliases
Vishay has several brands around the world that distributors may use as alternate names. Vishay may also be known as the following names:
- VIS
- VISH
- VISHAY INTERTECHNOLOGY INC
- Vishay Thin Film
- VISHA
- Vishay Intertechnology
- Vishay Semiconductors
- VISAHY
- Vishay Intertech
- VISHY
- VISHAY INTERTECHNOLOGY ASIA PTE LTD
- Vishay Intertechnologies
- Vishay General Semiconductor - Diodes Division
- Vishay Semiconductor Opto Division
- VSHAY
- VISH/IR
- VSHY
- VSH
- VISHAY INTERTECHNOLOGY ASIA PT
- VISHAY ELECTRONIC
- VISHAY AMERICAS INC
- Vishay Semiconductor Diodes Division
- VISHAY OPTO
- VISHAY FOIL RESISTORS
- Vishay Polytech
- Vishay Semiconductor
- Vishay Sfernice
- Vishay Siliconix
- Vishay Dale
- Vishay BCcomponents
- Vishay Angstrohm
- Vishay Draloric
Inventory History
3 month trend: -9.53%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageAxial
MountThrough Hole
Number of Terminals2
Technical
Capacitance22 µF
ESR (Equivalent Series Resistance)5.07 mΩ
Impedance2.1 Ω
Leakage Current48 mA
Life (Hours)3000 hours
Max Operating Temperature85 °C
Min Operating Temperature-40 °C
PolarityPolar
Ripple Current120 mA
TerminationAxial
Tolerance50 %
Voltage100 V
Voltage Rating100 V
Voltage Rating (DC)100 V
Dimensions
Diameter8 mm
Height18 mm
Lead Diameter800 µm
Lead Pitch25 mm
Length18 mm
Compliance
Environmental Classification
China RoHSCompliant
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCYes
RoHSCompliant
