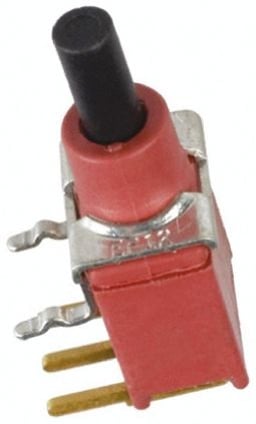

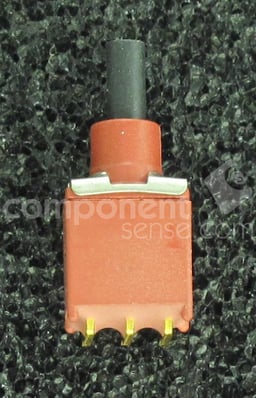

C&K Components EP12SD1ABE
$ 6.38
Production
Inventory History
3 month trend: +131%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
CAD Models
Download C&K Components EP12SD1ABE symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 6.38
$ 6.005
$ 6.005
Stock
54,447
68
68
Authorized Distributors
6
6
6
Throw Configuration
SPDT
SPDT
SPDT
Contact Plating
Gold
Gold
Gold
Housing Material
Nylon
-
-
Termination
PC Pins
PC Pins
PC Pins
Current Rating
20 mA
-
-
Voltage Rating (DC)
20 V
20 V
20 V
Illumination Type
-
-
-
Illumination Color
-
-
-
Mechanical Life
-
-
-
Related Parts
C&K ComponentsEP12SD1CBE
Pushbutton Switch,Straight,Spdt,On-(On),Pc Tail Terminal,Pcb Hole Count:3 Rohs Compliant: Yes
C&K ComponentsEP12SD1AVBE
Switch Push Button N.C. SPDT Plunger 20VAC 20VDC 0.4W Momentary Contact PC Pins Thru-Hole T/R
C&K ComponentsEP12FPD1CBE
Pushbutton Switch, Spdt, Momentary, 0.02A, 20Vdc, Solder Terminal, Through Hole-Straight
Descriptions
Descriptions of C&K Components EP12SD1ABE provided by its distributors.
Pushbutton Switch, Spdt, Momentary, 0.02A, 20Vdc, Solder Terminal, Through Hole-Right Angle
Switch, Pushbutton, TINY, Sealed, Surface Mount, ON-MOM., PC TerminalS/RT ANGLE
C&K EP12SD1ABE Switches > Pushbutton > SubMiniature Push > Sealed Sub Mini Push
Switch Push Button ON Mom SPDT Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
Pushbutton Switch; Switch Operation:On-(On); Circuitry:SPDT; Switch Terminals:Through Hole; Actuator Diameter:2.54mm; Actuator Style:Round; Contact Rating:0.4VA at 20V; Features:Plunger Actuator; Illumination:Non-Illuminated ;RoHS Compliant: Yes
SWITCH, SPDT HORIZ; Switch Operation:On-(On); Contact Configuration:SPDT; Contact Voltage AC Nom:-; Contact Voltage DC Nom:-; Contact Current Max:-; Switch Terminals:PC Pin; Product Range:EP Series; SVHC:No SVHC (15-Jan-
Manufacturer Aliases
C&K Components has several brands around the world that distributors may use as alternate names. C&K Components may also be known as the following names:
- C&K
- CKCOMP
- C&K COMPONENTS INC
- C&K SWITCHES
- C&K SWITCH
- C&K Components Corp
- C AND K COMPONENTS
- C & K COMPONENT
- C&K COMPONEN
- C AND K
- C&K CONNECT
- C&K/ITT CANNON
- C & K COMPONENTS LLC
- C&K COMPO
- ITTE
- C & K COMPON
- Littelfuse - C&K
- C&K Aerospace
- C&K COMPONENTS (VA)
- ITT/C&K
- C&K / ITT INDUSTRIES
- C&K Switc
- C&K Components (Schadow)
- RAFI-USA INC / C&K COMPONENTS
- C & K Components Incorporated
- C&K Components
- C&K Components Ltd.
Inventory History
3 month trend: +131%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Actuator MaterialGlass, Nylon, Polyester, Thermoplastic
ColorRed
Contact MaterialGold
Contact PlatingGold
Housing MaterialNylon
MountPCB, Through Hole
Technical
Contact Current Rating20 mA
Contact Resistance20 mΩ
Contact Voltage Rating (AC)20 V
Current Rating20 mA
Electrical Life30 kcycles
Insulation Resistance1 GΩ
Max Current Rating20 mA
Max Operating Temperature85 °C
Max Voltage Rating (AC)20 V
Max Voltage Rating (DC)20 V
Min Operating Temperature-30 °C
Number of Poles1
Number of Positions2
OrientationRight Angle
PackagingBulk
Power Rating400 mW
SealableEPOXY TERMINAL SEALED
Switch FunctionOn-Mom
TerminationPC Pins
Throw ConfigurationSPDT
Voltage Rating (AC)20 V
Voltage Rating (DC)20 V
Dimensions
Actuator Length5.461 mm
Depth19.2 mm
Height5.08 mm
Length8.13 mm
Width8.13 mm
Compliance
Environmental Classification
ApprovalsCSA, UL
China RoHSCompliant
Flammability RatingUL94 V-0
Lead FreeLead Free
Radiation HardeningNo
RatingsIP57, Waterproof
REACH SVHCYes
RoHSCompliant
Compliance Statements
