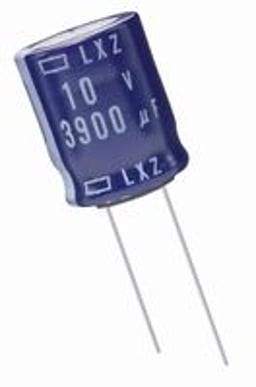

United Chemi-Con ELXZ630ELL821MK40S
$ 0.5
Production
Inventory History
3 month trend: -0.62%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 0.5
$ 0.677
Stock
37,907
45,530
Authorized Distributors
6
6
Capacitance
820 µF
820 µF
Mount
Through Hole
PCB, Through Hole
Case/Package
Radial
Radial
Voltage Rating (DC)
63 V
63 V
Tolerance
20 %
20 %
ESR (Equivalent Series Resistance)
-
42 mΩ
Life (Hours)
7000 hours
5000 hours
Ripple Current
2.56 A
1.92 A
Height - Seated (Max)
40.005 mm
40.005 mm
Related Parts
PanasonicEEU-FC1J821L
Aluminum Electrolytic Capacitor, 820 uF, 63 V, ± 20%, 5000 hours @ 105°C, Radial Leaded
PanasonicEEU-FM1H821L
Cap Aluminum 820uF 50V 20% (12.5 X 35mm) Radial 5mm 3270mA 7000h 105°C Bulk
United Chemi-ConELXZ500ETD821MK35S
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 820uF
Descriptions
Descriptions of United Chemi-Con ELXZ630ELL821MK40S provided by its distributors.
Cap Aluminum Lytic 820uF 63V 20% (12.5 X 40mm) Radial 5mm 2560mA 7000h 105 Bulk
ALUMINUM ELECTROLYTIC CAPACITOR, 820UF, 63V
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 820uF, Through Hole Mount
820 F 63 V Aluminum Electrolytic Capacitors Radial, Can - 7000 Hrs
ALUMINUM ELECTROLYTIC CAPACITOR, 820UF, 63V; Capacitance:820µF; Voltage(DC):63V; Capacitance Tolerance:± 20%; Capacitor Terminals:PC Pin; Lifetime @ Temperature:7000 hours @ 105°C; Polarity:Polar; Lead Spacing:5mm; Product Length:- RoHS Compliant: Yes
Manufacturer Aliases
United Chemi-Con has several brands around the world that distributors may use as alternate names. United Chemi-Con may also be known as the following names:
- UCC
- CHEMI-CON
- UNITED CHEMI-CON INC
- UNITED CHEMI
- NIPPONCHEM
- UNITED CHEM
- CHEMI
- MARCON
- MARC
- United Chemi-Con (UCC)
- EUROPE CHEMI-CON
- UNITED CHE
- UNITED CH
- UNITED CHEMI-CON (VA)
- CHEMIC
- United Chemi-Con/Nippon Chemi-Con
- UNITED CEHMI
- NIPPON (UNITED) CHEMI-C
- Nippon / United Chemi-Con (UCC)
- UNITED CHEMI-C
- SINGAPORE CHEMI-CON (PTE) LTD
- NIPPON
- NIPPON-UCC
- CHEMI-COM
- Taiwan Chemi-Con
Inventory History
3 month trend: -0.62%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageRadial
Contact PlatingTin
Dielectric MaterialAluminium
MountThrough Hole
Number of Pins2
Number of Terminals2
Technical
Capacitance820 µF
Dissipation Factor8 %
FeaturesGeneral Purpose
Impedance42 mΩ
Lead/Base StyleStraight
Leakage Current516.6 µA
Life (Hours)7000 hours
Max Operating Temperature105 °C
Min Operating Temperature-55 °C
PackagingBulk
PolarityPolar
Ripple Current2.56 A
Schedule B853222***
TerminationRadial
Test Frequency100 MHz
Tolerance20 %
Voltage63 V
Voltage Rating63 V
Voltage Rating (DC)63 V
Dimensions
Diameter12.5 mm
Height40 mm
Height - Seated (Max)40.005 mm
Lead Pitch5 mm
Length40 mm
Terminal Pitch5 mm
Compliance
Environmental Classification
China RoHSCompliant
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCNo
RoHSCompliant
