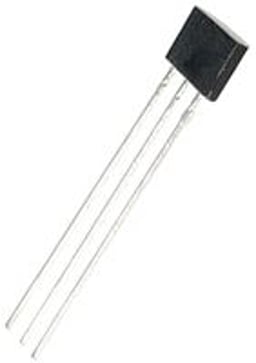

Texas Instruments DRV5013BCQLPG
$ 0.261
Production
Inventory History
3 month trend: -4.39%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
CAD Models
Download Texas Instruments DRV5013BCQLPG symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 SnapEDA | Footprint | Download | |
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 0.261
$ 0.246
$ 0.246
Stock
126,939
193,703
193,703
Authorized Distributors
4
4
4
Supply Chain
Lifecycle StatusProduction (Last Updated: 5 days ago)
Manufacturer Lifecycle StatusACTIVE (Last Updated: 5 days ago)
Engineering Resources
View Evaluation kits and Reference designs for Texas Instruments DRV5013BCQLPG.
Evaluation Kit
Reference Designs
Related Parts
Texas InstrumentsDRV5053VAQLPG
High voltage (up to 38V), linear hall effect sensor 3-TO-92 -40 to 125
Texas InstrumentsDRV5053OAQLPG
High voltage (up to 38V), linear hall effect sensor 3-TO-92 -40 to 125
Texas InstrumentsDRV5053RAQLPG
SENSOR HALL EFFECT ANALOG TO92-3 Hall Effect Sensor Single Axis TO-92-3
Descriptions
Descriptions of Texas Instruments DRV5013BCQLPG provided by its distributors.
High voltage (up to 38V), high bandwidth (30kHz) Hall-effect latch 3-TO-92 -40 to 125
Hall Effect Sensor, Latching, 30 Ma, To-226Aa, 3, 2.5 V, 38 V Rohs Compliant: Yes
Hall Effect Sensor Bipolar Latch 3.3V/5V/9V/12V/15V/18V/24V 3-Pin TO-92 Bulk
Manufacturer Aliases
Texas Instruments has several brands around the world that distributors may use as alternate names. Texas Instruments may also be known as the following names:
- TI
- TEXAS
- TEXAS INST
- TEXAS INSTR
- TEXAS INSTRUMENT
- TEXAS INS
- TEXAS INSTRUMENTS INC
- TEXAS INSTRU
- TEXAS INSTRUMEN
- TI/NS
- TEX
- Texas Instruments (TI)
- TEXASIN
- TEXAS INSTRUMENTS INCORPORATED
- TEXINS
- TEXAS INTRUMENTS
- TEAXS
- TEXASI
- TEXAS INSTRUM
- TI Texas Instruments
- TEXAS USD
- TEXAS INSRUMENTS
- TEXAS INSRUMENT
- TEXAS INSTUMENTS
- TI-ROHS
- Texas Instr.
- Texas Instruments Inc.
Inventory History
3 month trend: -4.39%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageTO-92
MountThrough Hole
Number of Pins3
Technical
Logic FunctionLatch
Max Operating Temperature125 °C
Max Output Current30 mA
Max Supply Current2.7 mA
Max Supply Voltage38 V
Min Operating Temperature-40 °C
Min Supply Voltage2.5 V
Output Current30 mA
PolaritySouth Pole
Schedule B8542390000
Sensing MethodHall Effect
Dimensions
Height5.05 mm
Length4 mm
Thickness1.52 mm
Width3.15 mm
Compliance
Environmental Classification
Lead FreeLead Free
REACH SVHCNo
RoHSCompliant
Compliance Statements
