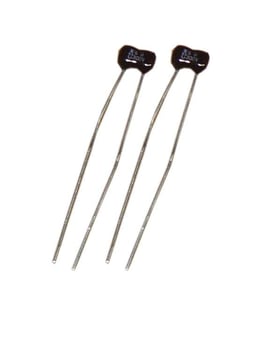

Cornell Dubilier CD5CC040DO3F
$ 2.471
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 338-3063-ND | 95 | 1 | Bulk | ||||||||
| Mouser | 598-CD5CC040DO3F | 49 | 1 | Bulk | ||||||||
| TTI | CD5CC040DO3F | 0 | 100 | Bulk | 2d | |||||||
| New Yorker Electronics | CD5CC040DO3F | 0 | 100 | 4d | ||||||||
| RFMW | CD5CC040DO3F | 0 | 1 | Bulk | 6h |
Inventory History
3 month trend: Restocked
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 2.471
$ 21.095
$ 21.095
Stock
10,455
3,926
3,926
Authorized Distributors
6
6
6
Capacitance
4 pF
4 pF
4 pF
Mount
Through Hole
-
-
Case/Package
Radial
Radial
Radial
Voltage Rating (DC)
300 V
300 V
300 V
Tolerance
-
-
-
Temperature Coefficient
200 ppm/°C
-
-
Military Standard
-
MIL-PRF-39001
MIL-PRF-39001
Height - Seated (Max)
4.8006 mm
-
-
Related Parts
Cornell DubilierCD15CD040DO3
Mica Capacitor, Mica, 500V, 12.5% +Tol, 12.5% -Tol, -200/+200ppm/Cel TC, 0.000004uF, Through Hole Mount
Descriptions
Descriptions of Cornell Dubilier CD5CC040DO3F provided by its distributors.
Cap Mica 4pF 300V 0.5pF (6.9 X 2.8 X 4.8mm) Radial 3mm 125C | Cornell-Dubilier CD5CC040DO3F
Mica Capacitor, Mica, 300V, 12.5% +Tol, 12.5% -Tol, -200/+200ppm/Cel TC, 0.000004uF, Through Hole Mount, 2711
Mica Radial Lead Capacitors 4pF 300V +/-0.5pF
Radial CD5 300V 4pF ±0.5pF 200ppm/C
Silver Mica Capacitor 4Pf, 300V, 0.5Pf, Radial; Capacitance:4Pf; Voltage(Dc):300V; Capacitance Tolerance:± 0.5Pf; Capacitor Terminals:Pc Pin; Lead Spacing:3Mm; Capacitor Case/Package:Radial Leaded; Product Length:6.9Mm Rohs Compliant: Yes |Cornell Dubilier CD5CC040DO3F
Manufacturer Aliases
Cornell Dubilier has several brands around the world that distributors may use as alternate names. Cornell Dubilier may also be known as the following names:
- CORNELL
- CDE
- Cornell Dubilier Electronics
- Cornell Dubilier Electronics (CDE)
- CORNELL DUBLIER
- DUBILIER
- CDC
- COR
- CORNELL DUB
- CORNELL DUBILIER ELECTRONICS INC
- CORNEL
- CORNELL DUBILIE
- CAP
- Cornell Dubilier - CDE
- DUB
- Cornell Dubilier / Illinois Capacitor
- CORNELL DUBI
- ELMENCO
- CORN DUB
- Cornell Dubilier Electron
- Cornell Dubilier Knowles
- CORNELL DUBILIER MARKETING
- CORNELL DUBLIER ELECTRONICS
- DUBIL
- CORNELL DUBILIER ELE
- CDE
- Illinois Capacitor
Inventory History
3 month trend: Restocked
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageRadial
Dielectric MaterialMica
MountThrough Hole
Number of Terminals2
Technical
Capacitance4 pF
FeaturesGeneral Purpose
Max Operating Temperature125 °C
Min Operating Temperature-55 °C
PackagingBulk
Temperature Coefficient200 ppm/°C
TerminationRadial
Voltage Rating300 V
Voltage Rating (DC)300 V
Dimensions
Height4.8 mm
Height - Seated (Max)4.8006 mm
Lead Pitch2.9972 mm
Length6.9 mm
Terminal Pitch3 mm
Width2.8 mm
