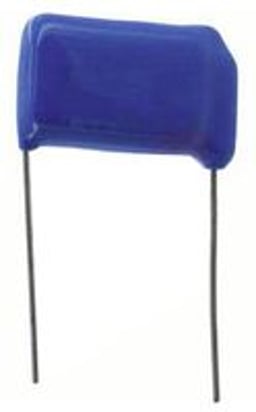

Cornell Dubilier CD19FD392JO3F
$ 6
Production
Inventory History
3 month trend: +8.29%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Datasheets & Documents
Download datasheets and manufacturer documentation for Cornell Dubilier CD19FD392JO3F.
CAD Models
Download Cornell Dubilier CD19FD392JO3F symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 6
$ 7.244
$ 7.244
Stock
10,503
2,580
2,580
Authorized Distributors
6
6
6
Capacitance
3.9 nF
3.9 nF
3.9 nF
Mount
PCB, Through Hole
Through Hole
Through Hole
Case/Package
Radial
Radial
Radial
Voltage Rating (DC)
500 V
500 V
500 V
Tolerance
5 %
5 %
5 %
Temperature Coefficient
70 ppm/°C
70 ppm/°C
70 ppm/°C
Military Standard
Not
Not
Not
Height - Seated (Max)
14.1986 mm
14.1986 mm
14.1986 mm
Related Parts
Cornell DubilierCD19FD362JO3
Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.0036uF, Through Hole Mount
Cornell DubilierCD19FD362JO3F
Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.0036uF, Through Hole Mount
Cornell DubilierCD19FD362GO3
Mica Capacitor, Mica, 500V, 2% +Tol, 2% -Tol, 0/+70ppm/Cel TC, 0.0036uF, Through Hole Mount
Descriptions
Descriptions of Cornell Dubilier CD19FD392JO3F provided by its distributors.
Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.0039uF, Through Hole Mount
Cap Mica 0.0039uF 500V 5% (17.5 X 7.9 X 14.2mm) Radial 8.7mm 125C
CAPACITOR;MICA;CAP 3900PF;TOL 5%;RADIAL DIPPED;VOL-RTG 500VDC;LS 8.7MM
Silver Mica Capacitor 3900Pf, 500V, 5%, Radial; Capacidad:3900Pf; Tolerancia, Capacitancia:± 5%; Tensión Nominal:500V; Terminales Del Condensador:Conexión Radial; Espaciado De Cable:9Mm; Tipo De Empaquetado:Individual |Cornell Dubilier CD19FD392JO3F
CAP, 3900PF, 500V, 5%, THROUGH HOLE; Capacitance: 3900pF; Voltage Rating: 500V; Capacitance Tolerance: ± 5%; Product Range: Type CD19 Series; Capacitor Terminals: Radial Leaded; Lead Spacing: 9mm; Operating Temperature Min: -55
Manufacturer Aliases
Cornell Dubilier has several brands around the world that distributors may use as alternate names. Cornell Dubilier may also be known as the following names:
- CORNELL
- CDE
- Cornell Dubilier Electronics
- Cornell Dubilier Electronics (CDE)
- CORNELL DUBLIER
- DUBILIER
- CDC
- COR
- CORNELL DUB
- CORNELL DUBILIER ELECTRONICS INC
- CORNEL
- CORNELL DUBILIE
- CAP
- Cornell Dubilier - CDE
- DUB
- Cornell Dubilier / Illinois Capacitor
- CORNELL DUBI
- ELMENCO
- CORN DUB
- Cornell Dubilier Electron
- Cornell Dubilier Knowles
- CORNELL DUBILIER MARKETING
- CORNELL DUBLIER ELECTRONICS
- DUBIL
- CORNELL DUBILIER ELE
- CDE
- Illinois Capacitor
Inventory History
3 month trend: +8.29%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageRadial
Dielectric MaterialMica
MountPCB, Through Hole
Number of Pins2
Number of Terminals2
Technical
Capacitance3.9 nF
FeaturesGeneral Purpose
Max Operating Temperature125 °C
Military StandardNot
Min Operating Temperature-55 °C
PackagingBulk
Schedule B8532290020
Temperature Coefficient70 ppm/°C
TerminationRadial
Tolerance5 %
Voltage500 V
Voltage Rating500 V
Voltage Rating (DC)500 V
Dimensions
Depth7.9 mm
Height14.2 mm
Height - Seated (Max)14.1986 mm
Lead Diameter800 µm
Lead Pitch8.7 mm
Length17.5 mm
Terminal Pitch8.7 mm
Width7.9 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for Cornell Dubilier CD19FD392JO3F.
Compliance
Environmental Classification
Radiation HardeningNo
REACH SVHCNo
RoHSCompliant
