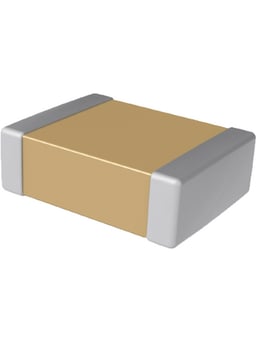

KEMET C1808C102KGRACTU

Name: KEMET C1808C102KGRACTU
Brand: KEMET
SKU: C1808C102KGRACTU
Price: 0.3 USD
Availability: InStock

Multilayer Ceramic Capacitor, 1000 pF, 2000 V, ± 10%, X7R, 1808 [4520 Metric]

Datasheet

Price and Stock

Distributor		SKU		MOQ	Pkg
Mouser		80-C1808C102KGR	38,762	1	Tape & Reel	0.300	0.129	0.117	0.099	0.094	2d
TME		C1808C102KGRAC	1,099	10			1.061*	0.438*	0.380*	0.214*	3d
Avnet		C1808C102KGRACTU	9,000	1K					0.472	0.472	3d
Arrow Electronics		C1808C102KGRACTU	3,004	1	Cut Tape	0.300	0.139	0.100	0.088	0.082	1d
Verical	2	C1808C102KGRACTU	3,004	106					0.088	0.082	1d

Technical Specifications

Physical

Case/Package1808

Case Code (Imperial)1808

Case Code (Metric)4520

Dielectric MaterialCeramic

MountPCB, Surface Mount

Number of Pins2

Technical

Capacitance1 nF

DielectricX7R

Dissipation Factor2.5 %

Max Operating Temperature125 °C

Min Operating Temperature-55 °C

PackagingCut Tape

Schedule B8532240020

TerminationSMD/SMT

Tolerance10 %

Voltage2 kV

Voltage Rating2 kV

Voltage Rating (AC)2 kV

Voltage Rating (DC)2 kV

Dimensions

Depth2 mm

Height1.6 mm

Length4.7 mm

Thickness1.7526 mm

Width2.0066 mm

Inventory History

3 month trend: -37.16%

CAD Models

Download symbol, footprint, and 3D STEP

Alternate Parts

1 part available

Documents

Download datasheets and manufacturer documentation for KEMET C1808C102KGRACTU.

Newark

Datasheet4 pages4 years ago

Datasheet21 pages11 years ago

Datasheet4 pages18 years ago

Datasheet1 page6 years ago

Farnell

Datasheet4 pages4 years ago

Datasheet1 page6 years ago

Datasheet1 page8 years ago

element14 APAC

Datasheet1 page8 years ago

Datasheet1 page7 years ago

Electro Sonic

Datasheet21 pages10 years ago

Upverter

Datasheet22 pages5 years ago

TME

Datasheet1 page7 years ago

Datasheet22 pages7 years ago

Datasheet740 pages7 years ago

RS (Formerly Allied Electronics)

Datasheet25 pages8 years ago

Arrow Electronics

Datasheet1 page12 years ago

Inventory History

3 month trend:

-37.16%

Alternate Parts

This Part

Alternate Parts

KEMETC1808C102KGRACTU

KEMETC1808X102KGRACAUTO

Price @ 1000

$ 0.099

$ 0.84

Stock

1,048,922

41,587

Authorized Distributors

Capacitance

1 nF

Dielectric

X7R

Mount

PCB, Surface Mount

Case/Package

1808

Voltage Rating (DC)

2 kV

Tolerance

10 %

Height

1.6 mm

Engineering Resources

View Evaluation kits and Reference designs for KEMET C1808C102KGRACTU.

Related Parts

Descriptions

Descriptions of KEMET C1808C102KGRACTU provided by its distributors.

Multilayer Ceramic Capacitor, 1000 pF, 2000 V, ± 10%, X7R, 1808 [4520 Metric]

Avnet

Cap Ceramic 0.001uF 2000V X7R 10% Pad SMD 1808 125°C Low ESR Medical T/R

Arrow.cn

1808 C 1nF Ceramic Multilayer Capacitor, 2000 VDC, +125degC, X7R Dielec, +/-10% | KEMET C1808C102KGRACTU

RS (Formerly Allied Electronics)

Ceramic Capacitor, Multilayer, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.001uF, Surface Mount, 1808

Semicontronic

Cap 0.001Uf 2000Vdc X7R 10% Smd 1808 Rohs Compliant: Yes |Kemet C1808C102KGRACTU

Newark

CAP, 1000PF, 2 KV, 10%, X7R, 1808; Capacitance: 1000pF; Voltage Rating: 2kV; Ceramic Capacitor Case: 1808 [4520 Metric]; Capacitance Tolerance: ± 10%; Dielectric Characteristic: X7R; Product Range: C Series KEMET; Operating Te
