Analog Devices ADM213EARZ
$ 1.607
Production
Inventory History
3 month trend: +5.23%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Datasheets & Documents
Download datasheets and manufacturer documentation for Analog Devices ADM213EARZ.
CAD Models
Download Analog Devices ADM213EARZ symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
 EE Concierge | SymbolFootprint | ||
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 1.607
$ 1.752
$ 1.752
Stock
113,338
181,108
181,108
Authorized Distributors
6
5
5
Case/Package
SOIC
SOIC W
SOIC W
Number of Pins
28
28
28
Logic Function
Receiver, Transceiver
Receiver, Transceiver
Receiver, Transceiver
Interface
RS-232
RS-232
RS-232
Number of Drivers
4
4
4
Number of Receivers
5
5
5
Data Rate
230 kbps
120 kbps
120 kbps
Receiver Hysteresis
650 mV
650 mV
650 mV
Simplex/Duplex
Full Duplex
Full Duplex
Full Duplex
Min Supply Voltage
4.5 V
4.5 V
4.5 V
Max Supply Voltage
5.5 V
5.5 V
5.5 V
Supply Chain
Lifecycle StatusProduction (Last Updated: 3 years ago)
Manufacturer Lifecycle StatusPRODUCTION (Last Updated: 3 years ago)
Related Parts

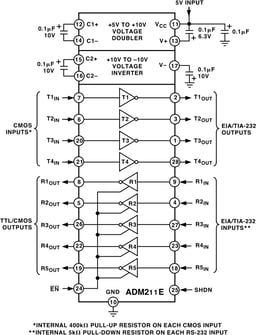

Analog DevicesADM211EARZ
Quad Transmitter Quint Receiver RS-232 28-Pin SOIC W Tube / IC TXRX RS232 5V 0.1UF 28SOIC
Descriptions
Descriptions of Analog Devices ADM213EARZ provided by its distributors.
Quad Transmitter Quint Receiver RS-232 28-Pin SOIC W Tube
EMI/EMC-Compliant, 15 kV ESD Protected, RS-232 Line Drivers/Receivers
RS232 TRANSCEIVER, -40 TO 85DEG C; IC Type:RS232 Transceiver; No. of Receivers:5Receivers; No. of Transmitters:4; Communication Mode:Full Duplex; Data Rate Max:230Kbps; Supply Voltage Min:4.5V; Supply Voltage Max:5.5V; Fail Safe:- RoHS Compliant: Yes
Manufacturer Aliases
Analog Devices has several brands around the world that distributors may use as alternate names. Analog Devices may also be known as the following names:
- Analog Devices Inc
- ANALOG
- ANALOG DEVICE
- ADI
- ANALOG DEV
- AD
- ANA
- PMI
- Analog Devices Inc/Maxim Integrated
- ADV
- ADA
- ANALOG DEVIC
- PMI/AD
- ANALOG DEVI
- AD/PMI
- STOCK
- Analog Devices / Linear Technology
- ANALOG INTERGRATIONS CORP
- AD - Analog Devices
- PRECISION MONOLITIC INC
- ADI (Analog Devices Inc)
- ANADEV
- Analog Devices / Hittite
- ANALOG DEVICES (ADI)
- ANLOGDEVIC
- Analog Devices Inc.
- Maxim Analog Devices
- Analog Devices / Maxim Integrated
Inventory History
3 month trend: +5.23%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageSOIC
MountSurface Mount
Number of Pins28
Technical
Data Rate230 kbps
ESD ProtectionYes
InterfaceRS-232
Logic FunctionReceiver, Transceiver
Max Operating Temperature85 °C
Max Supply Current13 mA
Max Supply Voltage5.5 V
Min Operating Temperature-40 °C
Min Supply Voltage4.5 V
Nominal Supply Current3.5 mA
Number of Channels4
Number of Drivers4
Number of Receivers5
Number of Transceivers1
Number of Transmitters4
Operating Supply Current13 mA
Operating Supply Voltage5 V
PackagingBulk
Receiver Hysteresis650 mV
Simplex/DuplexFull Duplex
Dimensions
Height2.65 mm
Length18.1 mm
Width7.6 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for Analog Devices ADM213EARZ.
