Bourns 3299X-1-201
$ 3.002
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 3299X-1-201 | 6 | 10 | Bulk | ||||||||
| Master Electronics | 3299X-1-201 | 6 | 10 | |||||||||
| Arrow Electronics | 3299X-1-201 | 0 | 200 | |||||||||
| RS (Formerly Allied Electronics) | 73647292 | 0 | 200 | Bulk | 14h | |||||||
| Avnet | 3299X-1-201 | 0 | 200 | 23h |
Inventory History
3 month trend: +0.00%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 3.002
$ 1.636
Stock
4,455
16,732
Authorized Distributors
6
6
Resistance
200 Ω
200 Ω
Mount
Panel, Through Hole
PCB, Panel, Through Hole
Case/Package
Radial
Radial
Termination
Pin
Pin
Number of Turns
25
25
Tolerance
10 %
10 %
Power Rating
500 mW
500 mW
Composition
Cermet
Cermet
Temperature Coefficient
100 ppm/°C
100 ppm/°C
Related Parts

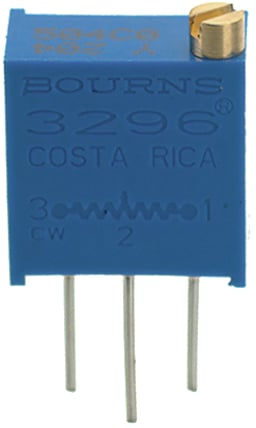

Bourns3296Y-1-201LF
Cermet trimmer potentiometer, 25 turns, 200 Ω, 0.5 W, THT, on top, 3296Y-1-201LF
Bourns3299W-1-201LF
Cermet trimmer potentiometer, 25 turns, 200 Ω, 0.5 W, THT, on top, 3299W-1-201LF
Bourns3296W-1-201LF
Cermet trimmer potentiometer, 25 turns, 200 Ω, 0.5 W, THT, on top, 3296W-1-201LF
Descriptions
Descriptions of Bourns 3299X-1-201 provided by its distributors.
Res Cermet Trimmer 200 Ohm 10% 1/2W 25(Elec)Turn 2.29mm (11.05 X 6.1 X 10.03mm) Pin Thru-Hole Tube
Trimmer, Cermet, 0.5W, 200ohm, 300V, 10% +/-Tol, 100ppm/Cel, 25 Turn(s)
Multi-Turn Trimmer Potentiometers 200ohms Standoffs Horizontal Adjust
SEALED,CERMET,3/8IN,25TURNS, 200,10%,SIDE,X,BULK<AZ
TRIMMER 200 OHM 0.5W PC PIN SIDE
Manufacturer Aliases
Bourns has several brands around the world that distributors may use as alternate names. Bourns may also be known as the following names:
- Bourns Inc
- BOURN
- BNS
- BOU
- BOUR
- BOURNES
- TRIMPOT
- BRNS
- BRN
- POT
- Bourns Electronics
- BOUNS
- POWER INNOVATIONS
- BOURNS INC (VA)
- BOURNS AG
- Bourns Incorporated
- POWER INNOVA
- POWER INNOVATION
- BNS/B0007
- Bourns Electronics GmbH
- BOURNS INC TRIMPOT DIV
- bourns net
- BOURNS (MC)
- BOUNRS
- power inno
- Bourns Inc.
Inventory History
3 month trend: +0.00%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageRadial
ColorBlue
MountPanel, Through Hole
Number of Terminals3
Weight992.233309 mg
Technical
CompositionCermet
Max Operating Temperature125 °C
Max Power Dissipation500 mW
Min Operating Temperature-55 °C
Number of Turns25
Power Dissipation500 mW
Power Rating500 mW
Resistance200 Ω
TaperLinear
Temperature Coefficient100 ppm/°C
TerminationPin
Tolerance10 %
Voltage Rating (DC)500 V
Working Voltage300 V
Dimensions
Height10.03 mm
Lead Diameter510 µm
Lead Length6.22 mm
Length10.033 mm
Thickness5.59 mm
Width6.1 mm
Compliance
Environmental Classification
Lead FreeContains Lead
REACH SVHCNo
RoHSNon-Compliant
