Phoenix Contact 2904598
$ 94.09
Production
Inventory History
3 month trend: +106%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Datasheets & Documents
Download datasheets and manufacturer documentation for Phoenix Contact 2904598.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 94.09
$ 155.16
Stock
16,017
2,837
Authorized Distributors
6
4
Case/Package
-
100
Number of Pins
-
-
Number of Outputs
1
1
Min Input Voltage
85 V
85 V
Max Input Voltage
264 V
264 V
Output Voltage
-
24 V
Output Current
-
2 A
Output Power
-
48 W
Isolation Voltage
-
4 kV
Efficiency
92.6 %
88 %
Descriptions
Descriptions of Phoenix Contact 2904598 provided by its distributors.

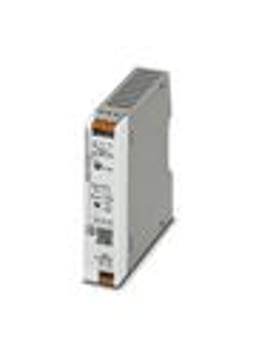

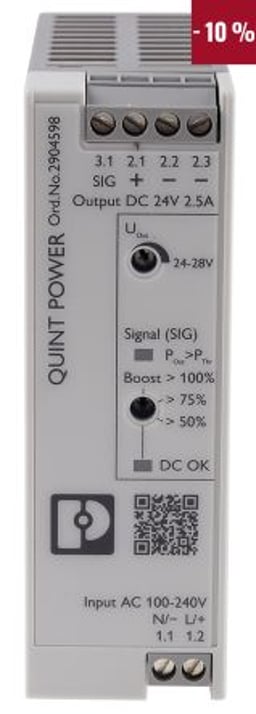

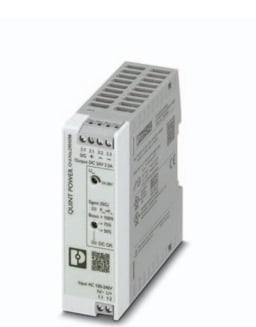

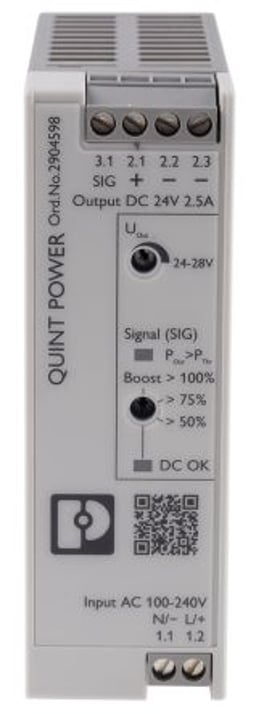

Power Supply, ACDC, 24VDC, 2.5A, 60W, DIN Rail Mount, QUINT POWER Series, GEN 4
2904598 - Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A. Alternative item: 2909576
Phoenix Contact Switching Power Supply; QUINT4-PS/1AC/24DC/2.5/SC; 24VDC OUT; 2.5A; 85-264VAC/90-350VDC IN; Single Phase; DIN Rail Mount; Plastic; Screw Connection
Power Supply, Ac-Dc, 24V, 2.5A; No. Of Outputs:1 Output; Output Power Max:60W; Output Voltage - Output 1:24V; Output Current - Output 1:2.5A; Output Voltage - Output 2:-; Output Current - Output 2:-; Output Voltage - Output 3:-; Rohs Compliant: Yes |Phoenix Contact 2904598.
Outputs = 1 / Output Voltage 1 V = 24 / Output Current 1 A = 2.5 / Output Voltage Nominal 1 V = 24 / Output Type = Fixed / Input Voltage Nominal = 100 ... 240 VAC / Rated Power W = 120 / Input Voltage Min. V = 240 / Input Voltage Max. V = 100 / Insulation Voltage kV = 4 / Ripple & Noise (V) mV = 40 / Termination Type = Screw Terminal / Series = QUINT4-PS / Efficiency % = 92.6 / MTBF h = 734000 / Protection Rating = IP20 / Operating Temperature Min. °C = -25 / Operating Temperature Max. °C = 70 / Depth mm = 90 / Height mm = 99 / Width mm = 32
Manufacturer Aliases
Phoenix Contact has several brands around the world that distributors may use as alternate names. Phoenix Contact may also be known as the following names:
- PHOENIX
- PHEONIX
- PHO
- PHOENI
- PHX
- PHOE
- PHOENIX CONTACTS
- PHOENX
- PHOENIX CONTACT INC
- PHOENIX CONT
- PHOENIX CONTACT GMBH & CO KG
- PHOENIX CONTAC
- PHEONIX CONTACT
- PHOENIX CONTACT POWER
- Phoenix Contact GmbH & Co KG
- Phoenix Contact GmbH & Company
- Phoenix Contact Canada
- PHOENIX CONTACT INC - POWER
- Picker Components
- PHOENIX CONTACT (VA)
- PHOENIXUS
- PHOENIX CONTACT GMBH and COKG
- PHÖNIX CONTACT
- Phoenic Contact
- PHOENIXCON
Inventory History
3 month trend: +106%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Technical
Efficiency92.6 %
Max Input Voltage264 V
Max Operating Temperature70 °C
Max Output Current2.5 A
Max Output Power60 W
Max Output Voltage28 V
Max Switching Frequency150 kHz
Min Input Voltage85 V
Min Operating Temperature-25 °C
Min Output Voltage24 V
Nominal Input Voltage120 V
Nominal Output Voltage24 V
Number of Circuits1
Number of Outputs1
Schedule B8504407001
