Vishay 199D686X96R3D1V1
$ 1.263
Production
Inventory History
Inventory history trend unavailable
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Datasheets & Documents
Download datasheets and manufacturer documentation for Vishay 199D686X96R3D1V1.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 1.263
$ 1.26
$ 1.26
Stock
77
8,524
8,524
Authorized Distributors
2
3
3
Capacitance
68 µF
68 µF
68 µF
Mount
-
Through Hole
Through Hole
Case/Package
Radial
Radial
Radial
Voltage Rating (DC)
6.3 V
6.3 V
6.3 V
Tolerance
10 %
10 %
10 %
ESR (Equivalent Series Resistance)
-
-
-
Leakage Current
4 µA
4 µA
4 µA
Dissipation Factor
8 %
-
-
Related Parts

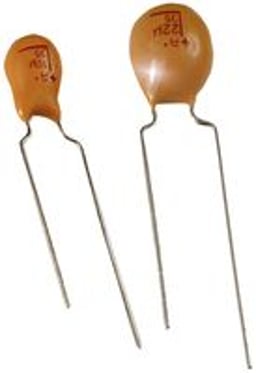

KYOCERA AVXTAP686K006SCS
Cap Tant Solid 68uF 6.3V 10% (6.5 X 10mm) Radial 2.5mm 1.8 Ohm 125°C Bulk
KEMETT350G686K006AT
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6V, 10% +Tol, 10% -Tol, 68uF, Through Hole Mount
KEMETT350G686K006AS
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6V, 10% +Tol, 10% -Tol, 68uF, Through Hole Mount
Descriptions
Descriptions of Vishay 199D686X96R3D1V1 provided by its distributors.
Cap Tant Solid 68uF 6.3V 10% (6 X 10.16mm) Radial 2.54mm 125°C Bulk
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 68uF, Through Hole Mount
Tantalum Capacitors - Solid Leaded 68uF 6.3volts 10% D case Radial
Manufacturer Aliases
Vishay has several brands around the world that distributors may use as alternate names. Vishay may also be known as the following names:
- VIS
- VISH
- VISHAY INTERTECHNOLOGY INC
- Vishay Thin Film
- VISHA
- Vishay Intertechnology
- Vishay Semiconductors
- VISAHY
- Vishay Intertech
- VISHY
- VISHAY INTERTECHNOLOGY ASIA PTE LTD
- Vishay Intertechnologies
- Vishay General Semiconductor - Diodes Division
- Vishay Semiconductor Opto Division
- VSHAY
- VISH/IR
- VSHY
- VSH
- VISHAY INTERTECHNOLOGY ASIA PT
- VISHAY ELECTRONIC
- VISHAY AMERICAS INC
- Vishay Semiconductor Diodes Division
- VISHAY OPTO
- VISHAY FOIL RESISTORS
- Vishay Polytech
- Vishay Semiconductor
- Vishay Sfernice
- Vishay Siliconix
- Vishay Dale
- Vishay BCcomponents
- Vishay Angstrohm
- Vishay Draloric
Inventory History
Inventory history trend unavailable
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageRadial
Number of Pins2
Number of Terminals2
Technical
Capacitance68 µF
Dissipation Factor8 %
Leakage Current4 µA
Max Operating Temperature125 °C
Min Operating Temperature-55 °C
PackagingBulk
TerminationRadial
Tolerance10 %
Voltage Rating6.3 V
Voltage Rating (DC)6.3 V

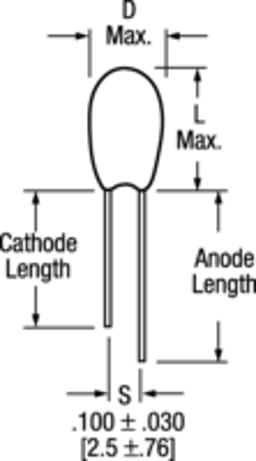

Dimensions
Diameter6 mm
Height10.16 mm
Lead Pitch2.54 mm
Length6 mm
Terminal Pitch2.54 mm
Width6 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for Vishay 199D686X96R3D1V1.
Compliance
Environmental Classification
Radiation HardeningNo
REACH SVHCYes
RoHSNon-Compliant
