Vishay 199D685X9035D1V1E3
$ 1
Production
Inventory History
3 month trend: +245%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Datasheets & Documents
Download datasheets and manufacturer documentation for Vishay 199D685X9035D1V1E3.
Alternate Parts
This Part
Alternate Parts
Price @ 1000
$ 1
$ 1.194
$ 1.194
Stock
9,255
1,074
1,074
Authorized Distributors
6
5
5
Capacitance
6.8 µF
6.8 µF
6.8 µF
Mount
PCB, Through Hole
Through Hole
Through Hole
Case/Package
Radial
Radial
Radial
Voltage Rating (DC)
35 V
35 V
35 V
Tolerance
10 %
10 %
10 %
ESR (Equivalent Series Resistance)
-
-
-
Leakage Current
2.3 µA
2.3 µA
2.3 µA
Dissipation Factor
6 %
-
-
Related Parts

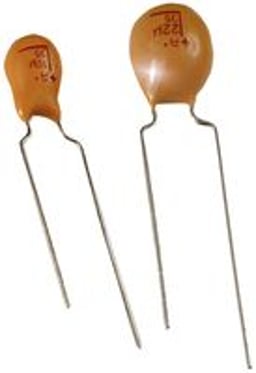

KYOCERA AVXTAP685K035SCS
Cap Tant Solid 6.8uF 35V 10% (6 X 10mm) Radial 2.5mm 2.5 Ohm 125°C Bulk
KYOCERA AVXTAP685K035SRW
Cap Tant Solid 6.8uF 35V 10% (6 X 10mm) Radial 2.5mm 2.5 Ohm 125°C T/R
KYOCERA AVXTAP685K025SCS
Cap Tant Solid 6.8uF 25V 10% (5 X 9mm) Radial 2.5mm 3.1 Ohm 125°C Bulk
Descriptions
Descriptions of Vishay 199D685X9035D1V1E3 provided by its distributors.
Cap Tant Solid 6.8uF 35V 10% (6 X 10.16mm) Radial 2.54mm Bulk
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 6.8uF, Through Hole Mount
CAPACITOR, TANTALUM, CAP 6.8 UF, TOL 10%, VOL-RTG 35 VDC, RADIAL, CASE D
199D Series 6.8 uF ±10 % 35 V LS=2.54mm Radial Electrolyte Tantalum Capacitor
Manufacturer Aliases
Vishay has several brands around the world that distributors may use as alternate names. Vishay may also be known as the following names:
- VIS
- VISH
- VISHAY INTERTECHNOLOGY INC
- Vishay Thin Film
- VISHA
- Vishay Intertechnology
- Vishay Semiconductors
- VISAHY
- Vishay Intertech
- VISHY
- VISHAY INTERTECHNOLOGY ASIA PTE LTD
- Vishay Intertechnologies
- Vishay General Semiconductor - Diodes Division
- Vishay Semiconductor Opto Division
- VSHAY
- VISH/IR
- VSHY
- VSH
- VISHAY INTERTECHNOLOGY ASIA PT
- VISHAY ELECTRONIC
- VISHAY AMERICAS INC
- Vishay Semiconductor Diodes Division
- VISHAY OPTO
- VISHAY FOIL RESISTORS
- Vishay Polytech
- Vishay Semiconductor
- Vishay Sfernice
- Vishay Siliconix
- Vishay Dale
- Vishay BCcomponents
- Vishay Angstrohm
- Vishay Draloric
Inventory History
3 month trend: +245%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
1 part available
Technical Specifications
Physical
Case/PackageRadial
MountPCB, Through Hole
Number of Pins2
Number of Terminals2
Technical
Capacitance6.8 µF
Dissipation Factor6 %
FeaturesGeneral Purpose
Leakage Current2.3 µA
Max Operating Temperature125 °C
Min Operating Temperature-55 °C
PackagingBulk
PolarityPolar
Schedule B8532210040
TerminationRadial
Tolerance10 %
Voltage Rating35 V
Voltage Rating (DC)35 V
Dimensions
Diameter6 mm
Height10.16 mm
Height - Seated (Max)10.16 mm
Lead Pitch2.54 mm
Length6 mm
Terminal Pitch2.54 mm
Width6 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for Vishay 199D685X9035D1V1E3.
Compliance
Environmental Classification
China RoHSCompliant
Lead FreeLead Free
REACH SVHCYes
RoHSCompliant
Compliance Statements
