KYOCERA AVX VE13M00551K--

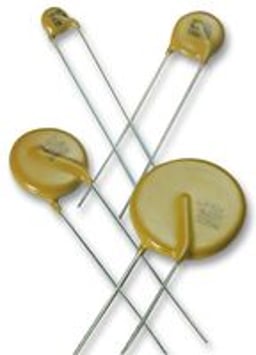

Varistor 774V 2.5KA Disc 13MM
Datasheet

Price and Stock

See all price breaks
DistributorSKUMinPkg
Component Stockers USAVE13M00551K--233
>1wk
North Star MicroNS-VE13M00551K--Contact
>1wk

Datasheets & Documents

Download datasheets and manufacturer documentation for KYOCERA AVX VE13M00551K--.

DigiKey

Datasheet13 pages19 years ago

CAD Models

Download KYOCERA AVX VE13M00551K-- symbol, footprint, and 3D STEP models from our trusted partners.

sourceeCADmCADFILES
Ultra Librarian
SymbolFootprint
Download
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.

Descriptions

Descriptions of KYOCERA AVX VE13M00551K-- provided by its distributors.

VARISTOR 774V 2.5KA DISC 13MM
VARISTOR, 550VAC; Series:VE; Voltage Rating, AC:550V; Suppressor Type:Varistors; Voltage Rating, DC:715V; Current, Peak Pulse IPP @ 8/20µs:2500A; Voltage, Clamping 8/20µs Max:1420V; Energy, Transient 10/1000µs Max:57J; RoHS Compliant: Yes
VARISTOR, 550VAC; Series:VE; Suppressor Type:Varistor; Peak Energy (10/1000uS):57J; Voltage DC:715V; Voltage Rating VAC:550V; SVHC:No SVHC (18-Jun-2010); Body Diameter:13mm; Capacitance:90pF; Clamping Voltage @ 8/20µs Max:1420V; Clamping Voltage Vc Max:1420V; External Depth:0.4mm; Lead Diameter:0.8mm; Lead Length:30mm; Lead Spacing:7.62mm; Operating Temperature Max:85°C; Package / Case:Radial; Peak Pulse Current IPP @ 8/20µs:2500A; RMS AC Voltage:550V; Response Time:0.25ns; Temperature Operating Min:-40°C; Transient Energy:57J; Varistor Voltage:860V; Varistor Voltage @ 1mA:774V; Varistor Voltage @ 1mA Max:946V
