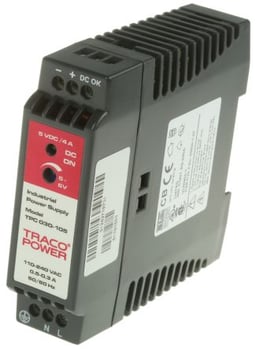

Traco Power TPC 030-105
$ 56.52
Production
Inventory History
3 month trend: +391%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for Traco Power TPC 030-105.
CAD Models
Download Traco Power TPC 030-105 symbol, footprint, and 3D STEP models from our trusted partners.
| source | eCAD | mCAD | FILES |
|---|---|---|---|
 SnapEDA | 3D | Download | |
 TraceParts | 3D | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Descriptions
Descriptions of Traco Power TPC 030-105 provided by its distributors.
AC-DC Regulated Power Supply Module, 1 Output, 20W, Hybrid
POWER SUPPLY, AC-DC,5V,4A,85-264V IN, ENCLOSED, DIN RAIL, INDUSTRIAL,20W, TPC SERIES
30 Watt AC/DC power supply, industrial, 85-264 VAC input, slim plastic housing, robust design, DIN-Rail
Traco Power
AC/DC Power Supply Single-OUT 5V 4A 20W 8-Pin
5Vdc 4A, 5 Volt DIN Rail Power Supply No Load Power Cons.
TracoPower TPC 030-105 DIN Rail Power Supply 5V 4A
Power supply, 5 to 6 VDC, 4 A, 20 W, TPC 030-105
DIN Rail Power Supply, 5V, 4A, 20W, Adjustable
DIN-rail PSU 8 -264 VAC,90-375 VDC,20W
Ac/Dc Din Rail Power Supply, Industrial, Adjustable, Fixed, 85 V, 264 V, 20 W, 5 V, 4 A Rohs Compliant: Yes |Traco Power TPC 030-105
POWER SUPPLY, AC/DC, 4A, 5V, 20W; No. of Outputs: 1 Output; Output Power Max: 20W; Output Voltage - Output 1: 5VDC; Output Current - Output 1: 4A; Output Voltage - Output 2: -; Output Current - Output 2: -; Output Voltage - Ou
Manufacturer Aliases
Traco Power has several brands around the world that distributors may use as alternate names. Traco Power may also be known as the following names:
- TRACO
- TRACO ELECTRONIC AG
- TRACO POWER PRODUCTS
- TRA
- Tracpower
- TRACO ELECTRONICS AG
- TRACOPOWE
- TRACO POWER NORTH AMERICA
- TRACO POWER NORTH AMER
- POWERSOLVE ELECTRONICS LTD
- TRACO ELEC AG
Inventory History
3 month trend: +391%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Body MaterialPlastic
MountDIN Rail
Number of Pins8
Weight160 g
Technical
Current - Output 14 A
Efficiency79 %
Max Input Voltage264 V
Max Operating Temperature70 °C
Max Output Current4 A
Max Output Power20 W
Max Output Voltage6 V
Max Voltage Rating (AC)264 V
Min Input Voltage85 V
Min Input Voltage (AC)85 V
Min Operating Temperature-25 °C
Min Output Voltage5 V
Nominal Input Voltage100 V
Nominal Output Voltage5 V
Number of Circuits1
Number of Outputs1
Output Current4 A
Output Power20 W
Voltage - Output 15 V
Dimensions
Depth26.5 mm
Height - Seated (Max)90.5 mm
Length96.5 mm
Width26.5 mm
