STMicroelectronics STM32F215ZET6
$ 9.287
Production
Inventory History
3 month trend: -13.97%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for STMicroelectronics STM32F215ZET6.
CAD Models
Download STMicroelectronics STM32F215ZET6 symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
 EE Concierge | SymbolFootprint |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Related Parts
STMicroelectronicsSTM32F205ZET6TR
High-performance ARM Cortex-M3 MCU with 512 Kbytes Flash, 120 MHz CPU, ART Accelerator
STMicroelectronicsSTM32F205ZET6
High-performance ARM Cortex-M3 MCU with 512 Kbytes Flash, 120 MHz CPU, ART Accelerator

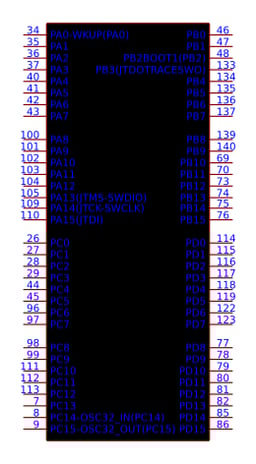

STMicroelectronicsSTM32F207ZET6
MCU 32-bit ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 144-Pin LQFP Tray
Descriptions
Descriptions of STMicroelectronics STM32F215ZET6 provided by its distributors.
RISC Microcontroller, 32-Bit, FLASH, CORTEX-M3 CPU, 120MHz, CMOS, PQFP144
MCU 32-bit STM32F ARM Cortex M3 RISC 512KB Flash 2.5V/3.3V 144-Pin LQFP
High-performance ARM Cortex-M3 MCU with 512 Kbytes Flash, 120 MHz CPU, ART Accelerator, HW crypto
STM32F Series 512 kB Flash 132 kB RAM 120 MHz 32-Bit Microcontroller - LQFP-144
MICROCONTROLLERS, ARM, - MCU 32BIT ARM CORTEX M3 CONNECTIVITY 512KB
MCU, 32BIT, CORTEX-M3, 120MHZ, LQFP-144
MCU, 32BIT, CORTEX-M3, 120MHZ, LQFP-144; Product Range: STM32 Family STM32F2 Series Microcontrollers; Architecture: ARM Cortex-M3; No. of Bits: 32bit; CPU Speed: 120MHz; Program Memory Size: 512KB; RAM Memory Size: 128KB; No.
Manufacturer Aliases
STMicroelectronics has several brands around the world that distributors may use as alternate names. STMicroelectronics may also be known as the following names:
- ST MICRO
- STM
- SGS
- SGS THOMSON
- INMOS
- STMICROE
- STMICROEL
- STMICR
- ST MIC
- ST MICROELECTRONIC
- SGS THOMPSON
- SESCOSEM
- STMICROELECT
- ST8
- STMICROELECTRON
- WAFERSCALE
- SGS-ATES
- ST MICROELECTRONICS SEMI
- ST/SGS
- ST MICROELECTRO
- SGST
- THOMS
- STMICROELE
- WAFERSCALE INTEGRATION INC
- SGS-Thomson Microelectronics
- ST Microeletronics
Inventory History
3 month trend: -13.97%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageLQFP
Number of Pins144
Number of Terminals144
Technical
Core ArchitectureARM
Data Bus Width32 b
Flash Memory Size512 kB
Frequency120 MHz
InterfaceCAN, I2C, I2S, SPI, UART, USART, USB
Max Frequency26 MHz
Max Operating Temperature85 °C
Max Power Dissipation500 mW
Max Supply Current81 mA
Max Supply Voltage3.6 V
Memory Size512 kB
Memory TypeFLASH
Min Operating Temperature-40 °C
Min Supply Voltage1.8 V
Nominal Supply Current2.5 µA
Number of A/D Converters3
Number of ADC Channels24
Number of Channels24
Number of D/A Converters2
Number of I2C Channels3
Number of I/Os114
Number of Programmable I/O114
Number of PWM Channels6
Number of SPI Channels3
Number of Timers/Counters2
Number of UART Channels2
Number of USART Channels4
Operating Supply Voltage2.7 V
PackagingTape & Reel (TR)
RAM Size128 kB
Watchdog TimerYes
Dimensions
Height1.45 mm
Length20 mm
Terminal Pitch500 µm
Width20 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for STMicroelectronics STM32F215ZET6.
Compliance
Environmental Classification
China RoHSCompliant
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCYes
RoHSCompliant
