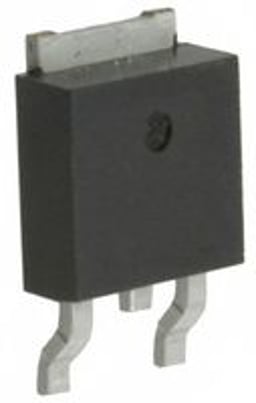

STMicroelectronics STD5N52K3
$ 0.591
Production
Inventory History
3 month trend: +0.00%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for STMicroelectronics STD5N52K3.
CAD Models
Download STMicroelectronics STD5N52K3 symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
 SnapEDA | Footprint | Download | |
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Related Parts

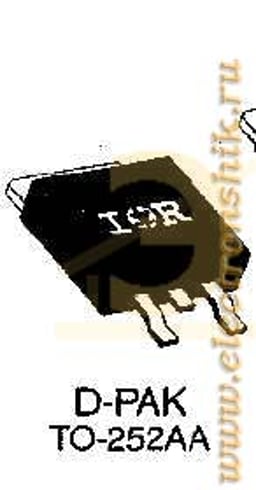

STMicroelectronicsSTD5NK50ZT4
N-channel 500 V, 1.22 Ohm typ., 4.4 A Zener-protected SuperMESH Power MOSFET in DPAK package
STMicroelectronicsSTD6NK50ZT4
N-CHANNEL 500V - 0.93͐2;6; - 5.6A DPAK Zener-Protected SuperMESH™ MOSFET
Descriptions
Descriptions of STMicroelectronics STD5N52K3 provided by its distributors.
N-channel 525 V, 1.2 Ohm typ., 4.4 A SuperMESH3(TM) Power MOSFET in DPAK package
STMICROELECTRONICS STD5N52K3 MOSFET Transistor, N Channel, 4.4 A, 525 V, 1.2 ohm, 10 V, 3.75 V
STD5N52K3 N-channel MOSFET Transistor, 4.4 A, 525 V, 3-Pin TO-252
Trans MOSFET N-CH 525V 4.4A 3-Pin(2+Tab) DPAK T/R / MOSFET N-CH 525V 4.4A DPAK
N-Channel 525 V 1.5 Ohm Surface Mount SuperMesh III Power MosFet - TO-252-3
Power Field-Effect Transistor, 4.4A I(D), 525V, 1.5ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-252
MOSFET, N CH, 525V, 4.4A, DPAK; Transistor Polarity:N Channel; Continuous Drain Current Id:4.4A; Drain Source Voltage Vds:525V; On Resistance Rds(on):1.2ohm; Rds(on) Test Voltage Vgs:10V; Threshold Voltage Vgs Typ:3.75V; Power Dissipation Pd:70W; Operating Temperature Min:-55°C; Operating Temperature Max:150°C; Transistor Case Style:TO-252; No. of Pins:3; MSL:MSL 1 - Unlimited; SVHC:No SVHC (18-Jun-2012); Operating Temperature Range:-55°C to +150°C
Manufacturer Aliases
STMicroelectronics has several brands around the world that distributors may use as alternate names. STMicroelectronics may also be known as the following names:
- ST MICRO
- STM
- SGS
- SGS THOMSON
- INMOS
- STMICROE
- STMICROEL
- STMICR
- ST MIC
- ST MICROELECTRONIC
- SGS THOMPSON
- SESCOSEM
- STMICROELECT
- ST8
- STMICROELECTRON
- WAFERSCALE
- SGS-ATES
- ST MICROELECTRONICS SEMI
- ST/SGS
- ST MICROELECTRO
- SGST
- THOMS
- STMICROELE
- WAFERSCALE INTEGRATION INC
- SGS-Thomson Microelectronics
- ST Microeletronics
Inventory History
3 month trend: +0.00%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageDPAK
MountSurface Mount
Number of Pins3
Number of Terminals2
Technical
Continuous Drain Current (ID)4.4 A
Drain to Source Breakdown Voltage525 V
Drain to Source Resistance1.5 Ω
Drain to Source Voltage (Vdss)525 V
Fall Time16 ns
Gate to Source Voltage (Vgs)30 V
Input Capacitance545 pF
Max Operating Temperature150 °C
Max Power Dissipation70 W
Min Breakdown Voltage525 V
Min Operating Temperature-55 °C
Number of Elements1
PackagingTape and Reel
Power Dissipation70 W
Rds On Max1.5 Ω
Resistance1.5 Ω
Rise Time11 ns
Threshold Voltage3.75 V
Turn-Off Delay Time29 ns
Turn-On Delay Time9 ns
Dimensions
Height2.4 mm
Length6.6 mm
Width6.2 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for STMicroelectronics STD5N52K3.
Compliance
Environmental Classification
China RoHSNon-Compliant
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCNo
RoHSCompliant
