RN202-1-02 by Schaffner

Schaffner RN202-1-02

Common Mode Chokes Dual 3mH 10kHz 1A 205mOhm DCR Thru-Hole

Obsolete

Manufacturer Page Datasheet

Price and Stock

Authorized Distributors

Non-Authorized Stocking Distributors

Non-Authorized Dealers

See all price breaks

	Distributor		SKU		Min	Pkg
	Weyland Electronics Group Pte. Ltd.		RN202-1-02	932	1	Tape & Reel	1.591	1.591	1.591	1.591	1.591	4d
	GreenChips		RN202-1-02	500			0.723	0.723	0.689	0.656	0.592	16h
	Quest		RN202-1-02	48			3.630	2.269	1.997	1.997	1.997	12h
	Shenzhen Glow Technology Co., Ltd		260981	Contact	10							4d
	QUARKTWIN TECHNOLOGY LTD		RN202-1-02	Contact								>1wk

Inventory History

Inventory history trend unavailable

Download symbol, footprint, and 3D STEP

Alternate Parts

0 parts available

Datasheets & Documents

Download datasheets and manufacturer documentation for Schaffner RN202-1-02.

IHS

Datasheet6 pages9 years ago

Farnell

Newark

Master Electronics

Electro Sonic

Supply Chain

Lifecycle StatusObsolete (Last Updated: 6 months ago)

Related Parts

EV20-1.2-02-3M3 by Schaffner

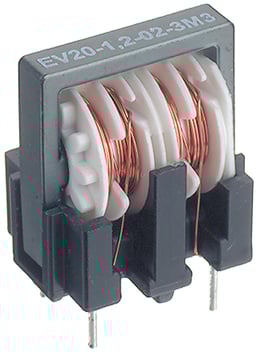

SchaffnerEV20-1.2-02-3M3
