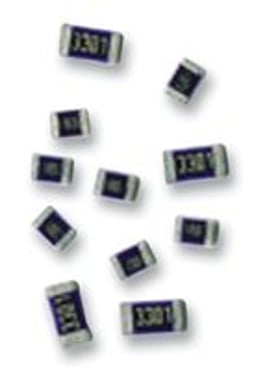

KOA Speer RK73H2ATTD4303F
$ 0.009
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey | 2019-RK73H2ATTD4303FCT-ND | 680 | 1 | Cut Tape | ||||||||
| Mouser | 660-RK73H2ATTD4303F | 18,050 | 1 | Tape & Reel | ||||||||
| TTI | RK73H2ATTD4303F | 0 | 10K | Tape & Reel | 16h | |||||||
| Arrow Electronics | RK73H2ATTD4303F | 0 | 5K | |||||||||
| TTI Europe | RK73H2ATTD4303F | 0 | 25K | Tape & Reel | 18h |
Inventory History
3 month trend: -3.10%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for KOA Speer RK73H2ATTD4303F.
CAD Models
Download KOA Speer RK73H2ATTD4303F symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 EE Concierge | SymbolFootprint |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Related Parts
Yageo GroupRC0805FR-07430KL
Res Thick Film 0805 430K Ohm 1% 0.125W(1/8W) ±100ppm/C Pad SMD T/R
Yageo GroupRC0805FR-13430KL
Fixed Resistor, Metal Glaze/thick Film, 0.125W, 430000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805
PanasonicERJ-6ENF4303V
Res Thick Film 0805 430K Ohm 1% 0.125W(1/8W) ±100ppm/C Pad SMD Automotive T/R
Descriptions
Descriptions of KOA Speer RK73H2ATTD4303F provided by its distributors.
Res Thick Film 0805 430K Ohm 1% 0.25W(1/4W) ±100ppm/C Pad SMD Automotive T/R
Fixed Resistor, Metal Glaze/thick Film, 0.25W, 430000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805
0805 (2012Metric) FIXED RESISTOR RK73H 0.079Lx0.049W 2.00mmx1.25mm 0.25W 1/4W 430kOhm ±100ppm/C
Res, 430K, 1%, 0.25W, 0805 Rohs Compliant: Yes |Koa RK73H2ATTD4303F
SMD Resistor Dimensions L x W x H: 2 x 1.25 x 0.5 mm Resistance technical notation: 430K Housing type: 0805 Rated voltage: 150 V Resistance: 430 kOhm
RESISTOR, 0805, 430K OHM, 1%; Resistance:430kohm; Resistance Tolerance:± 1%; Power Rating:125mW; Voltage Rating:150V; Temperature Coefficient:± 100ppm/°C; Resistor Element Material:Thick Film; Resistor Case Style:0805; Resistor Mounting:SMD; SVHC:No SVHC (19-Dec-2011); No. of Pins:2; Reel Quantity:5000; Series:RK73H
Manufacturer Aliases
KOA Speer has several brands around the world that distributors may use as alternate names. KOA Speer may also be known as the following names:
- KOA
- KOA Speer Electronics Inc
- KOA SPEER ELECTRONICS
- KSE
- KOA CORP
- SPEER
- KOA SPEER ELECTRONIC
- KOA EUROPE
- GLOBAL
- KOA CORPORATION
- KOA Speer Elec
- KSE INC
- KOA EUROPE GMBH
- KOA SPEER ELECT
- KOA ELECTRONICS
- KOA KAOHSIUNG CORPORATION
- KOA SPEAR ELECTRONICS
- KOA Kaohsiung Corp
- PowerL
- RALE
- KOA SPEEL
- KOA SPEAR
- KOA DENKO
- KOASPR
- KOA ELEC
- KOASPeeR
Inventory History
3 month trend: -3.10%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/Package0805
Case Code (Imperial)0805
Case Code (Metric)2012
MountSurface Mount
Number of Pins2
Number of Terminals2
Technical
CompositionThick Film
Max Operating Temperature155 °C
Military StandardNot
Min Operating Temperature-55 °C
Power Dissipation250 mW
Power Rating125 mW
Resistance430 kΩ
Schedule B8533210045
Temperature Coefficient100 ppm/°C
TerminationSMD/SMT
Tolerance1 %
Voltage Rating150 V
Working Voltage150 V
Dimensions
Depth1.25 mm
Height500 µm
Length2 mm
Width1.25 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for KOA Speer RK73H2ATTD4303F.
Compliance
Environmental Classification
China RoHSNon-Compliant
Lead FreeLead Free
REACH SVHCYes
RoHSCompliant
