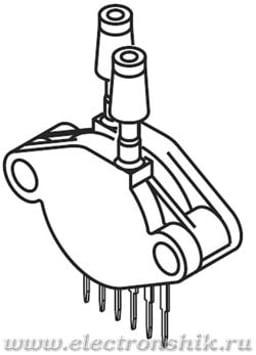

NXP Semiconductors MPX5100DP
$ 16.9
Production
Inventory History
3 month trend: +0.43%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for NXP Semiconductors MPX5100DP.
CAD Models
Download NXP Semiconductors MPX5100DP symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
 EE Concierge | SymbolFootprint | ||
 SnapEDA | Footprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Descriptions
Descriptions of NXP Semiconductors MPX5100DP provided by its distributors.
NXP MPX5100DP.. Pressure Sensor, Differential, 45 mV/kPa, 0 kPa, 100 kPa, 4.75 V, 5.25 V
Pressure Sensor 0.2V to 4.7V 0kPa to 100kPa Differential 6-Pin Case 867C-05
Pressure Sensor, 5V, 0/100Kpa, Sensor 6, Port Rohs Compliant: Yes
Sensor, 0 to 14.5 PSI, 4.5, +/- 2.5%, 1 ms, 5 VDC, 7 mAdc, 0.2 VDC, -40 C
MPX5100, 0 to 100 kPa Differential Gauge and Absolute Integrated Pressure Sensor
IC, SENSOR, DIFF PRESS 14.5 PSI; Pressure Type:Differential; Sensitivity, V/P:45mV/kPa; Supply Current:7mA; Sensor Case Style:867C-05; No. of Pins:6; Supply Voltage Range:4.75V to 5.25V; Operating Temperature Range:-40°C to +125°C; SVHC:No SVHC (20-Jun-2011); Base Number:5100; Connection Size:4.93mm; Operating Pressure Range:0 to 100kPa; Operating Temperature Max:125°C; Operating Temperature Min:-40°C; Package / Case:867C-05; Port Style:Dual Port; Supply Voltage Max:5.25V; Supply Voltage Min:4.75V; Termination Type:Through Hole
Manufacturer Aliases
NXP Semiconductors has several brands around the world that distributors may use as alternate names. NXP Semiconductors may also be known as the following names:
- NXP
- PHILIPS
- PHIL
- NXP USA Inc
- PHI
- PHILLIPS
- NXP SEMI
- NXP SEMICONDUCTOR
- PHILIPS/NXP
- PHILIPS SEMICONDUCTORS
- PHILIP
- NXP/PHILIPS
- Philips Semiconductor
- PHILPS
- PHILIPS COMPONENTS
- PHILIPS SEMI
- PHL
- PHLIPS
- NXP Semicon
- NXP / Freescale
- PHILL
- PHILIPS ECG
- Philips Semiconducto
- PHILLIP
- PHILI
- Philips Semiconductors
- NXP Semiconductors NV
- NXP
Inventory History
3 month trend: +0.43%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageSIP
MountThrough Hole
Number of Pins6
Weight5.241458 g
Technical
Accuracy2.5 %
Ambient Temperature Range High125 °C
Current Rating10 mA
Linearity2.5 %
Max Operating Temperature125 °C
Max Pressure14 PSI
Max Supply Voltage5.25 V
Max Supply Voltage (DC)5.25 V
Min Operating Temperature-40 °C
Min Supply Voltage4.75 V
Min Supply Voltage (DC)4.75 V
Nominal Supply Current7 mA
Operating Supply Current7 mA
Operating Supply Voltage5 V
Output TypeANALOG, Analog Voltage
Output Voltage4.7 V
PackagingBulk
Port StyleBarbed
Pressure TypeDifferential
Response Time1 ms
Schedule B8542310000
TerminationPCB
Dimensions
Height17.78 mm
Length29.46 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for NXP Semiconductors MPX5100DP.
Compliance
Environmental Classification
China RoHSCompliant
Halogen FreeNot Halogen Free
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCYes
RoHSCompliant
