ECS International ECS-2333-270-BN-TR
$ 0.745
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DigiKey | XC1951CT-ND | 1,295 | 1 | Cut Tape | ||||||||
| Mouser | 520-ECS-2333-270-BNT | 295 | 1 | Tape & Reel | ||||||||
| Onlinecomponents.com | ECS-2333-270-BN-TR | 0 | 1K | Bulk | ||||||||
| Master Electronics | ECS-2333-270-BN-TR | 0 | 1K | |||||||||
| Avnet | ECS-2333-270-BN-TR | 0 | 1K | 1d |
Inventory History
3 month trend: -31.00%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for ECS International ECS-2333-270-BN-TR.
CAD Models
Download ECS International ECS-2333-270-BN-TR symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 SnapEDA | SymbolFootprint | 3D | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Related Parts

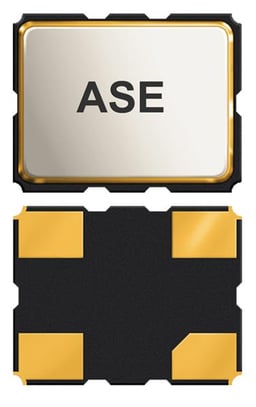

AbraconASE-27.000MHZ-LC-T
Oscillator XO 27MHz 50ppm 15pF (Stability) CMOS 55% 3.3V 4-Pin SMD T/R
AbraconASDM1-27.000MHZ-LC-T
Oscillator MEMS 27MHz ±50ppm (Stability) 15pF LVCMOS 55% 3.3V Automotive 4-Pin QFN SMD T/R
AbraconASEM1-27.000MHZ-LC-T
Oscillator MEMS 27MHz ±50ppm (Stability) 15pF LVCMOS 55% 3.3V Automotive 4-Pin QFN SMD T/R
Descriptions
Descriptions of ECS International ECS-2333-270-BN-TR provided by its distributors.
2333 Series 27 MHz 3.3 V ±50 ppm -40°C to 85°C SMT Subminiature Clock Oscillator
Oscillator XO 27MHz ±50ppm 15pF HCMOS 55% 3.3V 4-Pin Mini-SMD T/R
2333 Series 27 MHz -40°C ~ 85°C 3.3V 50ppm 3.20mm x 2.50mm Crystal Oscillator
Oscillator, 27 MHz, 50 ppm, SMD, 3.2mm x 2.5mm, 3.3 V, HCMOS, ECS-2333
Standard Oscillators |Ecs Inc International ECS-2333-270-BN-TR
CMOS Output Clock Oscillator, 27MHz Nom
XTAL OSC XO 27.0000MHZ HCMOS SMD
OSCILLATOR, 27MHZ, CMOS, 3.2MM X 2.5MM;
Manufacturer Aliases
ECS International has several brands around the world that distributors may use as alternate names. ECS International may also be known as the following names:
- ECS
- ECS Inc
- ECS Inc International
- ECS INTL
- ECS INC INTERNATIONA
- ELITEGROUP COMPUTER
- ECS International Inc
- ECS INC (VA)
- ECS INCORPORATED INTERNATIONAL
- ECS Semiconductor
- ECSINT
- ELECTRONIC CONNECTOR SERVICE INC
- ECS INTERN
- ECS Inc International - Crystals
- RXD/ECS INC
- CALIBER ELECTRONICS INC
- ECS IND
- ECS Internaal Inc
Inventory History
3 month trend: -31.00%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageSMD/SMT
MountSurface Mount
Number of Terminals4
Technical
Fall Time10 ns
Frequency27 MHz
Frequency Stability50 ppm
Load Capacitance15 pF
Max Operating Temperature85 °C
Max Supply Current13 mA
Max Supply Voltage3.63 V
Min Operating Temperature-40 °C
Min Supply Voltage2.97 V
Operating Supply Voltage3.3 V
Rise Time10 ns
Schedule B8541600060
TerminationSMD/SMT
Dimensions
Height990.6 µm
Lead Pitch1 mm
Length3.2004 mm
Width2.4892 mm
