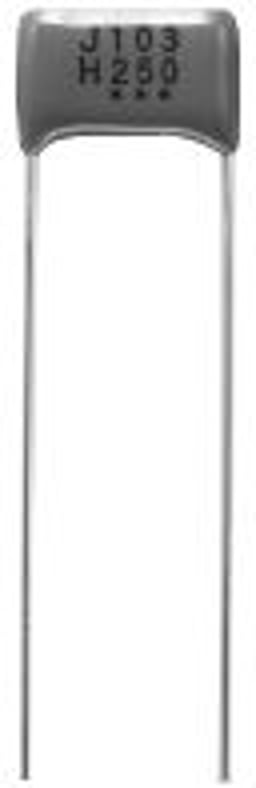

Panasonic ECQ-E6183KF
$ 0.144
Production
Price and Stock
Authorized Distributors
Non-Authorized Stocking Distributors
Non-Authorized Dealers
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Future Electronics | 7191390 | 1,000 | 1K | Bulk | ||||||||
| Onlinecomponents.com | ECQ-E6183KF | 2,217 | 1K | Bulk | ||||||||
| TME | ECQE6183KF | 459 | 1 | 8h | ||||||||
| Master Electronics | ECQ-E6183KF | 2,217 | 1K | |||||||||
| Verical | ECQ-E6183KF | 1,000 | 1K |
Inventory History
3 month trend: +11.58%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
CAD Models
Download Panasonic ECQ-E6183KF symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 SnapEDA | SymbolFootprint | 3D | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Related Parts
PanasonicECQ-E2183KF
Cap Film 0.018uF 250V PET 10%( 10.3 X 4.4 X 7.5mm) Radial 7.5mm 105C Bulk
PanasonicECQ-E4183KF
Cap Film 0.018uF 400V PET 10% (10.3 X 4.4 X 7.5mm) Radial 7.5mm 105C Bulk
PanasonicECQ-U2A183KL
Cap Film Suppression X2 0.018uF 250VAC PET 10% (15 X 5 X 11.5mm) Radial 12.5mm 85°C
Descriptions
Descriptions of Panasonic ECQ-E6183KF provided by its distributors.
Cap Film 0.018uF 630V PET 10% (12 X 4.9 X 10mm) Radial 10mm 105C Bulk
Film Capacitor, Polyester, 630V, 10% +Tol, 10% -Tol, 0.018Uf, Through Hole Mount
Film Chip Capacitor, 630V, 0.001µF, -40 to +105 ¡C, RoHS
Panasonic SCT
ECQE, Met Polyester Film Cap Radial Lead630VDC, 0.
Manufacturer Aliases
Panasonic has several brands around the world that distributors may use as alternate names. Panasonic may also be known as the following names:
- PAN
- Panasonic Electronic Components
- PANASONI
- Panasonic Electric Works
- PANASON
- PANA
- PANAS
- PANASO
- PANSONIC
- Panasonic Industrial Automation Sales
- PANASONIC INDUSTRIAL
- Panasonic Industrial Devices
- PANASONIC BATTERIES
- PANASONIC CORPORATION
- PANASOINC
- PANASONIC CORP
- PANISONIC
- PANOSONIC
- MATSUSHITA PANASONIC
- PANASONC
- PANASOIC
- AROMAT CORP
- PEW
- PANASONIC/MATSUSHITA
- PANS
- Panasonic Industrial Devices
- Panasonic Corporation of North America
Inventory History
3 month trend: +11.58%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageRadial
Dielectric MaterialPolyester
MountThrough Hole
Number of Terminals2
Technical
Capacitance18 nF
DielectricPET
Max Operating Temperature105 °C
Min Operating Temperature-40 °C
PackagingBulk
Tolerance10 %
Voltage Rating (DC)630 V
Dimensions
Depth4.9 mm
Height10 mm
Height - Seated (Max)10.9982 mm
Lead Diameter600 µm
Lead Length20 mm
Lead Pitch10 mm
Length12 mm
Terminal Pitch10 mm
Width4.9 mm
