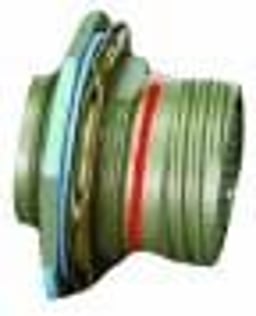

Amphenol D38999/24WE35AN
$ 44.352
Production
Inventory History
3 month trend: +4.02%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for Amphenol D38999/24WE35AN.
Related Parts
AmphenolD38999/20FE35AN
Conn MIL-DTL-38999 Circular PIN 55 POS Crimp ST Wall Mount 55 Terminal 1 Port

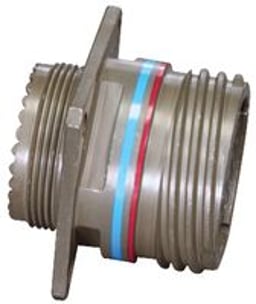

Amphenol AerospaceD38999/20WE35AA
Conn MIL-DTL-38999 Circular PIN 55 POS Crimp ST Wall Mount 55 Terminal 1 Port
AmphenolD38999/20FE35BA
Conn MIL-DTL-38999 Circular SKT 55 POS Crimp ST Wall Mount 55 Terminal 1 Port
Descriptions
Descriptions of Amphenol D38999/24WE35AN provided by its distributors.
Conn MIL-DTL-38999 Circular PIN 55 POS Crimp ST Jam Nut 55 Terminal 1 Port
MIL Series Connector, 55 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle
CONNECTOR MIL-DTL-38999 Receptacle, 55 sock. #22D, crimp, key A, Al-Cd, less cont.
CONNECTOR, CIRCULAR, SIZE 17, 55WAY; Military Specification: MIL-DTL-38999 Series III; Circular Connector Shell Style: Jam Nut Receptacle; No. of Contacts: 55Contacts; Circular Contact Type: Crimp Pin - Contacts Not Supplied
MIL-DTL-38999 III (D38999) harsh environment connectors consist of wall mount receptacles jam nut receptacles and straight self-locking RFI plugs. They are offered in 9 shell sizes and 54 insert arrangements utilizing M39029 contacts in sizes 22D 20
Jam Nut Connector Receptacle, Size 17, 55 Position, Panel; Military Specification:Mil-Dtl-38999 Serie Iii; Circular Connector Shell Style:Receptáculo Tipo Tuerca Jam; Núm. De Contactos:55; Coupling Style:Roscado; Contact Plating:Oro |Amphenol Aerospace D38999/24WE35AN
Manufacturer Aliases
Amphenol has several brands around the world that distributors may use as alternate names. Amphenol may also be known as the following names:
- AMPH
- AMPHENOL COMMERCIAL PRODUCTS
- AMPHENOL CORP
- AMPHENOL CORPORATION
- AMPHEN
- AMPHENOL CANADA
- APH
- AMPHENO
- AMPHENOL AIR LB
- AMPHE
- AMPHENOL CANADA CORP
- AMPHENOL COMMERCIAL
- Amphenol Interconnect India
- Amphenol Positronic
- AMPL
- Amphenol Thermometrics
- Amphenol Times Microwave Systems
- Amphenol SV Microwave
- Amphenol SGX Sensortech
- AMPHNL
- Amphenol All Sensors Corporation
- Amphenol Ltd UK
- Amphenol Limited
- Amphenol CONEC
- Amphenol Piher Sensing Systems
Inventory History
3 month trend: +4.02%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Body MaterialAluminium
Body PlatingCadmium
Contact MaterialCopper
Contact PlatingGold
MountBulkhead, Front Side Nut, Jam Nut, Panel
Number of Pins55
PlatingCadmium, Chromate
Shell FinishCadmium
Shell MaterialAluminium
Technical
Connector TypeCircular, Crimp, Receptacle
Contact GenderMale
Current Rating5 A
Fastening TypeThreaded
FeaturesShielded
GenderFemale
Max Operating Temperature175 °C
Military StandardMIL-DTL-38999
Min Operating Temperature-65 °C
Number of Contacts55
Number of Positions55
OrientationStraight
PackagingBulk
TerminationCrimp
Datasheets & Documents
Download datasheets and manufacturer documentation for Amphenol D38999/24WE35AN.
Compliance
Environmental Classification
Radiation HardeningNo
RatingsEnvironment Resistant
REACH SVHCNo
RoHSNon-Compliant
