Amphenol C016 10D006 010 12
$ 5.82
Production
Inventory History
3 month trend: -12.07%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for Amphenol C016 10D006 010 12.
Related Parts
Amphenol Sine SystemsC016 10F006 000 10
Connector Circular Housing Receptacle Cable Mount Socket 6+PE Position Polyamide 6.6
Descriptions
Descriptions of Amphenol C016 10D006 010 12 provided by its distributors.
Connector Circular Housing Receptacle Cable Mount Socket 6+PE Position Polyamide 6.6
Circular Cable 6 pos. Crimp Terminal Female Coupling Nut Connection Cable Mount
Circular Plastic Female Cable Connector; 6+Gnd crimp socket cont Black

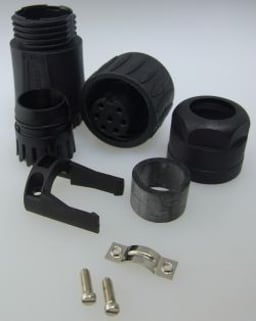

6+PE Female straight cable connector with internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating.
Amphenol
Plug ECOMATE C016 series, 7 pins (6+PE), female, straight, 13A, 250V, cable: 0.14-1.5mm2( AWG26-16), contacts sold separately, crimp, colour: black, IP67
SOCKET, FREE, ECOMATE, 6+PE; Product Range: Ecomate C016 Series; Circular Connector Shell Style: Cable Mount Receptacle; No. of Contacts: 7Contacts; Circular Contact Type: -; Coupling Style: -; Connector Body Material: Nylon 6
Shell Type = Socket / Mounting Type = Cable Mount / Body Orientation = Straight / Coupling Method = Threaded / Contacts = 7 / Contact Gender = Socket / Contact Termination Type = Crimp / Contact Plating = Gold / Silver / Shell Material = Polyamide 6.6 / Polyamide 6 / IP Rating = IP67 / Combustibility Class = UL 94 V-0 / Standards Met = UL Listed / Current Rating A = 12 / Voltage Rating V = 250 / Operating Temperature Min. °C = -40 / Operating Temperature Max. °C = 125 / Cable Entry Max. mm = 12.5 / Cable Entry Min. mm = 6 / Series = C16-1 eco/mate
Manufacturer Aliases
Amphenol has several brands around the world that distributors may use as alternate names. Amphenol may also be known as the following names:
- AMPH
- AMPHENOL COMMERCIAL PRODUCTS
- AMPHENOL CORP
- AMPHENOL CORPORATION
- AMPHEN
- AMPHENOL CANADA
- APH
- AMPHENO
- AMPHENOL AIR LB
- AMPHE
- AMPHENOL CANADA CORP
- AMPHENOL COMMERCIAL
- Amphenol Interconnect India
- Amphenol Positronic
- AMPL
- Amphenol SV Microwave
- Amphenol Thermometrics
- Amphenol Times Microwave Systems
- Amphenol SGX Sensortech
- AMPHNL
- Amphenol All Sensors Corporation
- Amphenol Ltd UK
- Amphenol Limited
- Amphenol CONEC
- Amphenol Piher Sensing Systems
Inventory History
3 month trend: -12.07%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Body MaterialNylon, Polyamide
ColorBlack
Contact MaterialSilver
Contact PlatingSilver
Dielectric MaterialPolyamide
Housing MaterialPolyamide
MountCable, Free Hanging
Number of Pins6
PlatingPolyamide
Technical
Contact GenderFemale
Contact Resistance5 mΩ
Current Rating13 A
Fastening TypeThreaded
GenderFemale
Insulation Resistance100 MΩ
Max Operating Temperature125 °C
Min Operating Temperature-40 °C
Number of Contacts6
Number of Ports1
OrientationStraight
TerminationCrimp
Voltage Rating250 V
Dimensions
Length73 mm
Wire/Cable Diameter12.5 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for Amphenol C016 10D006 010 12.
Compliance
Environmental Classification
ApprovalsCSA, UL, VDE
Radiation HardeningNo
RatingsDust Tight, IP65, IP67, Water Resistant, Waterproof
REACH SVHCNo
RoHSCompliant
