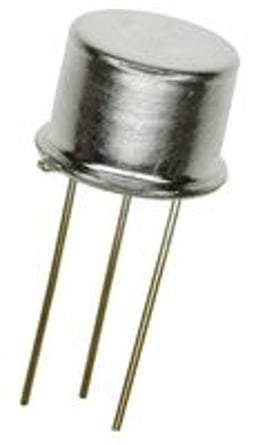

Analog Devices AD580SH
$ 21.75
Production
Inventory History
Inventory history trend unavailable
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for Analog Devices AD580SH.
CAD Models
Download Analog Devices AD580SH symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 EE Concierge | SymbolFootprint | ||
 SnapEDA | SymbolFootprint | Download | |
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Supply Chain
Lifecycle StatusProduction (Last Updated: 3 years ago)
Manufacturer Lifecycle StatusPRODUCTION (Last Updated: 3 years ago)
Descriptions
Descriptions of Analog Devices AD580SH provided by its distributors.
Three Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, MBCY3
High Precision 2.5 V IC Reference
V-Ref Precision 2.5V 3-Pin TO-52 Tube
EAR99 AD580 Bulk PRODUCTION (Last Updated: 3months ago) voltage reference device 10mA 40V 8muVp-p 55ppm/C
VOLTAGE REF, SERIES, 2.5V, TO-52-3; Voltage Reference Type:Series - Fixed; Product Range:AD580 Series; Reference Voltage:2.5V; Initial Accuracy:25mV; Temperature Coefficient:55ppm/°C; Voltage Reference Case Style:TO-52; MSL:- RoHS Compliant: Yes
Manufacturer Aliases
Analog Devices has several brands around the world that distributors may use as alternate names. Analog Devices may also be known as the following names:
- Analog Devices Inc
- ANALOG
- ANALOG DEVICE
- ADI
- ANALOG DEV
- AD
- ANA
- PMI
- Analog Devices Inc/Maxim Integrated
- ADV
- ADA
- ANALOG DEVIC
- PMI/AD
- ANALOG DEVI
- AD/PMI
- STOCK
- Analog Devices / Linear Technology
- ANALOG INTERGRATIONS CORP
- AD - Analog Devices
- PRECISION MONOLITIC INC
- ADI (Analog Devices Inc)
- ANADEV
- Analog Devices / Hittite
- ANALOG DEVICES (ADI)
- ANLOGDEVIC
- Analog Devices Inc.
- Maxim Analog Devices
- Analog Devices / Maxim Integrated
Inventory History
Inventory history trend unavailable
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageTO-52
Number of Pins3
Technical
Max Input Voltage40 V
Max Operating Temperature150 °C
Max Output Voltage2.5 V
Max Power Dissipation350 mW
Max Supply Voltage30 V
Min Input Voltage4.5 V
Min Operating Temperature-55 °C
Min Output Voltage2.5 V
Min Supply Voltage4.5 V
Nominal Supply Current1 mA
Number of Channels1
Number of Outputs1
Operating Supply Current1.5 mA
Output Current10 mA
Output TypeFixed
Output Voltage2.5 V
PackagingBulk
Quiescent Current1.5 mA
Reference TypeSeries
Reference Voltage2.5 V
Schedule B8542390000
Temperature Coefficient55 ppm/°C
Tolerance1 %
TopologyBuck
Dimensions
Height3.81 mm
Length5.84 mm
Width5.84 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for Analog Devices AD580SH.
Compliance
Environmental Classification
Lead FreeContains Lead
Radiation HardeningNo
REACH SVHCNo
RoHSCompliant
