HIROSE ELECTRIC A2-9PA-2.54DSA(71)
$ 0.9
Production
Inventory History
3 month trend: -9.81%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for HIROSE ELECTRIC A2-9PA-2.54DSA(71).
Related Parts
HIROSE ELECTRICA2-4PA-2.54DSA(71)
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag
HIROSE ELECTRICA2-1PA-2.54DSA(71)
Headers & Wire Housings 1P M PIN HEADER SR S TRAIGHT TYPE GOLD

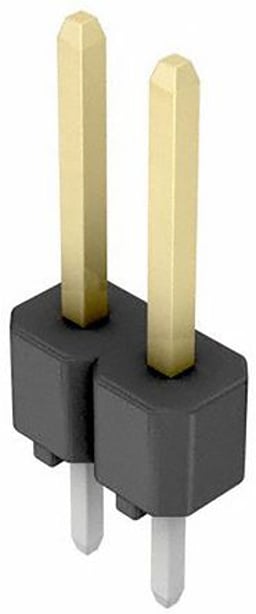

HIROSE ELECTRICA2-2PA-2.54DSA(71)
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Pack
Descriptions
Descriptions of HIROSE ELECTRIC A2-9PA-2.54DSA(71) provided by its distributors.
Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Individual
2.54mm Pitch High Density Connector, -55 ℃ to 85 ℃, RoHS
Hirose SCT
Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
2.54Mm Pitch High Density Connectors |Hirose/hrs A2-9PA-2.54DSA(71)
Headers & Wire Housings 9P M PIN HEADER SR S TRAIGHT TYPE GOLD
2.54mm 9 1 ピンヘッダー ストレート 22.56mm 圧着 200VAC 3A 1000MΩ以上/500VDC 15mΩ以下/0.1A 650VAC/1min. +85℃ -55℃ PBT樹脂/UL94V-0/黒色 黄銅 金メッキ 2.54mm 8.54mm
Manufacturer Aliases
HIROSE ELECTRIC has several brands around the world that distributors may use as alternate names. HIROSE ELECTRIC may also be known as the following names:
- HIROSE
- Hirose Electric Co Ltd
- HRS
- HIRO
- HIROSE ELECTRIC USA INC
- Hirose Connector
- HIROSE ELECT
- HIROSE ELECTRIC UK LTD
- HRS(Hirose)
- HIROS
- HIROSE(HRS)
- HIROSE ELECTRIC USA
- HIROSE ELECTRIC / HRS
- Hirose Electronic Co Ltd
- HIROSE ELECTRONIC
- Hirose Electric Americas
- HIROSE ELECTRIC GROUP
- Hirose Connectors
- HIROSE ELECTRIC EUROPE
- HIROSE ELECTRIC CO LTD (VA)
- Rose
- HIROSE ELECTRIC COMPANY LIMITE
- HIROSE (Strategic)
- 0533 HIROSE
- HIROSE(RoHS)
- Hirose Electric Co L
Inventory History
3 month trend: -9.81%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
ColorBlack
Contact MaterialBrass
Contact PlatingGold
Housing MaterialPBT
MountThrough Hole
Number of Pins9
Technical
Connector TypePlug
Contact GenderMale
Contact Resistance15 mΩ
Contact Voltage Rating (AC)200 V
Current Rating3 A
InsulationInsulated
Insulation Resistance1 GΩ
Max Operating Temperature85 °C
Min Operating Temperature-55 °C
Number of Positions9
Number of Rows1
OrientationStraight
PackagingBulk
TerminationSolder
Voltage Rating200 V
Dimensions
Contact Mating Length5.9944 mm
Contact Pitch2.54 mm
Height8.54 mm
Length22.56 mm
Pitch2.54 mm
Terminal Pitch2.54 mm
Width2.54 mm
