Wurth Elektronik 744823333
$ 3.401
Inventory History
3 month trend: -10.67%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for Wurth Elektronik 744823333.
CAD Models
Download Wurth Elektronik 744823333 symbol, footprint, and 3D STEP models from our trusted partners.
| source | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | Download | |
 EE Concierge | SymbolFootprint | ||
 SnapEDA | SymbolFootprint | 3D | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Descriptions
Descriptions of Wurth Elektronik 744823333 provided by its distributors.

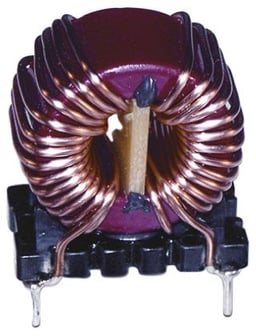

COMMON MODE CHOKE WE-CMB Data Line Filter, 2 Function(s), 250V, 2.5A, 4 Pin(s)
CHOKE, COMMON MODE, 0.0033H, 2.5A; Inductance: 3.3mH; Rated Current: 2.5A; Product Range: WE-CMB Series; SVHC: No SVHC (15-Jan-2019); DC Current Max: 2.5A; DC Current Rating: 2.5A; DC Resistance Max: 0.06ohm; Inductance Toleran
Product Type = Common Mode Power Line Choke / Core = Ferrite / Inductance mH = 3.3 / Voltage Rating VAC = 250 / Current Rating A = 2.5 / Shielding = Unshielded / Attenuation dB = 49 / Maximum DC Resistance mOhm = 60 / Operating Temperature Min. °C = -40 / Operating Temperature Max. °C = 125 / Series = WE-CMB / Pins = 4 / Termination Type = Radial Leads / Mounting Type = Through Hole / Length mm = 23.5 / Width mm = 13 / Height mm = 25.5
Manufacturer Aliases
Wurth Elektronik has several brands around the world that distributors may use as alternate names. Wurth Elektronik may also be known as the following names:
- WURTH
- Würth Elektronik
- WURTH ELECTRONICS
- Wurth Electronics Inc
- WUERTH ELEKTRONIK
- WUERTH
- WURTH ELEK
- WURTH ELECTRONIK
- Würth
- WURTH ELEKTRONI
- WURTH ELECTRONI
- WURTH ELEKTRO
- WURTH ELEC
- WURTH ELECTRONIC
- WURTH EKEKTRO
- WURTH ELECT
- Wurth Elektronik GmbH & Co KG
- WURTH ELEKTRONIK GMBH & CO KG
- WUERTH ELEKTRONIK GMBH & CO KG
- Würth Elektronik GmbH & Co KG
- WURTH ELEKTRONIK GMBH AND CO KG
- WURTH ELEKTR
- WURTH ELECTRONIC (PCB)
- WURTH ELECKTRONIK
- Würth Elektronik Group
Inventory History
3 month trend: -10.67%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageS
MountRadial, Through Hole
Number of Pins4
Technical
Ambient Temperature Range High70 °C
Ambient Temperature Range Low-40 °C
Current2.5 A
Current Rating2.5 A
DC Resistance (DCR)60 mΩ
Inductance3.3 mH
Inductance Tolerance30 %
Max DC Current2.5 A
Max Operating Temperature125 °C
Min Operating Temperature-40 °C
Number of Lines2
Series Resistance60 mΩ
TerminationRadial
Test Frequency10 kHz
Tolerance30 %
Voltage Rating250 V
Dimensions
Depth13.5 mm
Height25.5 mm
Lead Pitch7.5 mm
Length23.5 mm
Pin Length3 mm
Width13 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for Wurth Elektronik 744823333.
