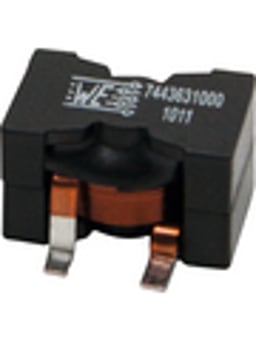

Wurth Elektronik 7443631000
$ 4.353
Inventory History
3 month trend: -29.08%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for Wurth Elektronik 7443631000.
CAD Models
Download Wurth Elektronik 7443631000 symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
 EE Concierge | SymbolFootprint | ||
 SnapEDA | SymbolFootprint | 3D | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Descriptions
Descriptions of Wurth Elektronik 7443631000 provided by its distributors.
Power Choke Shielded Wirewound 10uH 15% 100KHz Ferrite 16A 7.96mOhm DCR T/R
WE-HCF SERIES, SHIELDED WIRE-WOUND SMD INDUCTOR WITH FERRITE CORE, 10 UH
Inductor, Shielded, 10Uh, 23A, Smd; Inductance:10Μh; Rms Current (Irms):16A; Inductor Construction:Shielded; Saturation Current (Isat):23A; Product Range:We-Hcf Series; Inductor Case/Package:-; Dc Resistance Max:0.00796Ohm Rohs Compliant: Yes |Wurth Elektronik 7443631000
Manufacturer Aliases
Wurth Elektronik has several brands around the world that distributors may use as alternate names. Wurth Elektronik may also be known as the following names:
- WURTH
- Würth Elektronik
- WURTH ELECTRONICS
- Wurth Electronics Inc
- WUERTH ELEKTRONIK
- WUERTH
- WURTH ELEK
- WURTH ELECTRONIK
- WURTH ELEKTRONI
- WÜRTH
- WURTH ELECTRONI
- WURTH ELEKTRO
- WURTH ELEC
- WURTH ELECTRONIC
- WURTH EKEKTRO
- WURTH ELECT
- Wurth Elektronik GmbH & Co KG
- WURTH ELEKTRONIK GMBH & CO KG
- WUERTH ELEKTRONIK GMBH & CO KG
- Würth Elektronik GmbH & Co KG
- WURTH ELEKTRONIK GMBH AND CO KG
- WURTH ELEKTR
- WURTH ELECTRONIC (PCB)
- WURTH ELECKTRONIK
- Würth Elektronik Group
Inventory History
3 month trend: -29.08%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageNonstandard
Core MaterialFerrite
MountSurface Mount
Number of Pins2
Technical
Ambient Temperature Range High75 °C
Ambient Temperature Range Low-40 °C
CompositionWirewound
Current Rating16 A
DC Resistance (DCR)7.96 mΩ
Frequency13 MHz
Inductance10 µH
Inductance Tolerance15 %
Max DC Current16 A
Max Operating Temperature125 °C
Min Operating Temperature-40 °C
RMS Current (Irms)16 A
Saturation Current22 A
Self Resonant Frequency13 MHz
ShieldingShielded
TerminationSMD/SMT
Test Frequency100 kHz
Tolerance15 %
Dimensions
Depth21 mm
Height13.5 mm
Height - Seated (Max)13.9954 mm
Length20.8 mm
Width20.5 mm
Datasheets & Documents
Download datasheets and manufacturer documentation for Wurth Elektronik 7443631000.
