Descriptions
Descriptions of Wurth Elektronik 742792903 provided by its distributors.

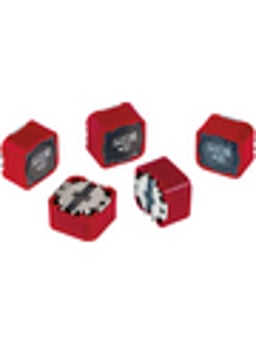

WE-PF SMT EMI Suppression Power Ferrite
FERRITE BEAD, 0.009OHM, 10A, SURFACE MOUNT-SMD; Ferrite Bead Case / Package:-; Impedance:340ohm; DC Current Rating:10A; Product Range:WE-PF Series; DC Resistance Max:9mohm; Impedance Tolerance:± 25%; Product Length:12mm RoHS Compliant: Yes
Product Type = EMI Suppression Power Ferrite / Core = Nickel Zinc Ferrite / Voltage Rating - DC V = 120 / Current Rating A = 10 / Impedance kOhm = 6 / Pins = 2 / Frequency MHz = 37 / Package Type = SMD / Maximum DC Resistance mOhm = 9 / Operating Temperature Min. °C = -40 / Operating Temperature Max. °C = 125 / Series = WE-PF / Termination Type = J-Lead / Length mm = 12 / Width mm = 12 / Height mm = 8 / Packaging = Tape & Reel
