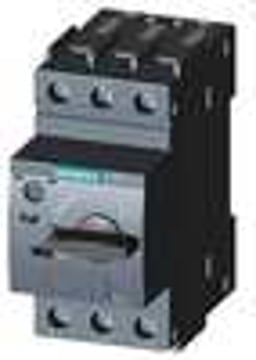

Siemens 3RV20111FA10

CIRCUIT BREAKER FOR MOTOR PROTECTION, S00 3.5-5A, SCREW, 3RV2 SERIES

Motor protection switch, 3 pole, 3.5 to 5 A, 5 A, screw connection, 3RV2011-1FA10

Siemens 3RV20111FA10 Circuit Breaker 3.5-5A 690V 45x97x97mm

Circuit Breaker Motor Protection Control 3Pole 4.9A 690VAC

SIEMENS 3RV2011-1FA10 Manual Motor Starter, 5 Rated Amps, 3.5-5.0 Amps Range

Manual Motor Starter, Not Applicable, 3 P, 3 Phase, Selector Switch, 5 A

THERMAL MAGNETIC CIRCUIT BREAKER;

SIEMENS CIRCUIT-BREAKER SZ S00, FOR MOTOR PROTEC

Siemens 3RV2011-1FA10 CIRCUIT BREAKER

CIRCUIT BREAKER SIZE S00, CLASS 10

3 Pole(s), 5A, 690VAC, Din Rail

Rated operating voltage max. VAC = 690 / Breaking capacity = 100 / Rated frequency min. Hz = 50 / Rated frequency max. Hz = 60 / Protection rating = IP 20 / Overload release min. A = 3.5 / Overload release max. A = 5 / Operating temperature min. °C = -20 / Operating temperature max. °C = 60 / Temperature compensation = Ja / Tripping class = Class 10 nach IEC 60947-4-1 / Utilisation category = AC 3 / Phase failure sensitivity = Yes / Height mm = 97 / Width mm = 45 / Depth mm = 91

Siemens 3RV20111FA10 SIRIUS Motor Protection Circuit Breaker. SIRIUS Motor Protection Circuit Breaker, 690 VAC, 5 A, 4 kW Power, 50/60 Hz Frequency, 6 kA Interrupt, S00 Frame, Thermomagnetic Trip, 3.5 to 5/65 A Trip, 3 Pole, 3 ph, Screw Connection, 18 to 14 AWG, 12 AWG Wire, IP20 Enclosure, DIN Rail/Snap-On/Threaded Mounting, -20 to 60 deg C, 97 mm H x 45 mm W x 97 mm D Dimensions. Additional Description: SIEM-3RV20111FA10 CIRCUIT BREAKER SIZE S00, CLASS 10. Catalog Description: Circuit-breaker sz s00, for motor protection, class 10, a-release 3.5...5a, n-release 65a, screw connection, standard sw. capacity.
