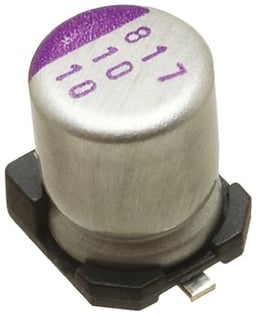

Panasonic 25SVPF82M
$ 0.482
Production
Inventory History
3 month trend: +46.48%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
CAD Models
Download Panasonic 25SVPF82M symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
 TraceParts | 3D | Download | |
 Ultra Librarian | SymbolFootprint | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Descriptions
Descriptions of Panasonic 25SVPF82M provided by its distributors.
Cap Aluminum Polymer 82uF 25VDC 20%( 8 X 6.9mm) SMD 0.028 Ohm 3000mA 5000h 105C T/R
SVPF Series 25 V 82 uF 105°C 5 k Hrs SMT OS-CON Aluminum Polymer Capacitor
CAPACITOR, ALUMINUM ORGANIC POLYMER, 25VDC,82UF,28MOHM,8X7MM, T&R
Aluminum Electrolytic Capacitor, Polarized, Aluminum (solid Polymer), 25V, 20% +Tol, 20% -Tol, 82uF, Surface Mount, 3333
Manufacturer Aliases
Panasonic has several brands around the world that distributors may use as alternate names. Panasonic may also be known as the following names:
- PAN
- Panasonic Electronic Components
- PANASONI
- Panasonic Electric Works
- PANASON
- PANA
- PANAS
- PANASO
- PANSONIC
- Panasonic Industrial Automation Sales
- PANASONIC INDUSTRIAL
- Panasonic Industrial Devices
- PANASONIC BATTERIES
- PANASONIC CORPORATION
- PANASOINC
- PANASONIC CORP
- PANISONIC
- PANOSONIC
- MATSUSHITA PANASONIC
- PANASONC
- PANASOIC
- AROMAT CORP
- PEW
- PANASONIC/MATSUSHITA
- PANS
- Panasonic Industrial Devices
- Panasonic Corporation of North America
Inventory History
3 month trend: +46.48%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Case/PackageRadial
MaterialPolymer
MountSurface Mount
Number of Pins7
Number of Terminals2
Technical
Capacitance82 µF
Dissipation Factor12 %
ESR (Equivalent Series Resistance)28 mΩ
Leakage Current410 µA
Life (Hours)5000 hours
Max Operating Temperature105 °C
Min Operating Temperature-55 °C
PolarityPolar
Ripple Current150 mA
Ripple Current (AC)3 A
Schedule B8532220020
TerminationSMD/SMT
Tolerance20 %
Voltage25 V
Voltage Rating25 V
Voltage Rating (DC)25 V
Dimensions
Diameter8 mm
Height6.9 mm
Height - Seated (Max)7.0104 mm
Length8.3 mm
Width8.3 mm
