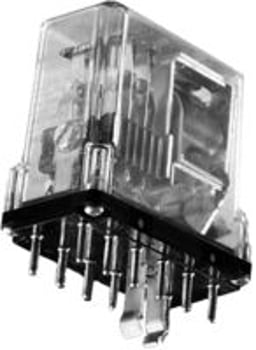

Struthers-Dunn 219BBXP-120VAC
$ 204.06
Production
Inventory History
3 month trend: +12.84%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for Struthers-Dunn 219BBXP-120VAC.
Related Parts
TE ConnectivityKRP-11AY-120
Electromechanical Relay 120VAC 2.25KOhm 5A DPDT(35.71x35.71)mm Socket General Purpose Relay
Descriptions
Descriptions of Struthers-Dunn 219BBXP-120VAC provided by its distributors.
Power Relay Electro Mechanical General Purpose 120VAC DPDT 10A 2NO 219 Series
Relay;E-Mech;Industrial;DPDT-NO;Cur-Rtg 5, 10A;Ctrl-V 120AC;Plug-In;12 Pin
Electromechanical Relay DPST-NO/DPDT 10A 120VAC 540Ohm Plug-In
Power/Signal Relay, 4PDT, Momentary, 4250mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Socket Mount
RELAY, DPDT-NO, 240VAC, 28VDC, 10A; Contact Configuration: DPDT, DPST-NO; Coil Voltage: 120VAC; Contact Current: 10A; Product Range: 219 Series; Relay Mounting: Socket; Coil Type: Non Latching; Contact Volt 60F3103
Relay, Dpdt-No, 240Vac, 28Vdc, 10A; Rango De Producto:Serie 219; Relé, Tipo:Power - General Purpose; Tipo De Bobina:Sin Enclavamiento; Contacto, Configuración:Dpdt, Dpst-No; Tensión De La Bobina:120Vac; Corriente De Contacto:10A |Struthers-Dunn 219BBXP 120VAC
Manufacturer Aliases
Struthers-Dunn has several brands around the world that distributors may use as alternate names. Struthers-Dunn may also be known as the following names:
- STRUTHERS
- STRUTH
- STRUTHERS-DUNN LLC
- S-D
- STRUTHERS-DU
- STR-DUNN
- STRUTHER-DUNN
- STRUTHERS-DUNN INC
- STRUTHERS-DUN
- STRUTHE
- Magnecraft/Struthers-Dunn Co
- STDN
- STRUTHERS-D
- STRUTHDUNN
- Struthers-Dunn/Msd
Inventory History
3 month trend: +12.84%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Contact MaterialSilver
MountPlug-In, Socket
Number of Pins12
Technical
Coil Current35 mA
Coil Power4.25 W
Coil Resistance540 Ω
Coil TypeNon-Latching
Coil Voltage (AC)120 V
Contact Current Rating10 A
Contact Voltage Rating (AC)120 V
Current Rating10 A
Electrical Life100 kcycles
Max Current Rating10 A
Max Operating Temperature60 °C
Max Voltage Rating (AC)120 V
Max Voltage Rating (DC)28 V
Min Operating Temperature-20 °C
Power Rating5 W
Relay TypeGeneral Purpose
Release Time20 ms
Response Time25 ms
Throw Configuration4PDT
Voltage Rating (AC)240 V
Dimensions
Height65.7 mm
Width64.1 mm
