Weidmuller 1604790000
$ 1.069
Production
Inventory History
3 month trend: -14.29%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
CAD Models
Download Weidmuller 1604790000 symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 EE Concierge | SymbolFootprint |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Related Parts
Weidmuller1615550000
1615550000 - Weidmuller PCB Components SL 3.50/04/90F 4.5 SN BK BX Sold in a pack of 100
Weidmuller1761562001
Weidmüller OMNIMATE Signal - series BL/SL 3.50 SL-SMT 3.50/04/90G 1.5SN BK BX - 1761562001

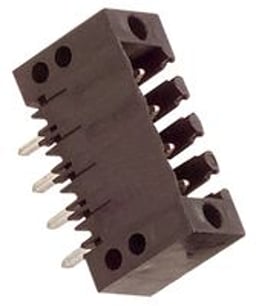

Weidmuller1616160000
Weidmüller OMNIMATE Signal - series BL/SL 3.50 SL 3.50/04/180F 4.5 SN BK BX - 1616160000
Descriptions
Descriptions of Weidmuller 1604790000 provided by its distributors.
Strip Terminal Block, 10A, 1 Row(s), 1 Deck(s)
Weidmüller OMNIMATE Signal - series BL/SL 3.50 SL 3.50/04/180 3.2SN OR BX - 1604790000
Pin header, 4 pole, pitch 3.5 mm, straight, orange, 1604790000
PCB connector (board connection), 160 V, 17 A, Pitch in mm: 3.50, Number of poles: 4, THT solder connection, Box
Conn Shrouded Header M 4 POS 3.5mm Solder ST Thru-Hole Box
TERM BLOCK HDR 4POS VERT 3.5MM
Manufacturer Aliases
Weidmuller has several brands around the world that distributors may use as alternate names. Weidmuller may also be known as the following names:
- Weidmüller
- WEIDMUELLER
- WEI
- WEID
- WEIDMU
- WEIDM
- WEIDMULL
- WEIDMUILLER
- WEIDMULLE
- weidm?ler
- WEIDMULLER INC
- WEIDMUELLER GMBH & CO KG
- Weidmuller C9000676
- WDML
- WEIDMULLER INTERFACE GMBH
- WEIDMUL
- Weidmüller Interface GmbH & Co KG
- Weidmuller Group
- Weidm?ller GmbH & CoKG
- W INTERCONNECTIONS INC
- WEIDMULLER CANADA
- WEIDMULLER INTERFACE INT'L
- WEIDMEULLER
- WEIDMULER
- WEIDMIILLER
Inventory History
3 month trend: -14.29%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
ColorOrange
Contact MaterialCuSn
Contact PlatingTin
Housing ColorOrange
Housing MaterialPlastic
MountThrough Hole
Technical
Current10 A
Current Rating10 A
Insulation Resistance1 MΩ
Number of Contacts4
Number of Levels1
Number of Poles4
Number of Positions4
Number of Positions Per Level4
Number of Rows1
OrientationVertical
PackagingBox
TerminationSolder
Voltage300 V
Voltage Rating300 V
Dimensions
Height11.1 mm
Hole Diameter1.3 mm
Length14 mm
Pitch3.5052 mm
Width7.5 mm
Compliance
Environmental Classification
ApprovalsCSA, IEC, UL
Flammability RatingUL94 V-0
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCYes
RoHSCompliant
