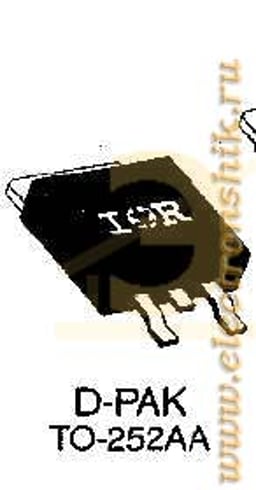

onsemi MC78M15BDTG
$ 0.348
EOL
Preis und Lagerbestand
Autorisierte Distributoren
Nicht-autorisierte lagerhaltende Distributoren
Nicht autorisierte Händler
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flip Electronics | MC78M15BDTG | 125 | >1wk | |||||||||
| RS (Formerly Allied Electronics) | 70340184 | 0 | 5 | Bulk | 15h | |||||||
| Farnell | 1652355 | 0 | 1 | 21h | ||||||||
| element14 APAC | 1652355 | 0 | 5 | 9h | ||||||||
| Win Source | 224443-MC78M15BDTG | 27.500 | 150 | >1wk |
Bestandsverlauf
3-Monats-Trend: +0.00%
CAD-Modelle
Symbol, Footprint und 3D STEP herunterladen
Alternative Teile
1 Teil verfügbar
Datenblätter und Dokumente
Laden Sie Datenblätter und Herstellerdokumentation für onsemi MC78M15BDTG herunter.
CAD-Modelle
Laden Sie onsemi MC78M15BDTG Symbol-, Footprint- und 3D-STEP-Modelle von unseren zuverlässigen Partnern herunter.
| QUELLE | eCAD | mCAD | DATEIEN |
|---|---|---|---|
 Component Search Engine | SymbolFußabdruck | 3D | Herunterladen |
 Ultra Librarian | SymbolFußabdruck | Herunterladen |
Beim Herunterladen der CAD-Modelle wird die Partner-Website in einem neuen Tab geöffnet.
Durch das Herunterladen von CAD-Modellen von Octopart stimmen Sie unseren Allgemeinen Geschäftsbedingungen und unserer Datenschutzrichtlinie zu.
Alternative Teile
Dieser Teil
Alternative Teile
Price @ 1000
$ 0.348
$ 0.189
Stock
79,821
937,654
Authorized Distributors
4
6
Case/Package
DPAK
DPAK
Number of Pins
3
3
Number of Outputs
1
1
Max Output Current
500 mA
500 mA
Min Input Voltage
17.5 V
17.5 V
Max Input Voltage
30 V
30 V
Min Output Voltage
15 V
15 V
Max Output Voltage
-
-
Accuracy
-
2 %
Dropout Voltage
2 V
2 V
Power Supply Rejection Ratio (PSRR)
70 dB
70 dB
Lieferkette
Lifecycle StatusEOL (Last Updated: 1 year ago)
Manufacturer Lifecycle StatusLAST SHIPMENTS (Last Updated: 1 year ago)
Verwandte Teile
onsemiMC78M15CDTRKG
Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 15 V; TJ = 0° to +125°C
onsemiMC78M15CDTG
Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 15 V; TJ = 0° to +125°C
onsemiMC78M15ACDTG
Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 15 V; TJ = 0° to +125°C
Beschreibungen
Beschreibungen von onsemi MC78M15BDTG, die von den Distributoren bereitgestellt werden.
Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 15 V; TJ = -40° to +125°C
MC78M00B Series 500 mA 15 V Fixed Output LDO Voltage Regulator -DPAK
500 MILLI AMP POSITIVE VOLTAGE REGULATOR Fixed Positive Standard Regulator, 15VBIPolar, PSSO2
Standard Regulator Pos 15V 0.5A 3-Pin(2+Tab) DPAK Tube
MC78M15BDTG, SINGLE LINEAR VOLTAGE REGULATOR, 700MA 15 V, 3-PIN DPAK
ON SEMICONDUCTOR - MC78M15BDTG - IC, LINEAR VOLTAGE REGULATOR
IC, LINEAR VOLTAGE REGULATOR; Fixed Output Voltage Nom.: 15V; Adjustable Output Voltage Min: -; Adjustable Output Voltage Max: -; Input Voltage Min: 23V; Input Voltage Max: 35V; Product Range: 7815 Voltage Regulators; Output C
The MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices except that they are specified for only half the output current. Like the MC7800 devices the MC78M00 three-terminal regulators are intended for local on-card voltage regulation. Internal current limiting thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions. Maximum output current with adequate heatsinking is 500 mA.
Aliasnamen des Herstellers
onsemi verfügt über mehrere Marken auf der ganzen Welt, die von Händlern als alternative Namen verwendet werden können. onsemi ist möglicherweise auch unter den folgenden Namen bekannt:
- ON Semiconductor
- ONS
- ONSEMICON
- ON SEM
- ON SEMICONDUCTO
- ON SEMICONDUCTORS
- ONSEMIC
- ON Semicondu
- OSC
- ONSE
- ON SEMICOND
- ON Semiconductor / Fairchild
- SCG
- ON Semiconductor Cor
- ON SEMICO
- ONSM
- ON SEMICONDUCTOR CORP
- onsemi / Fairchild
- MOT/ON SEMI
- Fairchild/ONSemiconductor
- ON4
- ON Semiconductor Corporation
- ON Semi - ON Semiconductor
- ON SEMICONDUCT
- ON-SEMI SCG
- ON Semiconductor Inc.
- onsemiconductor
- On Semiconductor Ltd
Bestandsverlauf
3-Monats-Trend: +0.00%
CAD-Modelle
Symbol, Footprint und 3D STEP herunterladen
Alternative Teile
1 Teil verfügbar
Technische Spezifikationen
Physical
Case/PackageDPAK
MountSurface Mount
Number of Pins3
Number of Terminals2
Technical
Current Rating500 mA
Dropout Voltage2 V
Max Input Voltage30 V
Max Junction Temperature (Tj)125 °C
Max Operating Temperature125 °C
Max Output Current500 mA
Min Input Voltage17.5 V
Min Operating Temperature-40 °C
Min Output Voltage15 V
Nominal Output Voltage15 V
Number of Channels1
Number of Circuits1
Number of Outputs1
Number of Regulators1
Output Current500 mA
Output TypeFixed
Output Voltage15 V
PolarityPositive
Power Rating5 W
Power Supply Rejection Ratio (PSRR)70 dB
Quiescent Current6 mA
Schedule B8542390000
Voltage Tolerance5 %
Dimensions
Height2.38 mm
Height - Seated (Max)2.51 mm
Length6.54 mm
Terminal Pitch2.29 mm
Width6.095 mm
Datenblätter und Dokumente
Laden Sie Datenblätter und Herstellerdokumentation für onsemi MC78M15BDTG herunter.
Compliance
Umweltklassifizierung
China RoHSNon-Compliant
Halogen FreeHalogen Free
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCNo
RoHSCompliant
Compliance-Erklärungen
