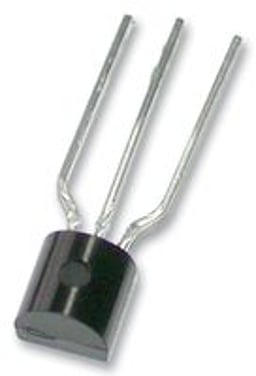

STMicroelectronics L78L05ACZTR
$ 0.121
Production
Preis und Lagerbestand
Autorisierte Distributoren
Nicht-autorisierte lagerhaltende Distributoren
Nicht autorisierte Händler
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Avnet | L78L05ACZTR | 4.000 | 2K | 20h | ||||||||
| Newark | 64AH3918 | 1.732 | 5 | Cut Tape | ||||||||
| Verical | L78L05ACZTR | 98.000 | 8K | |||||||||
| Arrow Electronics | L78L05ACZTR | 158.000 | 2K | |||||||||
| Future Electronics | 8935553 | 4.000 | 2K | Tape & Reel |
Bestandsverlauf
3-Monats-Trend: +3.26%
CAD-Modelle
Symbol, Footprint und 3D STEP herunterladen
Alternative Teile
1 Teil verfügbar
Datenblätter und Dokumente
Laden Sie Datenblätter und Herstellerdokumentation für STMicroelectronics L78L05ACZTR herunter.
CAD-Modelle
Laden Sie STMicroelectronics L78L05ACZTR Symbol-, Footprint- und 3D-STEP-Modelle von unseren zuverlässigen Partnern herunter.
| QUELLE | eCAD | mCAD | DATEIEN |
|---|---|---|---|
 Component Search Engine | SymbolFußabdruck | 3D | Herunterladen |
 EE Concierge | SymbolFußabdruck | ||
 SnapEDA | Fußabdruck | Herunterladen | |
 Ultra Librarian | SymbolFußabdruck | Herunterladen |
Beim Herunterladen der CAD-Modelle wird die Partner-Website in einem neuen Tab geöffnet.
Durch das Herunterladen von CAD-Modellen von Octopart stimmen Sie unseren Allgemeinen Geschäftsbedingungen und unserer Datenschutzrichtlinie zu.
Alternative Teile
Dieser Teil
Alternative Teile
Price @ 1000
$ 0.121
$ 0.145
$ 0.145
Stock
2,376,833
784,970
784,970
Authorized Distributors
6
6
6
Case/Package
TO-92
TO-92
TO-92
Number of Pins
3
3
3
Number of Outputs
1
1
1
Max Output Current
100 mA
100 mA
100 mA
Min Input Voltage
7 V
7 V
7 V
Max Input Voltage
20 V
20 V
20 V
Min Output Voltage
-
5 V
5 V
Max Output Voltage
5 V
-
-
Accuracy
4 %
-
-
Dropout Voltage
1.7 V
1.7 V
1.7 V
Power Supply Rejection Ratio (PSRR)
49 dB
49 dB
49 dB
Verwandte Teile
STMicroelectronicsL78L05ABZ-TR
L78L05ABZ-TR, SINGLE LINEAR VOLTAGE REGULATOR, 100MA 5 V, 3-PIN TO-92
onsemiMC78L05ACPG
Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = 0°C to +125°C
Beschreibungen
Beschreibungen von STMicroelectronics L78L05ACZTR, die von den Distributoren bereitgestellt werden.
Linear Voltage Regulator, 7805, Fixed, 3-Terminal, Positive, 30V In, 5V And 0.1A Out, TO-92-3
L78L Series 100 mA 5 V Three Terminal Positive Voltage LDO Regulator - TO-92
49dB@(120Hz) 100mA Fixed 5V Positive 30V TO-92-2.54mm Linear Voltage Regulators (LDO) ROHS
Linear Volt Reg, 5V, 0.1A, To-92-3 Rohs Compliant: Yes |Stmicroelectronics L78L05ACZTR
L78L05ACZTR, SINGLE LINEAR VOLTAGE REGULATOR, 100MA 5 V, +/-5%, 3-PIN TO-92
STMICROELECTRONICS L78L05ACZTRIC, LINEAR VOLTAGE REGULATOR, 5V, TO-92
Standard Regulator Pos 5V 0.1A 3-Pin TO-92 T/R
L78L05 Tape & Reel (TR) Through Hole Over Current Over Temperature Short Circuit voltage regulator linear 1.7V 4.95mm 100mA 0C~125C
LINEAR VOLT REG, 5V, 0.1A, TO-92-3; Fixed Output Voltage Nom.: 5V; Adjustable Output Voltage Min: -; Adjustable Output Voltage Max: -; Input Voltage Min: 10V; Input Voltage Max: 30V; Product Range: 5V 100mA Linear VoltageRegu
The L78L00 series of three-terminal positive regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation.
Outputs = 1 / Fixed Output Voltage V = 5 / Output Voltage Min. V = 4.8 / Output Voltage Max. V = 5.2 / Dropout Voltage V = 2 / Output Current mA = 100 / Load Regulation mV = 30 / Line Regulation mV = 150 / Supply Voltage Max. V = 30 / Operating Temperature Min. °C = 0 / Operating Temperature Max. °C = 125 / Package Type = TO-92 / Pins = 3 / Mounting Type = Through Hole / MSL = Level-1 / Packaging = Tape & Reel / Length mm = 5 / Width mm = 5 / Height mm = 3 / Reflow Temperature Max. °C = 260
Aliasnamen des Herstellers
STMicroelectronics verfügt über mehrere Marken auf der ganzen Welt, die von Händlern als alternative Namen verwendet werden können. STMicroelectronics ist möglicherweise auch unter den folgenden Namen bekannt:
- ST MICRO
- STM
- SGS
- SGS THOMSON
- INMOS
- STMICROE
- STMICROEL
- STMICR
- ST MIC
- ST MICROELECTRONIC
- SGS THOMPSON
- SESCOSEM
- STMICROELECT
- ST8
- STMICROELECTRON
- WAFERSCALE
- SGS-ATES
- ST MICROELECTRONICS SEMI
- ST/SGS
- ST MICROELECTRO
- SGST
- THOMS
- STMICROELE
- WAFERSCALE INTEGRATION INC
- SGS-Thomson Microelectronics
- ST Microeletronics
Bestandsverlauf
3-Monats-Trend: +3.26%
CAD-Modelle
Symbol, Footprint und 3D STEP herunterladen
Alternative Teile
1 Teil verfügbar
Technische Spezifikationen
Physical
Case/PackageTO-92
MountThrough Hole
Number of Pins3
Number of Terminals3
Weight90.718474 mg
Technical
Accuracy4 %
Dropout Voltage1.7 V
Max Input Voltage20 V
Max Junction Temperature (Tj)125 °C
Max Operating Temperature125 °C
Max Output Current100 mA
Max Output Voltage5 V
Min Input Voltage7 V
Min Operating Temperature-40 °C
Nominal Output Voltage5 V
Number of Channels1
Number of Circuits1
Number of Outputs1
Number of Regulators1
Output Current100 mA
Output TypeFixed
Output Voltage5 V
Output Voltage Accuracy4 %
PackagingTape and Reel
PolarityPositive
Power Supply Rejection Ratio (PSRR)49 dB
Quiescent Current6 mA
Schedule B8542390000
Voltage Tolerance5 %
Dimensions
Height4.95 mm
Length4.95 mm
Terminal Pitch1.27 mm
Width3.94 mm
