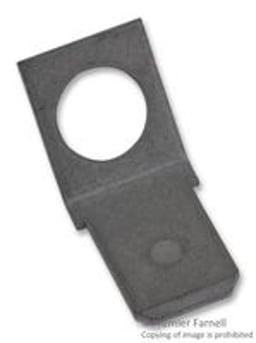

TE Connectivity 61365-1
$ 0.093
Production
Inventory History
3 month trend: +144%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Datasheets & Documents
Download datasheets and manufacturer documentation for TE Connectivity 61365-1.
CAD Models
Download TE Connectivity 61365-1 symbol, footprint, and 3D STEP models from our trusted partners.
| SOURCE | eCAD | mCAD | FILES |
|---|---|---|---|
 Component Search Engine | SymbolFootprint | 3D | Download |
 TraceParts | 3D | Download |
The partner site will open in a new tab when downloading their CAD models
By downloading CAD models from Octopart, you agree to our Terms & Conditions and Privacy Policy.
Supply Chain
Lifecycle StatusProduction (Last Updated: 3 days ago)
Manufacturer Lifecycle StatusACTIVE (Last Updated: 3 days ago)
Descriptions
Descriptions of TE Connectivity 61365-1 provided by its distributors.
TERMINAL,QUICK DISCONNCT,MALE, .250"x.032,PCB TAB,24-20 AWG
Terminal, Male Disconnect, 6.35Mm, Crimp; Tab Size - Metric:6.35Mm X 0.81Mm; Tab Size - Imperial:0.25" X 0.032"; Terminal Material:Brass; Mounting Hole Dia:5.16Mm; Terminal Plating:Tin; Product Range:-; Connector Type:Male Disconnectrohs Compliant: Yes |Amp Te Connectivity 61365-1.
250 FASTON TAB TPBR PCB Terminal Type: Tab Mating Tab Width: .25 in Mating Tab Width: 6.35 mm PCB Hole Diameter: 5.16 mm PCB Hole Diameter: .203 in Tab .25" 6.35 mm 5.16 mm | PCB Terminal | Part Number: 61365-1 | Internal Number: 61365-1 | .25" | TE Connectivity
Manufacturer Aliases
TE Connectivity has several brands around the world that distributors may use as alternate names. TE Connectivity may also be known as the following names:
- TYCO
- Tyco Electronics
- TE CONN
- TYC
- TE CONNECT
- TE CONNECTIVITY LTD
- TE Connectivity Aerospace Defense and Marine
- TYCO ELECTRONICS CORPORATION
- TE Connectivity Measurement Specialties
- TYCO ELECTRO
- TYCO ELEC
- TYCO ELECTRONICS CORP
- TYCO ELECTRONIC
- TE Connectivity Passive Product
- TE Application Tooling
- TYCO ELECT
- TYCO ELE
- TE CONNECTIVITY SENSORS
- TE CONNECTIVITY (TYCO)
- TE SENSOR SOLUTIONS
- TE CONNECTIV
- TE (Tyco)
- TE Connectivity /CGS Brand
- TE Connectivity Solutions GmbH
- TYCO POWER SYSTEMS
- Tyco Electronics
- TE
- TE Connectivty
Inventory History
3 month trend: +144%
CAD Models
Download symbol, footprint, and 3D STEP
Alternate Parts
0 parts available
Technical Specifications
Physical
Body MaterialBrass
Body PlatingTin
Contact MaterialBrass
Contact PlatingTin
MaterialBrass
MountChassis Mount
PlatingTin
Terminal MaterialBrass
Technical
Contact GenderMale
GenderFemale
InsulationNon-Insulated
PackagingBulk
Dimensions
Depth7.49 mm
Diameter5.16 mm
Hole Diameter2.11 mm
Length15.14 mm
Mating Tab Width6.35 mm
Stud Diameter5.16 mm
Tab Width6.35 mm
Width7.49 mm
Wire/Cable Gauge-20 AWG
Datasheets & Documents
Download datasheets and manufacturer documentation for TE Connectivity 61365-1.
Compliance
Environmental Classification
ApprovalsUL
China RoHSCompliant
ELVCompliant
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCYes
RoHSCompliant
