价格与库存
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Newark | 95C1181 | 100 | 1 | Cut Tape | ||||||||
| Chip One Stop | MAL202138229E3 | 1,000 | 1 | Tape & Box | 14h | |||||||
| Arrow Electronics | MAL202138229E3 | 2,000 | 1K | |||||||||
| Verical | MAL202138229E3 | 2,000 | 1K | |||||||||
| DigiKey | 4068PHCT-ND | 3,585 | 1 | Cut Tape |
备用零件
Price @ 1000
$ 0.736
$ 0.803
Stock
41,624
20,392
Authorized Distributors
6
6
Capacitance
22 µF
22 µF
Mount
Through Hole
Through Hole
Case/Package
Axial
Axial
Voltage Rating (DC)
63 V
63 V
Tolerance
20 %
20 %
ESR (Equivalent Series Resistance)
5.8 Ω
5.8 Ω
Life (Hours)
500 hours
2500 hours
Ripple Current
90 mA
90 mA
Height - Seated (Max)
-
-
相关零件
Cornell DubilierSEK220M063ST
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR SEK 63V 22muF ±20% 0.248Dia 6.30mm
NichiconUPJ1K220MED
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPJ 80V 22muF ±20% 0.248Dia 6.30mm
NichiconUPM1K220MED1TD
Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UPM 80V 22muF ±20% 0.248Dia 6.30mm
描述
由其分销商提供的 Vishay MAL202138229E3 的描述。

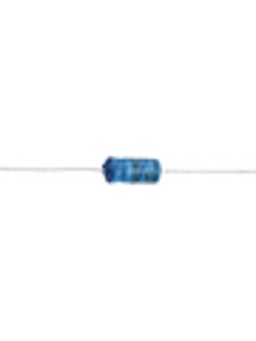

Cap Aluminum 22uF 63V 20% 6 X 10mm AXL 5.8 Ohm 90mA 2500 hr Ammo Pack
22UF 63 V DC ALUMINUM ELECTROLYTIC CAPACITOR, 021 ASM SERIES 2500H 6(DIA.)X10MM
021ASM Series Ø 6 x 10 mm 22 uF ±20 % 63 V Miniature Axial Aluminum Capacitor
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount
CAPACITOR, 22UF, 63V; Capacitor Dielectric Type:Aluminium Electrolytic; Capacitance:22µF; Capacitance Tolerance:± 20%; Voltage Rating:63V DC; ESR:5.8ohm; Series:2222021; Life Time @ Temperature:500 hours @ 85°C; Height:10mm; Outer Diameter:6mm; Capacitor Case Style:Axial Leaded; No. of Pins:2; Mounting Type:Through Hole; Operating Temperature Range:-55°C to +85°C; AC Ripple Current:90mA; Applications:General Purpose; Body Diameter:6mm; Climatic Category:55/085/56; External Length / Height:10mm; Lead Diameter:0.8mm; Leakage Current Max:12.31µA; Operating Lifetime:2500h; Operating Temperature Max:85°C; Package / Case:Axial; Ripple Current Frequency:100Hz; Ripple Current Temperature:85°C; Temperature Operating Min:-55°C; Terminal Type:Wire Ended; Termination Type:Axial Leaded; Tolerance, +:20%; Tolerance, -:20%; Voltage DC:63V
制造商别名
Vishay 在全球拥有多个品牌，分销商可将其用作替代名称。Vishay 也可称为以下名称：
- VIS
- VISH
- VISHAY INTERTECHNOLOGY INC
- Vishay Thin Film
- VISHA
- Vishay Intertechnology
- Vishay Semiconductors
- VISAHY
- Vishay Intertech
- VISHY
- VISHAY INTERTECHNOLOGY ASIA PTE LTD
- Vishay Intertechnologies
- Vishay General Semiconductor - Diodes Division
- Vishay Semiconductor Opto Division
- VSHAY
- VISH/IR
- VSHY
- VSH
- VISHAY INTERTECHNOLOGY ASIA PT
- VISHAY ELECTRONIC
- VISHAY AMERICAS INC
- Vishay Semiconductor Diodes Division
- VISHAY OPTO
- VISHAY FOIL RESISTORS
- Vishay Polytech
- Vishay Semiconductor
- Vishay Sfernice
- Vishay Siliconix
- Vishay Dale
- Vishay BCcomponents
- Vishay Angstrohm
- Vishay Draloric
技术规格
Physical
Case/PackageAxial
Dielectric MaterialAluminium
MountThrough Hole
Number of Pins2
Number of Terminals2
Technical
Capacitance22 µF
ESR (Equivalent Series Resistance)5.8 Ω
Impedance2.5 Ω
Leakage Current6.8 µA
Life (Hours)500 hours
Max Operating Temperature85 °C
Min Operating Temperature-40 °C
PackagingCut Tape
Ripple Current90 mA
Schedule B8532220020
TerminationAxial
Tolerance20 %
Voltage63 V
Voltage Rating63 V
Voltage Rating (AC)63 V
Voltage Rating (DC)63 V
Dimensions
Diameter6 mm
Height10 mm
Lead Diameter600 µm
Length10 mm
