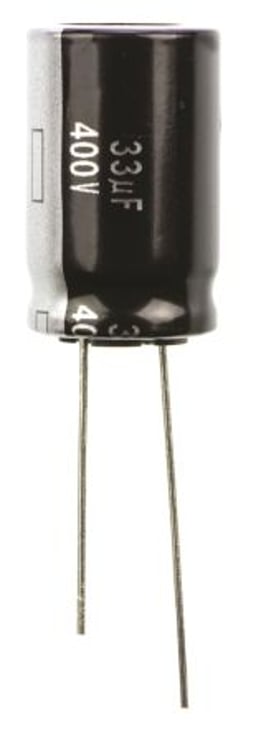

Panasonic ECA-2WHG330

Cap Aluminum 33uF 450V 20% (16 X 31.5mm) Radial 7.5mm 155mA 2000h 105 C Bulk

Radial Can ALUMINUM ELECTROLYTIC CAPACITOR NHG 450V 33muF ±20% 0.630Dia 16.00mm

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount

Aluminum Electrolytic Capacitors - Radial Leaded 33uF 450V

ECA-NHG Series 450 V 33 uF Ø16 x 31.5 mm LS=7.5 mm 105 °C Radial Electrolytic

CAPACITOR, 33UF 450V CAPACITOR, 33UF 450V; CAPACITANCE:33UF; VOLTAGE RATING, DC:450V; CAPACITOR DIELECTRIC TYPE:ALUMINIUM ELECTROLYTIC; SERIES:NHG; TEMP, OP. MAX:105(DEGREE C); TEMP, OP. MIN:-25(DEGREE C); TOLERANCE, :20%; TOLERANCE,;ROHS COMPLIANT: YES

CAPACITOR, 33UF, 450V; Capacitor Application:General Purpose; Capacitance:33µF; Capacitance Tolerance:± 20%; Voltage Rating:450V; Life Time @ Temperature:2000 hours @ 85°C; Height:31.5mm; Diameter:16mm; Capacitor Case Style:Radial Leaded; Capacitor Mounting:Through Hole; Lead Spacing:7.5mm; Operating Temperature Range:-25°C to +105°C; AC Ripple Current:155mA; External Length / Height:31.5mm; Lead Diameter:0.8mm; No. of Pins:2; Operating Lifetime:2000h; Operating Temperature Max:105°C; Operating Temperature Min:-25°C; Package / Case:Radial; Ripple Current Frequency:120Hz; Ripple Current Temperature:105°C; Series:NHG; Terminal Type:Wire Ended; Tolerance +:20%; Tolerance -:20%; Voltage Rating VDC:450V
