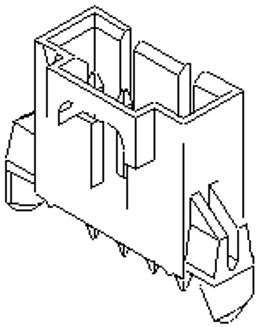

Molex 70545-0037
$ 0.687
Production
Prezzo e stock
Distributori autorizzati
Distributori di stock non autorizzati
Rivenditori non autorizzati
Distributore
SKU
Min
Pkg
Prezzi all'ingrosso
Cronologia dell'inventario
Tendenza a 3 mesi: -3.92%
Modelli CAD
Scarica il simbolo, l'impronta e il 3D STEP
Parti alternative
1 parte disponibile
Modelli CAD
Scarica il simbolo Molex 70545-0037, l'impronta e i modelli STEP 3D dai nostri partner di fiducia.
| FONTE | eCAD | mCAD | FILE |
|---|---|---|---|
 Component Search Engine | SimboloImpronta | 3D | Scarica |
 TraceParts | 3D | Scarica |
Il sito del partner si aprirà in una nuova scheda quando si scaricano i modelli CAD
Scaricando i modelli CAD da Octopart, accetti i nostri Termini e condizioni e l'Informativa sulla privacy.
Parti alternative
Questo componente
Parti alternative
Price @ 1000
$ 0.687
$ 0.851
$ 0.851
Stock
214,839
254,079
254,079
Authorized Distributors
6
6
6
Gender
Male
Male
Male
Pitch
2.54 mm
2.54 mm
2.54 mm
Number of Contacts
3
3
3
Number of Rows
1
1
1
Mount
Through Hole
Through Hole
Through Hole
Termination
Solder
Solder
Solder
Orientation
Vertical
Vertical
Vertical
Contact Plating
Gold
Tin
Tin
Housing Material
Thermoplastic
Thermoplastic
Thermoplastic
Contact Material
-
-
-
Supply Chain
Country of OriginUS
Export Control Classification Number (ECCN) CodeEAR99
Harmonized Tariff Schedule (HTS) Code8536.69.40.40
Introduction Date1994-12-01
Lifecycle StatusProduction (Last Updated: 5 years ago)
Manufacturer Lifecycle StatusACTIVE (Last Updated: 5 years ago)
Parti correlate
Molex70543-0002
Conn Shrouded Header (4 Sides) HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole SL Tube
Molex22-28-4030
KK 254 Breakaway Header, Vertical, 3 Circuits, Tin (Sn) Plating, Mating Pin Length 6.09mm
Molex22-28-4033
KK 254 Breakaway Header Vertical 3 Circuits 0.38um Gold Selective Plating Mating Pin 6.09mm
SamtecTSW-103-07-L-S
Pin Header, Board-to-Board, 2.54 mm, 1 Rows, 3 Contacts, Through Hole, TSW Series
SamtecTSW-103-07-F-S
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole Bag
SamtecTSW-103-07-G-S
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole E.L.P.™ Bulk
Descrizioni
Descrizioni di Molex 70545-0037 fornite dai suoi distributori.
Pin Header, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 3 Contacts, Through Hole Straight, SL 70545
Conn Shrouded Header (4 Sides) HDR 3 POS 2.54mm Solder ST Thru-Hole SL Tube
Connector Shrouded Header 3 Position 2.54 mm Solder Straight Thru-Hole SL
2.54mm Pitch SL Header, Single Row 3.05mm Pocket Vertical, Shrouded, with Press-fit Plastic Peg, 3 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle
Wire-Board Connector Header 3 Position, 2.54Mm; Rango De Producto:Serie Sl 70545; Tipo De Terminación Del Contacto:Agujero Pasante; Género:Cabezal; Núm. De Contactos:3; Espaciado, Paso:2.54Mm; Contacto, Chapado:Dorado; Color:Black |Molex 70545-0037
Alias del produttore
Molex ha diversi marchi in tutto il mondo che i distributori possono utilizzare come nomi alternativi. Molex può anche essere conosciuto con i seguenti nomi:
- MOLEX INC
- MOL
- MLX
- Molex LLC
- Molex Connector Corporation
- MOLE
- MOLX
- MOLEX INCORPORATED
- MOLEX ELECTRONICS
- MOLEX CONNECTOR CORP
- MOLEX HONG KONG CHINA LTD
- MOLEX INTERCONNECT GMBH
- Molex / FCT
- MXA
- Molex Taiwan Ltd
- Molex - Oplink Communications LLC
- MOLEX-ETC
- MOLEX PREMISE NETWORK
- MOLEX GMBH
- MOLEX INDUSTRIAL HDC
- MOELX
- MOLEX INDUSTRIAL
- MOLEX ELEKTRONIK GMBH
- MOLEX INTERCONNECT
- MOLEX CONNECTOR
- Molex, LLC
Cronologia dell'inventario
Tendenza a 3 mesi: -3.92%
Modelli CAD
Scarica il simbolo, l'impronta e il 3D STEP
Parti alternative
1 parte disponibile
Specifiche tecniche
Physical
ColorBlack
Contact PlatingGold
Dielectric MaterialPolyethylene
Housing MaterialThermoplastic
Insulation ColorBlack
MaterialBrass
MountThrough Hole
Number of Pins3
PlatingTin
Technical
Contact GenderMale
Contact Resistance30 mΩ
Current Rating3 A
GenderMale
Insulation Resistance1 GΩ
Max Operating Temperature105 °C
Min Operating Temperature-40 °C
Number of Circuits2
Number of Contacts3
Number of Positions3
Number of Rows1
Operating Force4.45 N
OrientationVertical
Plating Thickness381 nm
Schedule B8536694040
TerminationSolder
Voltage Rating250 V
Voltage Rating (DC)250 V
Dimensions
Lead Pitch2.54 mm
Pitch2.54 mm
Terminal Pitch2.54 mm
Conformità
Classificazione ambientale
China RoHSCompliant
ELVCompliant
Flammability RatingUL94 V-0
Glow Wire CompliantNon-compliant
Lead FreeLead Free
Radiation HardeningNo
RatingsCSA
REACH SVHCYes
RoHSCompliant
Dichiarazioni di conformità
