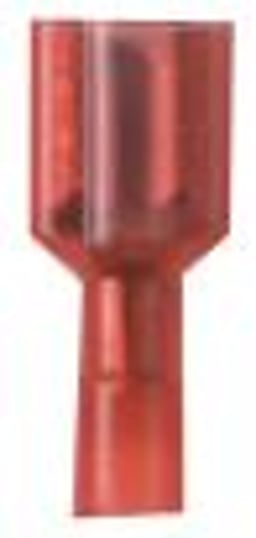

Panduit DNF18-187FIB-M
$ 0.39
Production
Prezzo e stock
Distributori autorizzati
Distributori di stock non autorizzati
Rivenditori non autorizzati
Cronologia dell'inventario
Tendenza a 3 mesi: -49.84%
Modelli CAD
Scarica il simbolo, l'impronta e il 3D STEP
Parti alternative
1 parte disponibile
Schede tecniche e documenti
Scarica le schede tecniche e la documentazione del produttore per Panduit DNF18-187FIB-M.
Parti alternative
Questo componente
Parti alternative
Price @ 1000
$ 0.39
$ 1.054
$ 1.054
Stock
13,934
14,903
14,903
Authorized Distributors
6
6
6
Gender
Female
Female
Female
Pitch
-
-
-
Number of Positions
-
-
-
Number of Rows
-
-
-
Mount
Free Hanging
Free Hanging
Free Hanging
Contact Plating
Tin
Tin
Tin
Housing Material
-
-
-
Parti correlate
PanduitDPF18-250FIB-M
Quick Disconnect Terminal, DiscoGrip DPF-FIB, Female Quick Disconnect, 6.35mm x 0.81mm
PanduitDNF18-250FIB-3K
Quick Disconnect Terminal, Disco-Lok DNF-FIB, Female Quick Disconnect, 6.35mm x 0.81mm
Molex19003-0013
Quick Disconnect Terminal 18-22AWG Brass Red F 19.81mm Electro Tin InsulKrimp™ T/R
Descrizioni
Descrizioni di Panduit DNF18-187FIB-M fornite dai suoi distributori.
Quick Disconnect Terminal 18-22AWG Brass Red F 19.8mm Tin Box
Disconnect Female; Brass Insulated; 600V; 22 to 18 AWG; 0.187 x 0.032 in.
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red nylon housing. It has a tab size of 0.187 x 0.032 (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.78 (19.8 mm) lo
Pan-Term Insulated Terminals 22-18.187 FML DISC
Disc, Rdny, .187x.032", 22-18Awg, Bs, PK1000
Female Disconnect, nylon fully insulated
Pan-Term DNF18-187FIB-M Disconnect, Red
PANDUIT FEMALE DISCONNECT,NYLON FULLY INSULAT
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost. Fully insulated design provides protection from electrical shorts. Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 Degrees Fahrenheit (105 Degrees Celsius). UL and CSA rated up to 600 Volts per UL 310.
Alias del produttore
Panduit ha diversi marchi in tutto il mondo che i distributori possono utilizzare come nomi alternativi. Panduit può anche essere conosciuto con i seguenti nomi:
- Panduit Corp
- PAND
- PANDUIT CORPORATION
- PANDUI
- PNDUIT
- PANDUIT SALES CORP
- PANDUIT LTD
- pandu
- PANDVIT
- PNDT
- PANDUIT ELECTRONICS GROUP
- PANDIUT
- Panduit Canada
- PANDUIY
- PANDUIT GMBH
- Panduit Europe
- PANDUIT CORP (VA)
- PANDUIT/BRADY
- PANDIT
- PANDUIT HOUSING
- Panduit Europe Ltd
- Panduit Hardware
- FAIRMOUNT AUTOMATION INC
- PAD
- PAN
Cronologia dell'inventario
Tendenza a 3 mesi: -49.84%
Modelli CAD
Scarica il simbolo, l'impronta e il 3D STEP
Parti alternative
1 parte disponibile
Specifiche tecniche
Physical
Body MaterialBrass
Body PlatingTin
ColorRed
Contact MaterialBrass
Contact PlatingTin
Insulation MaterialNylon
MaterialBrass
MountFree Hanging
Weight907.18474 g
Technical
Contact GenderFemale
GenderFemale
InsulationFully Insulated
PackagingBulk
TerminationCrimp
Dimensions
Depth7.4 mm
Insulation Diameter3.4544 mm
Tab Thickness812.8 µm
Tab Width4.7498 mm
Wire/Cable Gauge18 AWG
Wire Gauge (Max)22 AWG
Wire Gauge (Min)18 AWG
