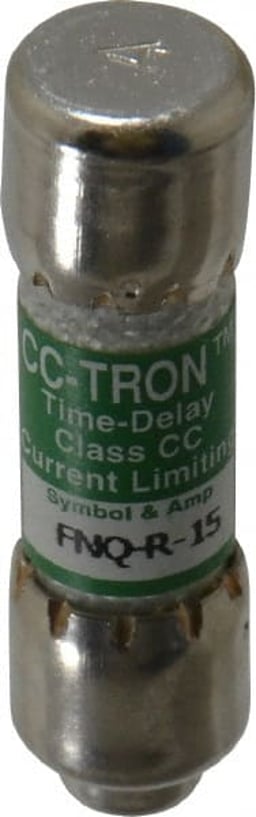

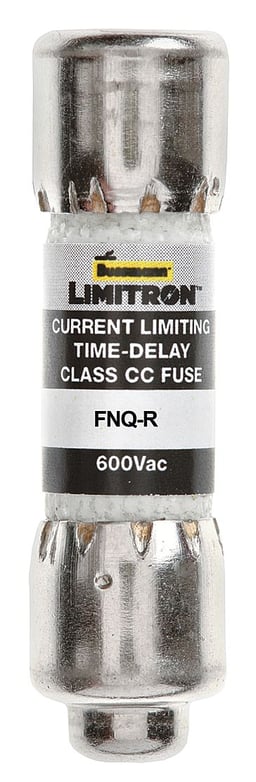

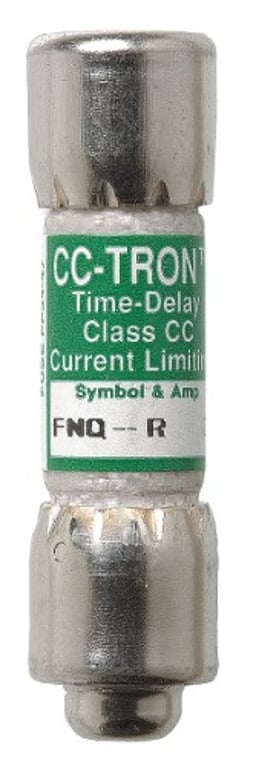

Cooper Bussmann FNQ-R-15

Fuse Class CC Slow Blow Acting 15A 600V Holder Cartridge 10.32 X 38.1mm Melamine Carton

Electric Fuse, Time Delay Blow, 15A, 600VAC, 300VDC, 200000A (IR), CC, Inline/holder

FNQ-R Series Time Delay 600 V 15 A Ø 10.3 x 38.1 mm TRON® Cartridge Fuse

Fuse Rejection; Class CC; Time Delay; 600V; Ferrule; 15A

Fuse, Class CC; Time-Delay; 15 A; 300 VDC; 0.41 0.005 in.

Bussmann by Eaton CC-TRON Class CC Time Delay Fuse; 15A; 600VAC/300VDC

FUSE, 15A, 600V, TIME DELAY; Product Range:CC-TRON Series; Fuse Current:15A; Voltage Rating VAC:600VAC; Voltage Rating VDC:-; Fuse Size Metric:10.3mm x 38.1mm; Fuse Size Imperial:13/32" x 1-1/2"; Blow Characteristic:Time Delay RoHS Compliant: Yes

COOPER BUSSMANN FNQ-R-15 Fuse, 15A, Class CC, FNQ-R, 600VAC/300VDC. More details: Fuse, 15 Fuse Amps, Nonindicating, FNQ-R Series, 600VAC/300VDC Voltage Rating, Time Delay, CC Class, Dual Element, Body Material Melamine, Rejection, Body Style Cylindrical, Interrupt Rating 200kA at 600VAC, 20kA at 300VDC, Length 1-1/2 In., Diameter 13/32 In., Functionally Equal To Ferraz/Gould ATDR, Littlefuse KLD-R, Standards CE/UL-248-4 Guide JDDZ/CSA Class 1422-01

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann FNQ-R-15 Time Delay Fuse Brand: Bussmann. Part Number: FNQ-R-15. Bussmann CC-Tron Time Delay Fuse, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size. Additional Description: BUSS-FNQ-R-15 CLASS CC TIME DELAY DELAY. Catalog Description: Eaton Bussmann Series Class CC fuse, FNQ, time-delay, dual-element current limiting fuse, 15 A, rejection style fuse, interrupting rating of 200kA at 600Vac and 20 kA at 300 Vdc..
