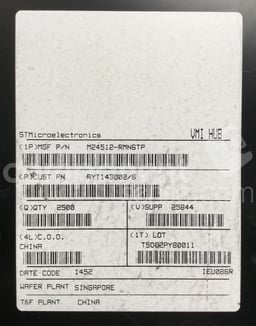

STMicroelectronics M24512-RMN6TP
$ 0.66
NRND
Precio y existencias
Distribuidores autorizados
Distribuidores no autorizados
Vendedores no autorizados
| Distributor | SKU | Min | Pkg | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Avnet | M24512-RMN6TP | 17.500 | 2500 | 10h | ||||||||
| Newark | M24512-RMN6TP | 490 | 1 | Cut Tape | ||||||||
| Verical | M24512-RMN6TP | 17.500 | 2500 | |||||||||
| Arrow Electronics | M24512-RMN6TP | 559 | 1 | |||||||||
| DigiKey | 497-6350-1-ND | 23.946 | 1 | Cut Tape |
Historial de existencias
Tendencia de 3 meses: +4.47%
Modelos CAD
Descargar símbolo, footprint y 3D STEP
Componentes alternativos
1 piezas disponibles
Fichas técnicas y documentos
Descargar fichas técnicas y documentación del fabricante para STMicroelectronics M24512-RMN6TP.
Modelos CAD
Descargue el símbolo, footprint y modelos en 3D STEP de STMicroelectronics M24512-RMN6TP desde uno de nuestros socios de confianza.
| ORIGEN | eCAD | mCAD | ARCHIVOS |
|---|---|---|---|
 Component Search Engine | SímboloFootprint | 3D | Descargar |
 EE Concierge | SímboloFootprint | ||
 SnapEDA | Footprint | 3D | Descargar |
La página web del socio se abrirá en una nueva pestaña al descargar sus modelos CAD
Al descargar modelos CAD de Octopart, usted acepta nuestros Términos y Condiciones y nuestra Política de Privacidad.
Componentes alternativos
Este componente
Componentes alternativos
Price @ 1000
$ 0.66
$ 0.707
$ 0.707
Stock
2,481,610
404,752
404,752
Authorized Distributors
6
6
6
Case/Package
SOP
SOP
SOP
Number of Pins
8
8
8
Density
512 kb
512 kb
512 kb
Access Time
500 ns
-
-
Frequency
1 MHz
1 MHz
1 MHz
Interface
Serial
Serial
Serial
Min Supply Voltage
1.8 V
1.8 V
1.8 V
Max Supply Voltage
5.5 V
5.5 V
5.5 V
Cadena de suministros
Country of OriginMainland China
Export Control Classification Number (ECCN) CodeEAR99
Harmonized Tariff Schedule (HTS) Code8542.32.00.51
Introduction Date1980-01-04
Lifecycle StatusNRND (Last Updated: 3 months ago)
Componentes relacionados
onsemiCAT24C512WI-GT3
CAT24C512 Series 512 kb (64K x 8) 1.8 - 5.5 V I2C CMOS Serial EEPROM - SOIC-8
STMicroelectronicsM24256-BRMN6P
M24256-BRMN6P SERIAL EEPROM MEMORY, 256KBIT, 900NS, 1.8 TO 5.5 V 8-PIN SOIC
STMicroelectronicsM24256-BRMN6TP
EEPROM Memory; 256kb; 32kx8bit; 1MHz; serial I2C; 5ms; 1.8V-5.5V; -40+85 deg.C; SMD; SO8
STMicroelectronicsM24512-WMN6P
M24512-WMN6P SERIAL EEPROM MEMORY, 512KBIT, 900NS, 2.5 - 5.5 V 8-PIN SOIC
MicrochipAT24C128C-SSHM-T
EEPROM Serial-I2C 128K-bit 16K x 8 1.8V/2.5V/3.3V/5V 8-Pin SOIC N T/R Automotive AEC-Q100
Descripciones
Descripciones de STMicroelectronics M24512-RMN6TP suministradas por sus distribuidores.
M24512-RMN6TP SERIAL EEPROM MEMORY, 512KBIT, 900NS, 1.8 TO 5.5 V 8-PIN SOIC
EEPROM Memory; 512kb; 64kx8bit; 1MHz; serial I2C; 1.8V-5.5V; -40+85 deg.C; SMD; SO8
M24512 Series 512 Kb (64 K x 8) 1.8 V SMT Serial I²C Bus EEPROM - SOIC-8
EEPROM Serial-I2C 512K-bit 64K x 8 2.5V/3.3V/5V 8-Pin SO N T/R
Standard Serial EEPROM I2C 4M Cycles, 1.8V, SO8, Tape and Reel
STMicroelectronics SCT
EEPROM, 512 Kbit, 64K x 8bit, I2C, 1 MHz, SOIC, 8 Pins
EEPROM, 512KBIT, I2C, 1MHZ, SOIC-8; Memory Size: 512Kbit; EEPROM Memory Configuration: 64K x 8bit; Memory Interface Type: Serial I2C (2-Wire); Clock Frequency: 1MHz; Memory Case Style: SOIC; No. of Pins: 8Pins; Supply Voltage Min: 1.8V; Supply Voltage Max: 5.5V; Operating Temperature Min: -40°C; Operating Temperature Max: 85°C; Product Range: 512Kbit I2C Serial EEPROM; MSL: MSL 1 - Unlimited; SVHC: No SVHC (15-Jan-2018); IC Interface Type: Serial I2C
Memory Size KB = 64 / Organisation = 64 k x 8 Bit / Interfaces = I²C / Interfaces = Serial / Clock Frequency Max. MHz = 1 / Access Time ns = 450 / Data Retention Years = 200 / Supply Current mA = 2.5 / Supply Voltage Min. V = 1.8 / Supply Voltage Max. V = 5.5 / Operating Temperature Min. °C = -40 / Operating Temperature Max. °C = 85 / Package Type = SO-8 / Pins = 8 / Mounting Type = SMD / Packaging = Tape & Reel / Length mm = 5 / Width mm = 6.2 / Height mm = 1.75 / Reflow Temperature Max. °C = 260
Alias de fabricantes
STMicroelectronics tiene diversas marcas a nivel mundial que los distribuidores pueden usar como nombres alternativos. STMicroelectronics también podría ser conocido por los siguientes nombres:
- ST MICRO
- STM
- SGS
- SGS THOMSON
- INMOS
- STMICROE
- STMICROEL
- STMICR
- ST MIC
- ST MICROELECTRONIC
- SGS THOMPSON
- SESCOSEM
- STMICROELECT
- ST8
- STMICROELECTRON
- WAFERSCALE
- SGS-ATES
- ST MICROELECTRONICS SEMI
- ST/SGS
- ST MICROELECTRO
- SGST
- THOMS
- STMICROELE
- WAFERSCALE INTEGRATION INC
- SGS-Thomson Microelectronics
- ST Microeletronics
Historial de existencias
Tendencia de 3 meses: +4.47%
Modelos CAD
Descargar símbolo, footprint y 3D STEP
Componentes alternativos
1 piezas disponibles
Especificaciones técnicas
Physical
Case/PackageSOP
Contact PlatingGold
MountSurface Mount
Number of Pins8
Number of Terminals8
Technical
Access Time500 ns
Ambient Temperature Range High85 °C
Density512 kb
Frequency1 MHz
InterfaceSerial
Max Frequency400 kHz
Max Operating Temperature85 °C
Max Supply Current5 mA
Max Supply Voltage5.5 V
Memory Size64 kB
Memory TypeEEPROM
Manufacturer Package IdentifierSO8N-SO-A
Min Operating Temperature-40 °C
Min Supply Voltage1.8 V
Nominal Supply Current5 mA
Number of Circuits1
Operating Supply Voltage2.5 V
PackagingTape and Reel
Schedule B8542320050
Temperature GradeIndustrial
Dimensions
Height1.75 mm
Height - Seated (Max)1.75 mm
Length4.9 mm
Terminal Pitch1.27 mm
Width3.9 mm
Fichas técnicas y documentos
Descargar fichas técnicas y documentación del fabricante para STMicroelectronics M24512-RMN6TP.
Cumplimiento
Clasificación ambiental
China RoHSCompliant
Lead FreeLead Free
Radiation HardeningNo
REACH SVHCYes
RoHSCompliant
