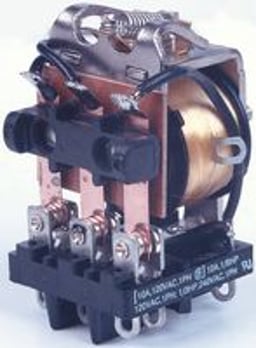

TE Connectivity 5-1393099-0
$ 59.65
Production
Preis und Lagerbestand
Autorisierte Distributoren
Nicht-autorisierte lagerhaltende Distributoren
Nicht autorisierte Händler
Bestandsverlauf
3-Monats-Trend: -13.69%
CAD-Modelle
Symbol, Footprint und 3D STEP herunterladen
Alternative Teile
0 Teile verfügbar
Lieferkette
Lifecycle StatusProduction (Last Updated: 4 years ago)
Manufacturer Lifecycle StatusACTIVE (Last Updated: 4 years ago)
Verwandte Teile
TE Connectivity9-1393101-6
Electromechanical Relay 120VAC 2.25KOhm 10A 3PDT(35.71x35.71)mm Socket General Purpose Relay
TE Connectivity / P&BKAP-14AG-120
Power Relays 120VAC 2.25KOhm 10A 3PDT(35.71x35.71x50.8)mm Socket General Purpose Relay
Beschreibungen
Beschreibungen von TE Connectivity 5-1393099-0, die von den Distributoren bereitgestellt werden.
Electromechanical Relay 120VAC 2.25KOhm 10A 3PDT (48.8x37.29x34.93)mm Socket General Purpose Relay
Power/Signal Relay, 3 Form C, 3PDT, Momentary, 2000mW (Coil), 10A (Contact), AC Input, AC Output, Panel Mount
KA-14AG-120=KA/KB/KC/KR Power Relay | Part Number: KA-14AG-120 | Internal Number: 5-1393099-0 | TE Connectivity
General Purpose Relays PLUG-IN RELAY 3PDT 120V QC
General Purpose Relay 10A 120VAC 3PDT
Cross Referenced to TE CONNECTIVITY CORP - Part AMP5-1393099-0
EM RLY 3PDT 10A 120VAC 2.25KOHM SCKT
RELAY GEN PURPOSE 3PDT 10A 120V
Industrial Relays (General Purpose)
POWER RELAY, 3PDT, 120VAC, 10A, PLUG IN; Product Range:TE - KA Series; Coil Voltage:120VAC; Contact Current:10A; Contact Voltage VAC:120V; Contact Voltage VDC:-; Contact Configuration:3PDT; Coil Resistance:2.25kohm; Carry Current:10A
Relay, 3Pdt, 120Vac, 10A; Contact Configuration:3Pdt; Coil Voltage:120Vac; Contact Current:10A; Product Range:Ka Series; Relay Mounting:Through Hole; Coil Type:Non Latching; Contact Voltage Vac:120Vac; Relay Terminals:Solder Rohs Compliant: Yes |Potter&brumfield Te Connectivity KA-14AG-120
Aliasnamen des Herstellers
TE Connectivity verfügt über mehrere Marken auf der ganzen Welt, die von Händlern als alternative Namen verwendet werden können. TE Connectivity ist möglicherweise auch unter den folgenden Namen bekannt:
- TYCO
- Tyco Electronics
- TE CONN
- TYC
- TE CONNECT
- TE CONNECTIVITY LTD
- TE Connectivity Aerospace Defense and Marine
- TYCO ELECTRONICS CORPORATION
- TE Connectivity Measurement Specialties
- TYCO ELECTRO
- TYCO ELEC
- TYCO ELECTRONICS CORP
- TYCO ELECTRONIC
- TE Connectivity Passive Product
- TE Application Tooling
- TYCO ELECT
- TYCO ELE
- TE CONNECTIVITY SENSORS
- TE CONNECTIVITY (TYCO)
- TE SENSOR SOLUTIONS
- TE CONNECTIV
- TE (Tyco)
- TE Connectivity /CGS Brand
- TE Connectivity Solutions GmbH
- TYCO POWER SYSTEMS
- Tyco Electronics
- TE
- TE Connectivty
Bestandsverlauf
3-Monats-Trend: -13.69%
CAD-Modelle
Symbol, Footprint und 3D STEP herunterladen
Alternative Teile
0 Teile verfügbar
Technische Spezifikationen
Physical
Case/Package120
Contact MaterialCadmium, Silver
MountChassis Mount, Panel, Socket
Number of Pins11
Weight84.708375 g
Technical
Coil Current17 mA
Coil Power2 W
Coil Resistance2.25 kΩ
Coil TypeNon-Latching
Coil Voltage (AC)120 V
Contact Current Rating10 A
Contact Voltage Rating (AC)240 V
Electrical Life10 Mcycles
Insulation Resistance100 MΩ
Max Current Rating10 A
Max Operating Temperature70 °C
Max Voltage Rating (AC)120 V
Min Operating Temperature-45 °C
Operate Time15 ms
PackagingBulk
Power Consumption2 W
Relay TypeGeneral Purpose
Release Time10 ms
Response Time15 ms
SealableRT0
TerminationSolder
Throw Configuration3PDT
Voltage Rating (AC)120 V
Dimensions
Depth37.29 mm
Height34.9 mm
Length48.8 mm
Width35.687 mm
Compliance
Umweltklassifizierung
China RoHSNon-Compliant
ELVNon-Compliant
REACH SVHCYes
RoHSCompliant
